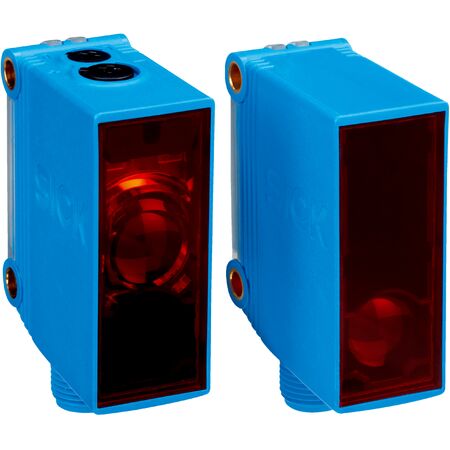

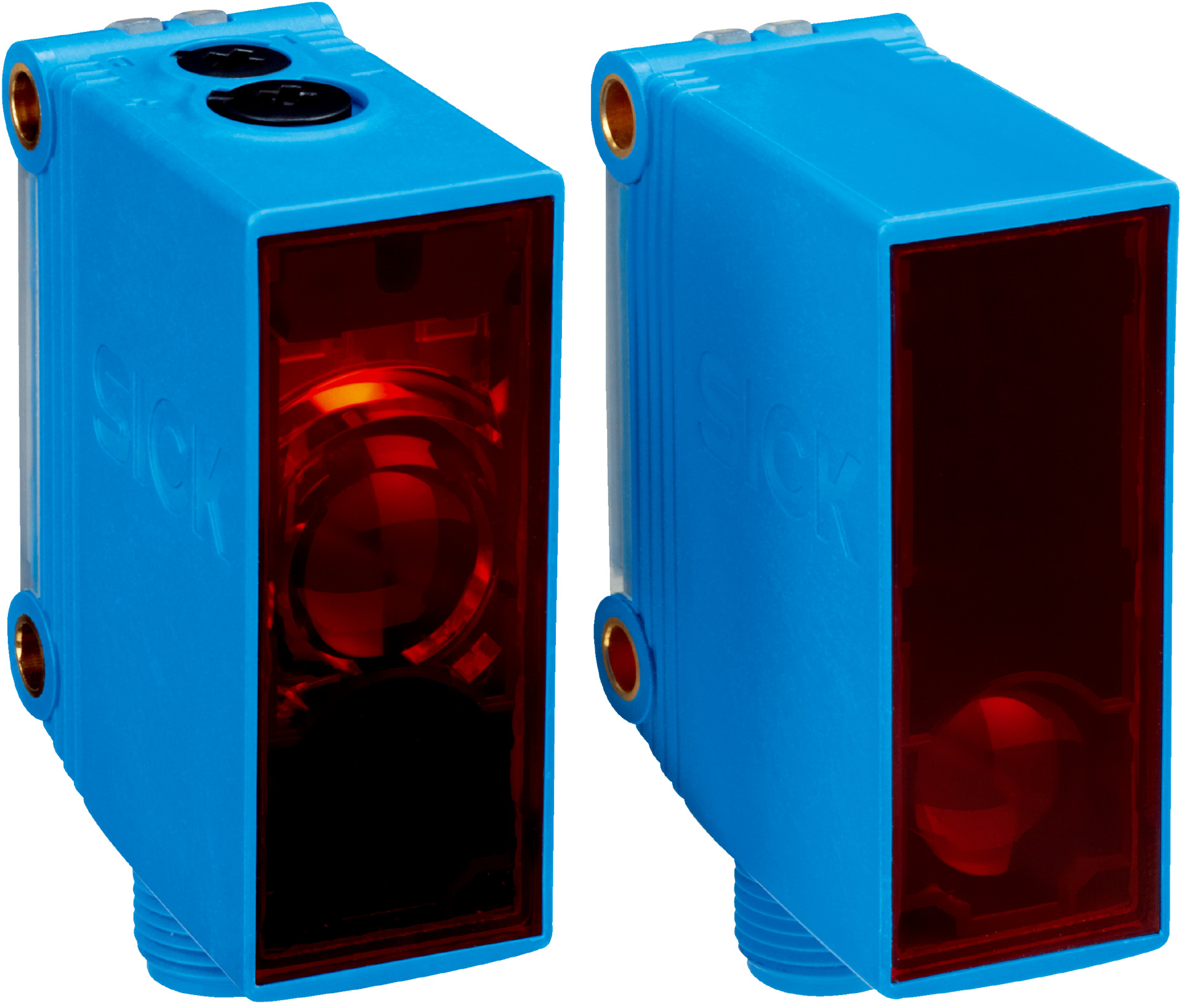

Through-beam Photoelectric Sensor GSE10-P4211 | IP67 Rated | 35m Sensing Range | 1000 Hz Switching Frequency | by SICK
The GSE10-P4211 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 35 meters and a high switching frequency of 1000 Hz. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for safety monitoring and object detection in manufacturing processes, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: Sender ≤ 15 mA, Receiver ≤ 20 mA
- Switching output: PNP with max output current ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Light source: PinPoint LED, wavelength 625 nm
- Light spot size at 15 m: Ø 180 mm
- Adjustment: Potentiometer 270°
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic ABS/PMMA
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- EMC standard: EN 60947-5-2
- Connector: Male M12, 4-pin
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Rectangular housing with visible red light emission
- Sensing range up to 35 meters
- PinPoint LED light source with 625 nm wavelength
- Adjustable potentiometer with 270° rotation
- High switching frequency of 1000 Hz
- IP67 rated enclosure for dust and water protection
- Male M12 4-pin connector for easy connection
- Light/dark switching mode selectable
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable housing reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK GSE10-P4211 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
