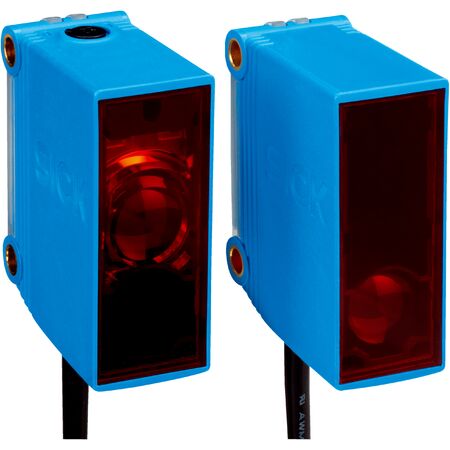

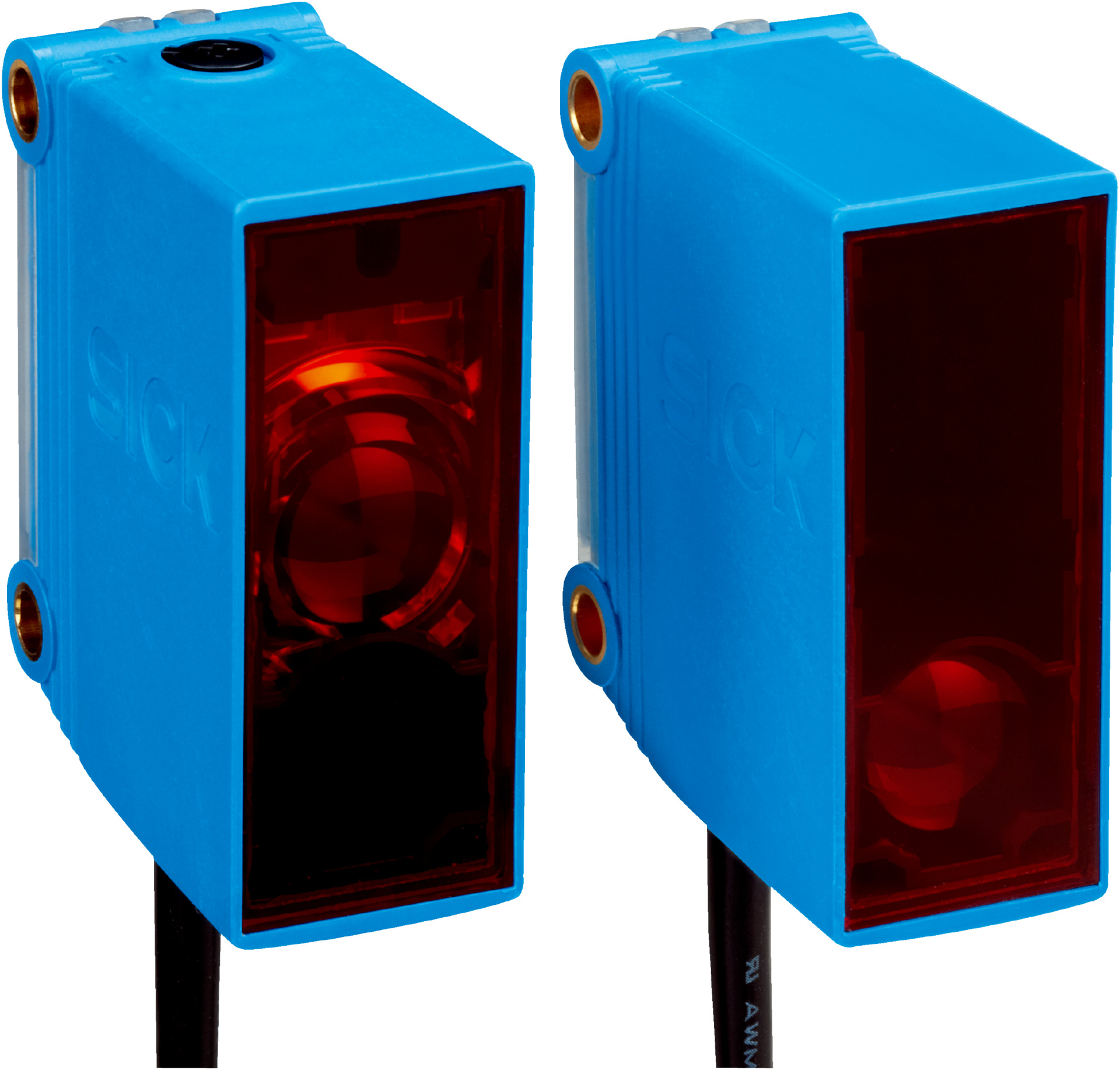

Through-beam Photoelectric Sensor GSE10-P7111 | IP67 Rated | 40m Sensing Range | Visible Red Light | by SICK
The GSE10-P7111 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 40 meters and a robust IP67 enclosure. With a fast response time of ≤ 500 µs and a selectable light/dark switching mode, it’s perfect for safety and monitoring in manufacturing processes. Built with a durable ABS/PMMA housing, this sensor ensures reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 40 m
- Type of light: Visible red light
- Light source: PinPoint LED
- Light spot size at 15 m: Ø 180 mm
- Wave length: 625 nm
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Power consumption sender: ≤ 15 mA
- Power consumption receiver: ≤ 20 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Connection type: Cable with M12 male connector, 4-pin, 300 mm
- Cable material: Plastic, PVC
- Conductor cross section: 0.14 mm²
- Circuit protection: A, B, C, D
- Protection class: III
- Housing material: Plastic, ABS/PMMA
- Enclosure rating: IP67
- EMC standard: EN 60947-5-2
- Operating temperature: –30 °C to +60 °C
- Storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.13 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 35 meters
- Rectangular housing design with IP67 enclosure rating
- PinPoint LED light source with 625 nm wavelength
- Selectable light/dark switching mode
- Fast response time of ≤ 500 µs and switching frequency of 1,000 Hz
- Cable with M12 male connector, 4-pin, 300 mm length
- Robust plastic ABS/PMMA housing material
- Wide ambient operating temperature range from –30 °C to +60 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with ≤ 15 mA sender and ≤ 20 mA receiver
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GSE10-P7111 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
