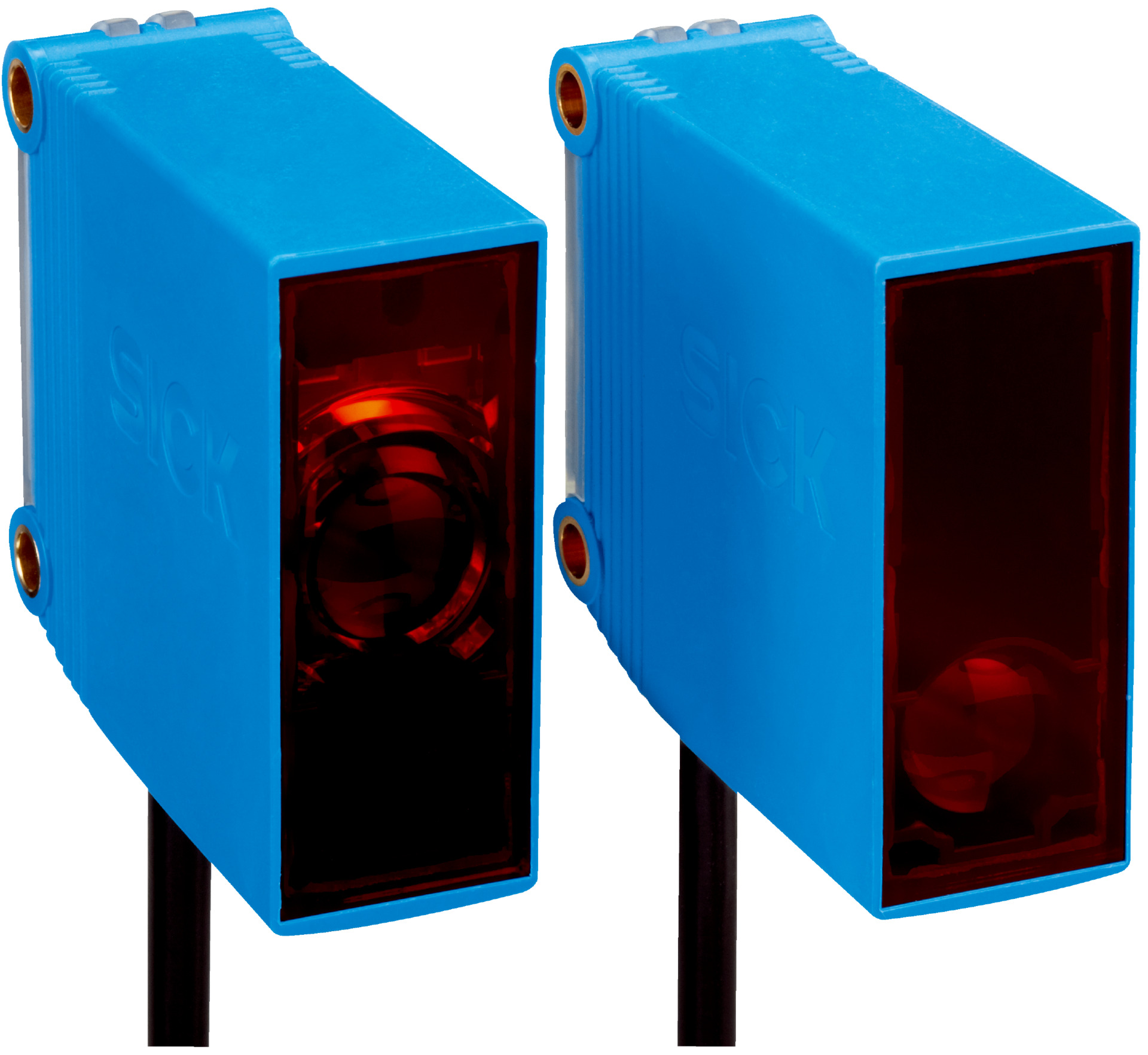

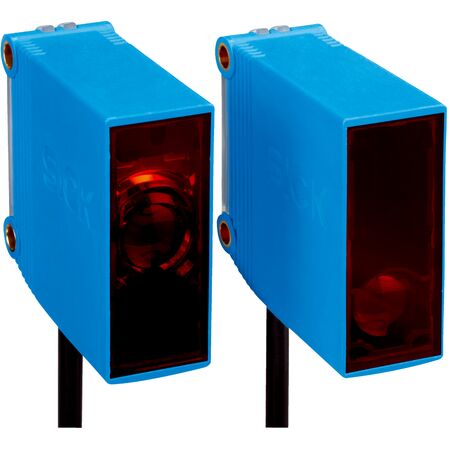

Through-beam Photoelectric Sensor GSE10-R3711 | IP67 Rated | 35m Sensing Range | Relay SPDT Output | by SICK
The GSE10-R3711 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a robust IP67 rating and a sensing range of up to 35 meters. With a relay SPDT output and a fast response time of ≤ 10 ms, it ensures reliable object detection and safety monitoring in manufacturing processes. Ideal for material handling and packaging systems, this sensor is built to withstand harsh environments while maintaining low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 24 V AC/DC to 240 V AC/DC
- Power consumption sender: ≤ 2 VA
- Power consumption receiver: ≤ 2.5 VA
- Switching output: Relay, SPDT, electrically isolated
- Switching load max: 0.11 A (250 V DC), 3 A (30 V DC), 3 A (250 V AC)
- Response time: ≤ 10 ms
- Switching frequency: 20 Hz
- Cable type: 5-wire, 2 m length, PVC insulation
- Protection class: II
- Housing material: Plastic ABS/PMMA
- Enclosure rating: IP67
- Relay switching cycles minimum: 100,000 cycles
- EMC standards: EN 60947-5-2, EN 61000-6-3
- Operating temperature: -30°C to +60°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 50mm x 52mm x 20mm
- Weight: 0.23 kg
Key Features
- Through-beam photoelectric sensing principle
- Rectangular housing with visible red light emission
- Sensing range up to 35 meters
- PinPoint LED light source with 625 nm wavelength
- Relay SPDT electrically isolated switching output
- Light/dark switching mode
- High protection rating IP67 for harsh environments
- Wide ambient operating temperature range from -30°C to +60°C
- Cable connection with 5-wire, 2 m length
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK GSE10-R3711 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
