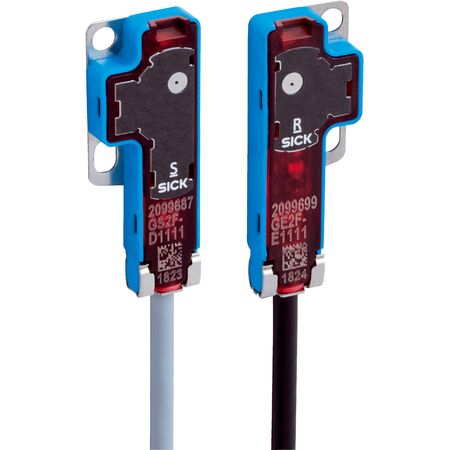

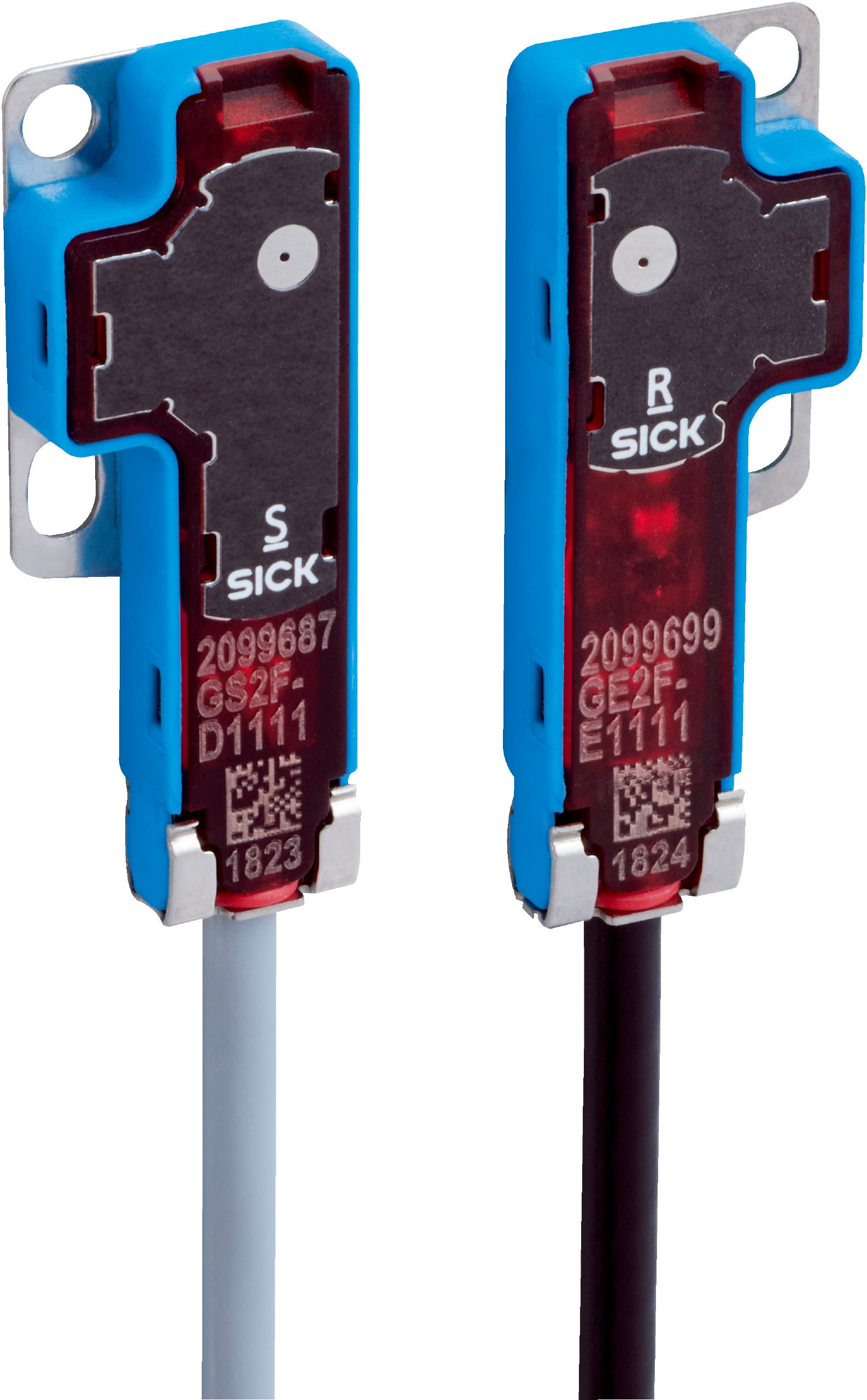

Through-Beam Photoelectric Sensor GSE2F-P5111 | IP67 Rated | 800 Hz Switching Frequency | 0.2 mm Minimum Detectable Size | by SICK
The GSE2F-P5111 Through-beam Photoelectric Sensor is designed for precise object detection in industrial automation. With a high switching frequency of 800 Hz and an IP67 rated enclosure, it ensures reliable performance in challenging environments. Ideal for manufacturing process control and packaging systems, this sensor features a minimum detectable object size of just 0.2 mm, making it perfect for applications requiring high accuracy.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, light switching mode
- Output current max: ≤ 50 mA
- Response time: < 0.625 ms
- Switching frequency: 800 Hz
- Cable diameter: Ø 2.3 mm, material: PVC
- Repeatability (Tanot constant): 0.1 mm
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Enclosure rating: IP67
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, MABS
- Dimensions (H x L x W): 27mm x 3.5mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Minimum detectable object size of 0.2 mm
- Sensing range up to 40 mm (max 60 mm)
- PinPoint LED light source with 660 nm wavelength
- High switching frequency of 800 Hz
- IP67 rated enclosure for dust and water protection
- Plastic VISTAL® housing and MABS optics material
- Cable with M8 3-pin connector, 200 mm length
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 housing reduces waste by extending product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GSE2F-P5111 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
