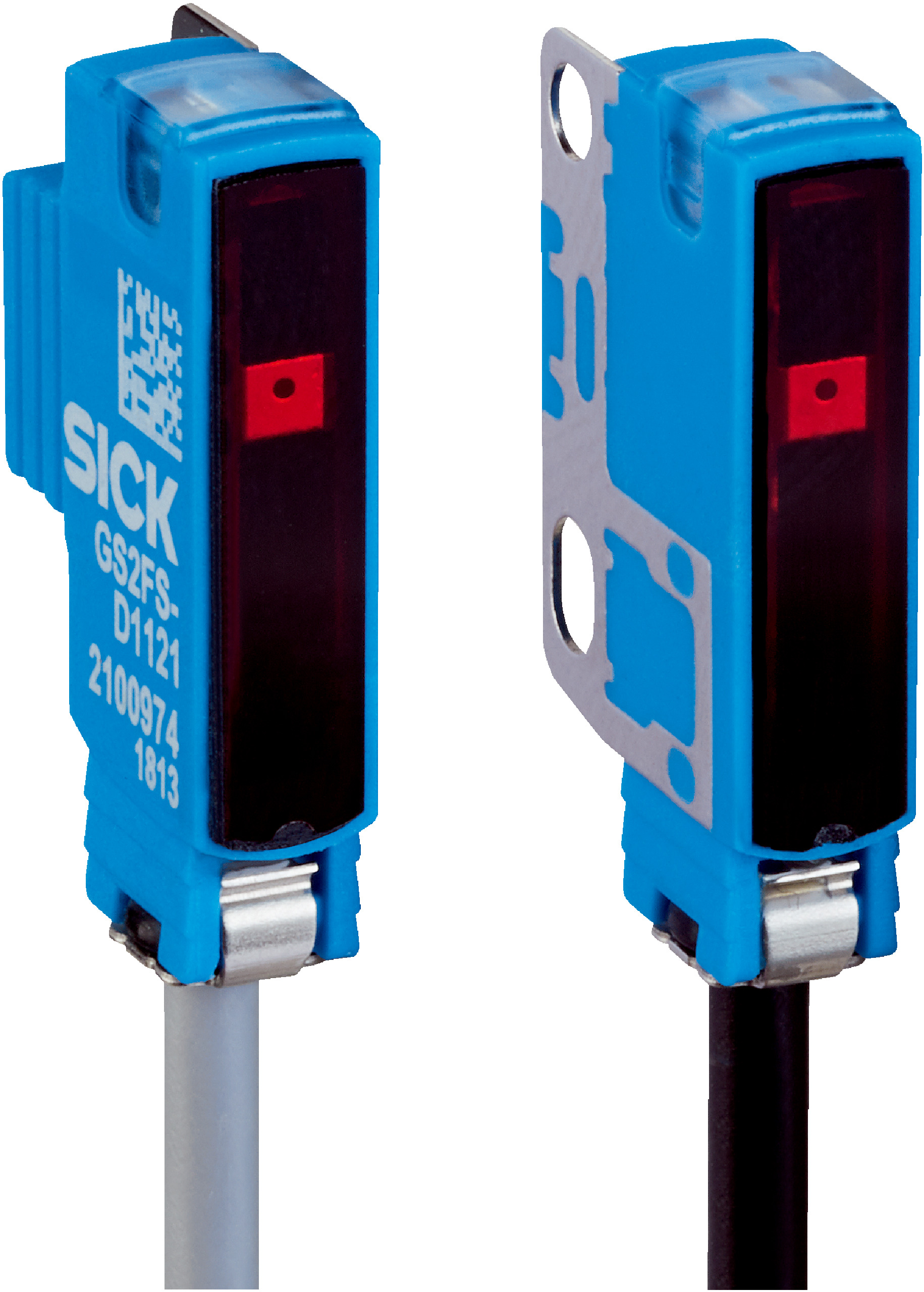

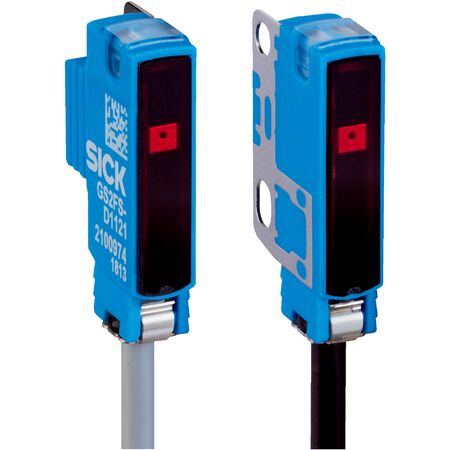

Through-Beam Photoelectric Sensor GSE2FS-E5121 | IP67 Rated | Fast Response Time | NPN Output | by SICK
The GSE2FS-E5121 Through-beam Photoelectric Sensor is designed for precise object detection in industrial automation. With a sensing range of up to 150 mm and a fast response time of under 0.625 ms, it ensures reliable performance in manufacturing and packaging applications. Its IP67 rated enclosure provides excellent protection against dust and water, making it ideal for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: NPN, dark switching
- Output current max: ≤ 50 mA
- Response time: < 0.625 ms
- Switching frequency: 800 Hz
- Light source: PinPoint LED, wavelength 660 nm
- Light spot size: Ø 15 mm at 150 mm distance
- Cable: 3-pin M8 connector, 200 mm length, PVC material
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, MABS
- Enclosure rating: IP67
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Repeatability: 0.1 mm
- Dimensions (H x L x W): 21mm x 11mm x 4.5mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Minimum detectable object size of 0.5 mm
- Sensing range up to 150 mm
- Rectangular housing design with PinPoint LED light source
- High switching frequency of 800 Hz and fast response time under 0.625 ms
- IP67 rated enclosure for dust and water protection
- Dark switching mode with NPN output
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of 20 mA reduces energy usage
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK GSE2FS-E5121 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
