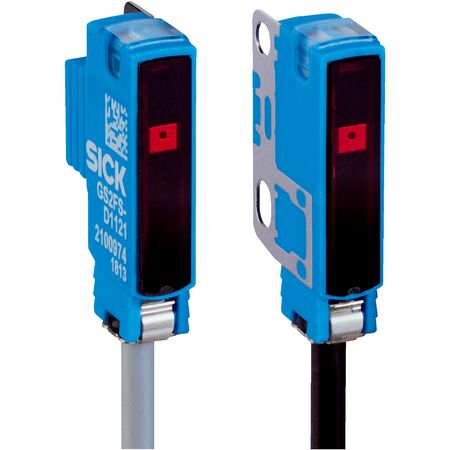

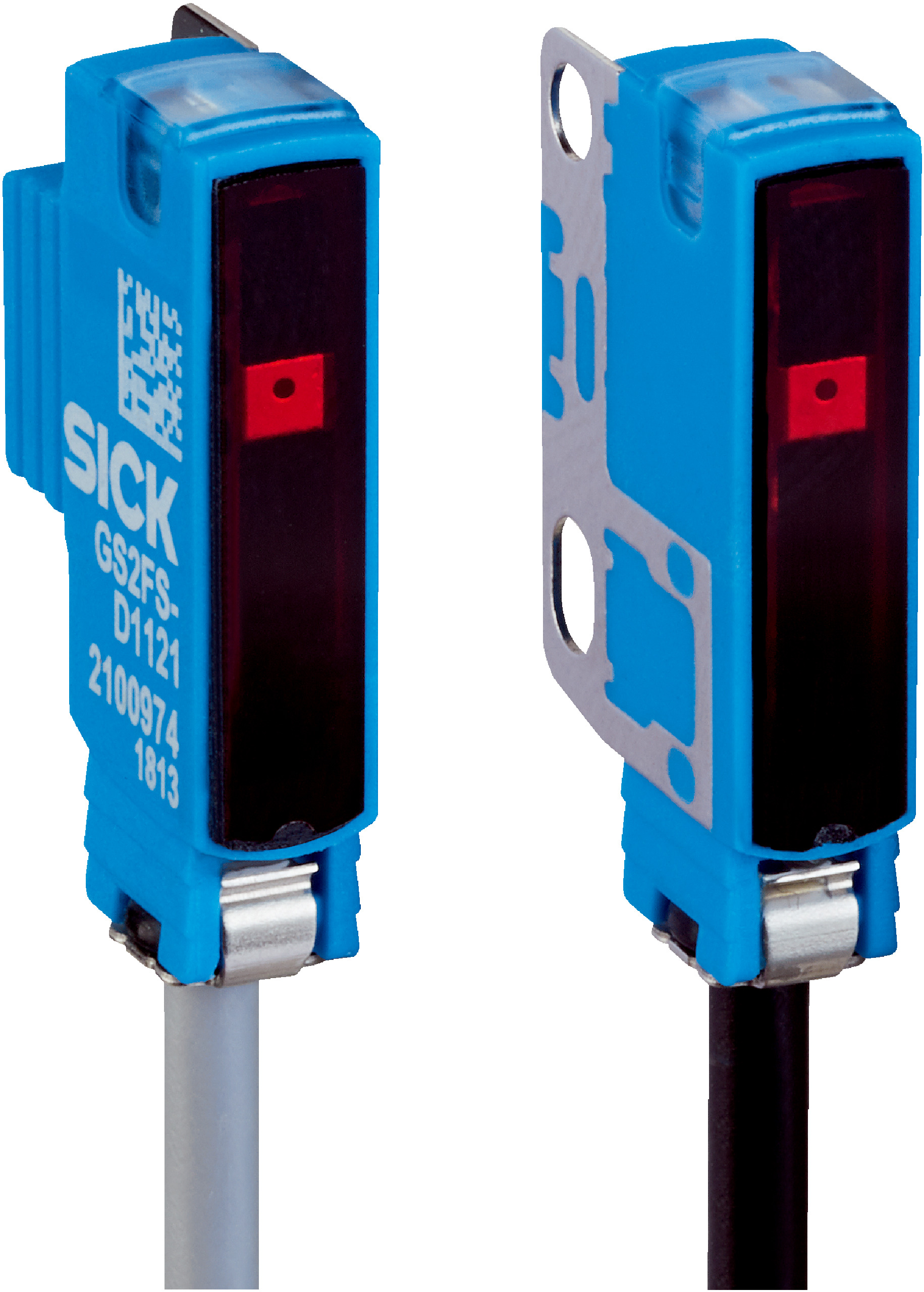

Through-beam Photoelectric Sensor GSE2FS-N1111 | IP67 Rated | 800 Hz Switching Frequency | 660 nm Wavelength | by SICK
The GSE2FS-N1111 Through-beam Photoelectric Sensor is designed for precise object detection in industrial automation. With a sensing range of up to 60 mm and a high switching frequency of 800 Hz, it ensures reliable performance in manufacturing and quality control applications. Its compact design and IP67 rating provide excellent dust and water protection, making it ideal for various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: NPN, light switching mode
- Maximum output current: ≤ 50 mA
- Response time: < 0.625 ms
- Switching frequency: 800 Hz
- Cable: 3-wire, 2 m length, PVC material, 2.3 mm diameter
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, MABS
- Enclosure rating: IP67
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Repeatability: 0.1 mm
- Light spot size at 40 mm distance: Ø 4 mm
- Wave length: 660 nm
- Dimensions (H x L x W): 21mm x 11mm x 4.5mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Minimum detectable object size of 0.2 mm
- Sensing range up to 60 mm
- PinPoint LED light source with 660 nm wavelength
- High switching frequency of 800 Hz
- IP67 rated enclosure for dust and water protection
- Compact rectangular housing design
- Cable connection with 3-wire, 2 m PVC cable
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Quality control and inspection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK GSE2FS-N1111 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
