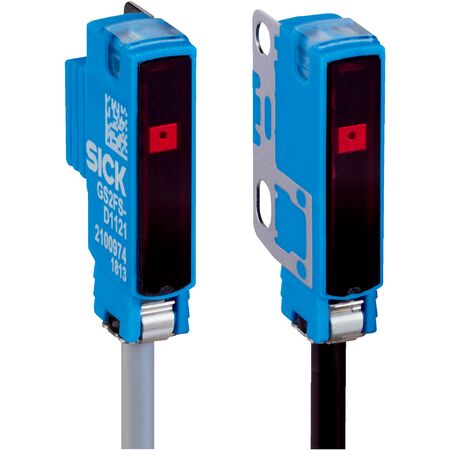

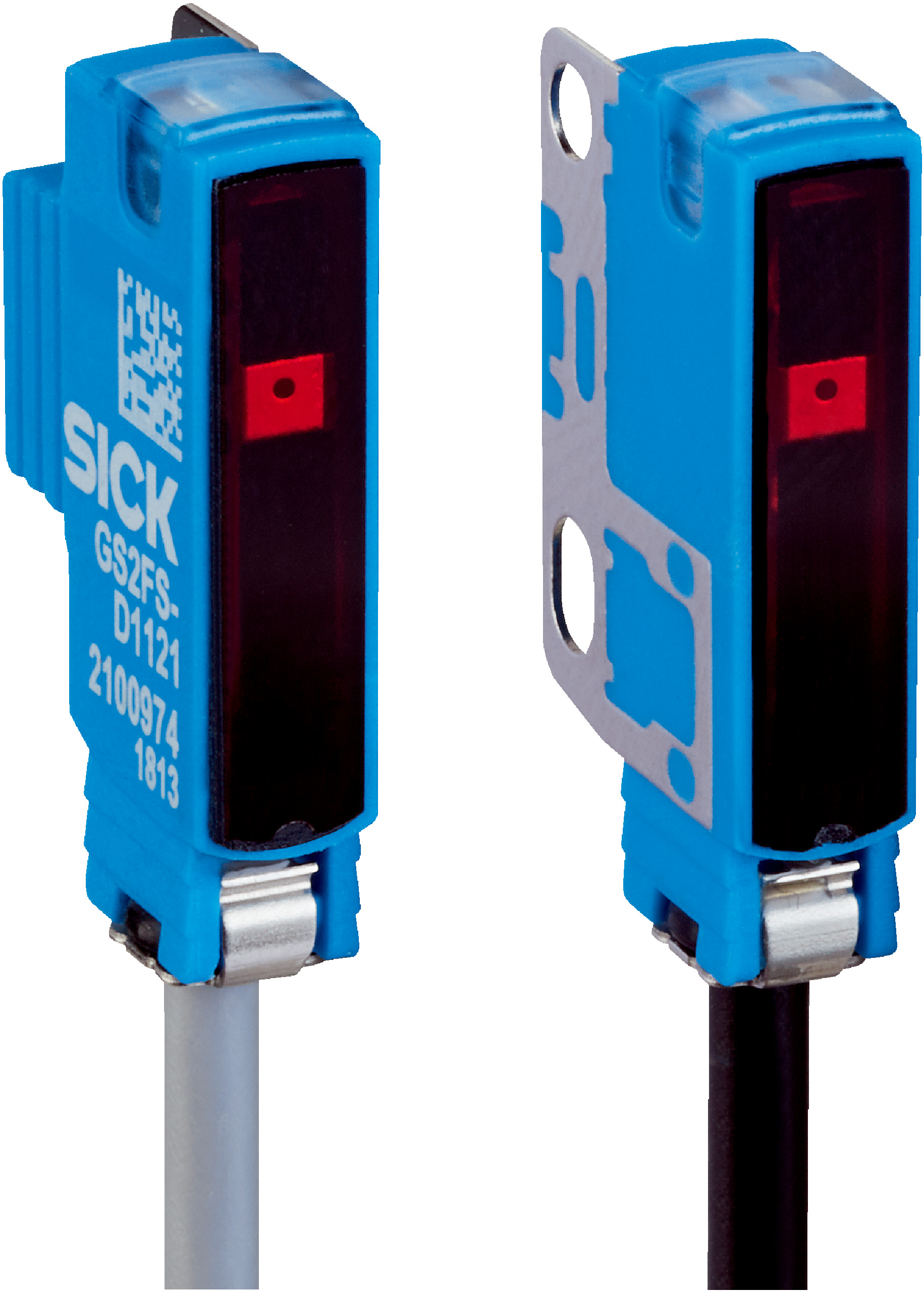

Through-beam Photoelectric Sensor GSE2FS-N1151 | IP67 Rated | 800 Hz Switching Frequency | 500 mm Sensing Range | by SICK
The GSE2FS-N1151 Through-beam Photoelectric Sensor is designed for precise object detection in industrial automation. With a sensing range of up to 500 mm and a high switching frequency of 800 Hz, it ensures reliable performance in manufacturing and packaging applications. Its durable IP67 rated enclosure protects against dust and water, making it ideal for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: NPN, light switching mode
- Maximum output current: ≤ 50 mA
- Response time: < 0.625 ms
- Switching frequency: 800 Hz
- Cable: 3-wire, 2 m length, PVC material, 2.3 mm diameter
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, MABS
- Enclosure rating: IP67
- Operating temperature: -20°C to +50°C
- Storage temperature: -40°C to +70°C
- Repeatability: 0.1 mm
- MTTFD: 941 years
- Mission time: 20 years
- Dimensions (H x L x W): 21mm x 11mm x 4.5mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Rectangular housing design with visible red light
- Minimum detectable object size of 1 mm
- Sensing range up to 500 mm
- PinPoint LED light source with 660 nm wavelength
- High switching frequency of 800 Hz
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -20°C to +50°C
- Cable connection with 3-wire, 2 m length
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 housing reduces waste by extending product life
- Compliant with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GSE2FS-N1151 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
