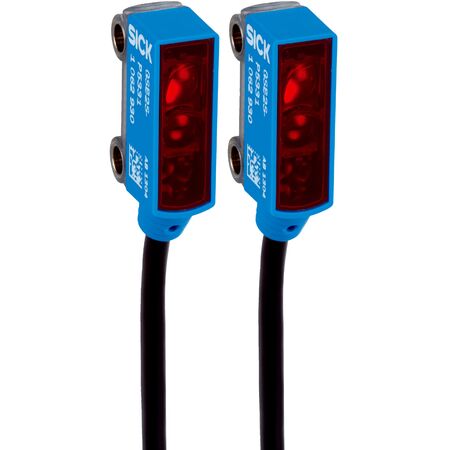

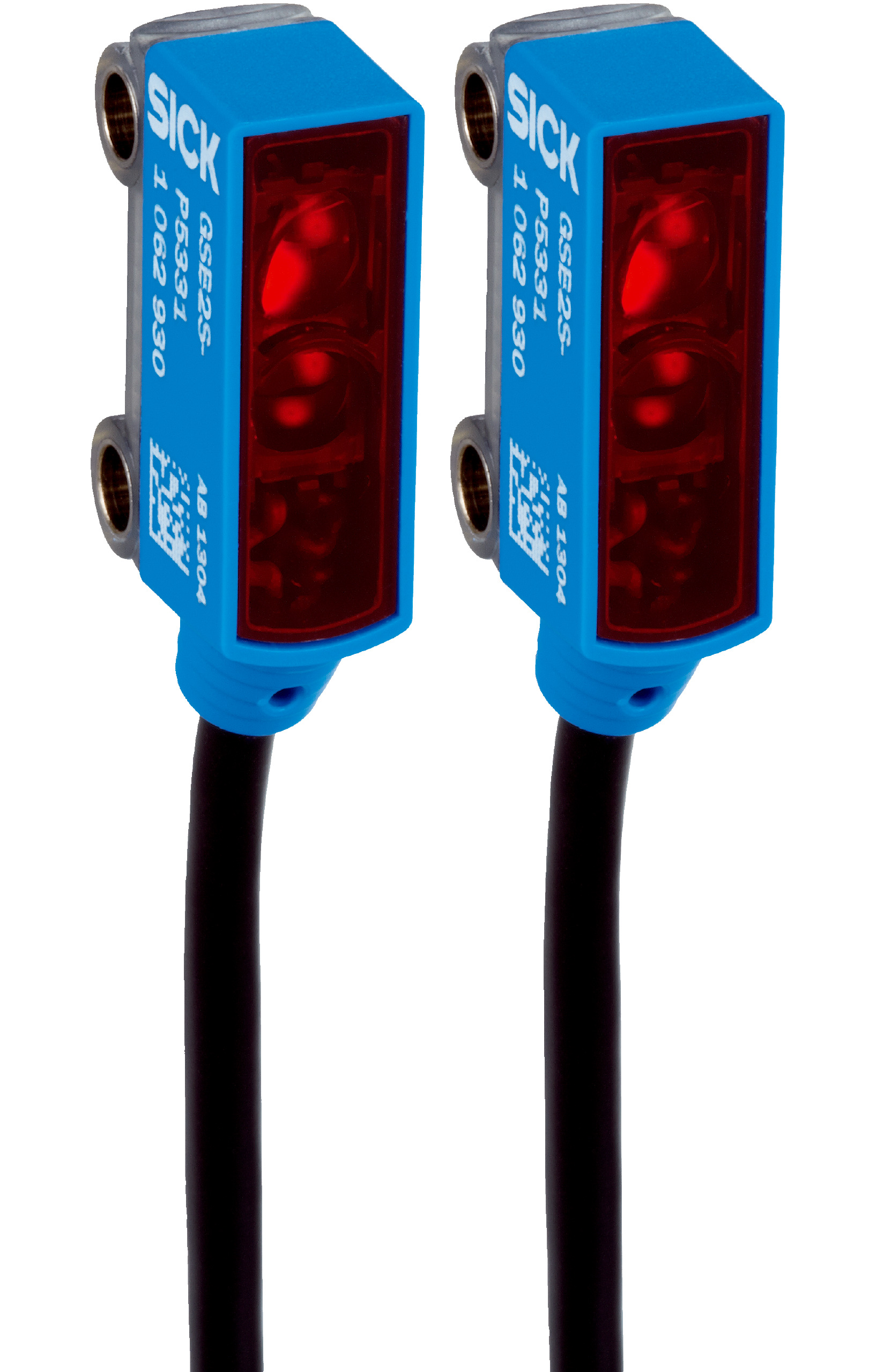

Through-Beam Photoelectric Sensor GSE2S-E0311S07 | IP67 Rated | Fast Response Time | 1.5m Sensing Range | by SICK
The GSE2S-E0311S07 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 1.5 meters and a fast response time of under 0.6 ms. With an IP67 rated enclosure, it ensures reliable performance in dusty and wet environments, making it ideal for safety and monitoring applications in manufacturing and material handling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: NPN, dark switching mode
- Output current max: ≤ 50 mA
- Response time: < 0.6 ms
- Switching frequency: 800 Hz
- Light source: PinPoint LED, wavelength 640 nm
- Light spot size: Ø 23 mm at 500 mm distance
- Cable: 3-wire PVC cable with 3M connector, 250 mm length
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25°C to +50°C
- Storage temperature: -40°C to +75°C
- Weight: 72.2 g
- Dimensions (H x L x W): 21.8mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 1.5 meters
- Rectangular housing design with PinPoint LED light source
- High switching frequency of 800 Hz and fast response time under 0.6 ms
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +50°C
- Cable with special 3M connector included
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 housing reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GSE2S-E0311S07 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
