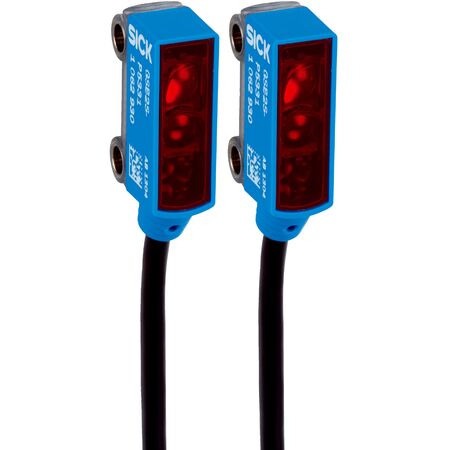

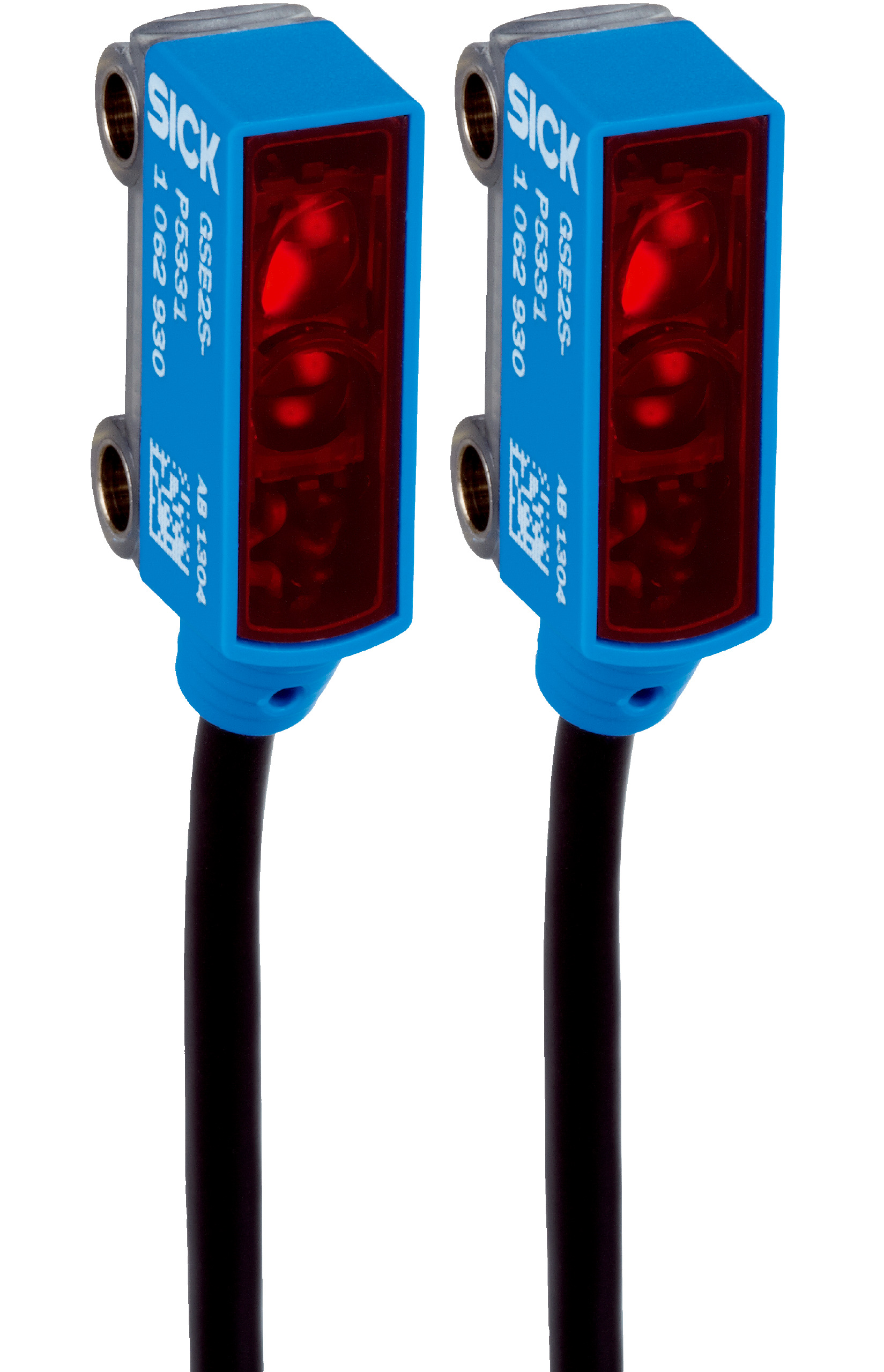

Through-Beam Photoelectric Sensor GSE2S-E0311S10 | IP67 Rated | Fast Response Time | NPN Output | by SICK
The GSE2S-E0311S10 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 1.5 meters and a fast response time of under 0.6 ms. With an IP67 enclosure rating, it ensures durability in harsh environments, making it ideal for safety and monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: NPN, dark switching
- Output current max: ≤ 50 mA
- Response time: < 0.6 ms
- Switching frequency: 800 Hz
- Light source: PinPoint LED, 640 nm wavelength
- Light spot size: Ø 23 mm at 500 mm distance
- Cable: TPU, Ø 3 mm diameter, 250 mm length
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -30 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Dimensions (H x L x W): 22mm x 14mm x 8mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 1.5 meters
- Rectangular housing design with IP67 enclosure rating
- Fast response time under 0.6 ms and switching frequency of 800 Hz
- Cable with TPU material and JST connector for sender and receiver
- Dark switching mode with NPN output
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 rated housing reduces waste from damage
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK GSE2S-E0311S10 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
