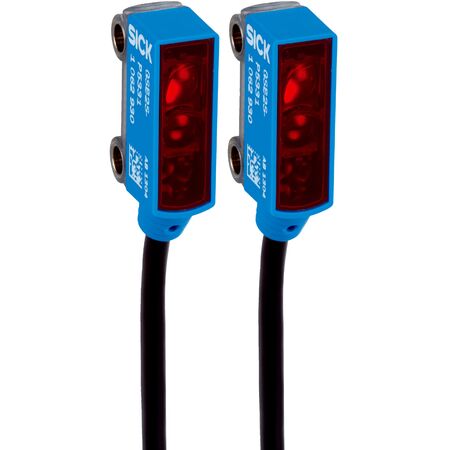

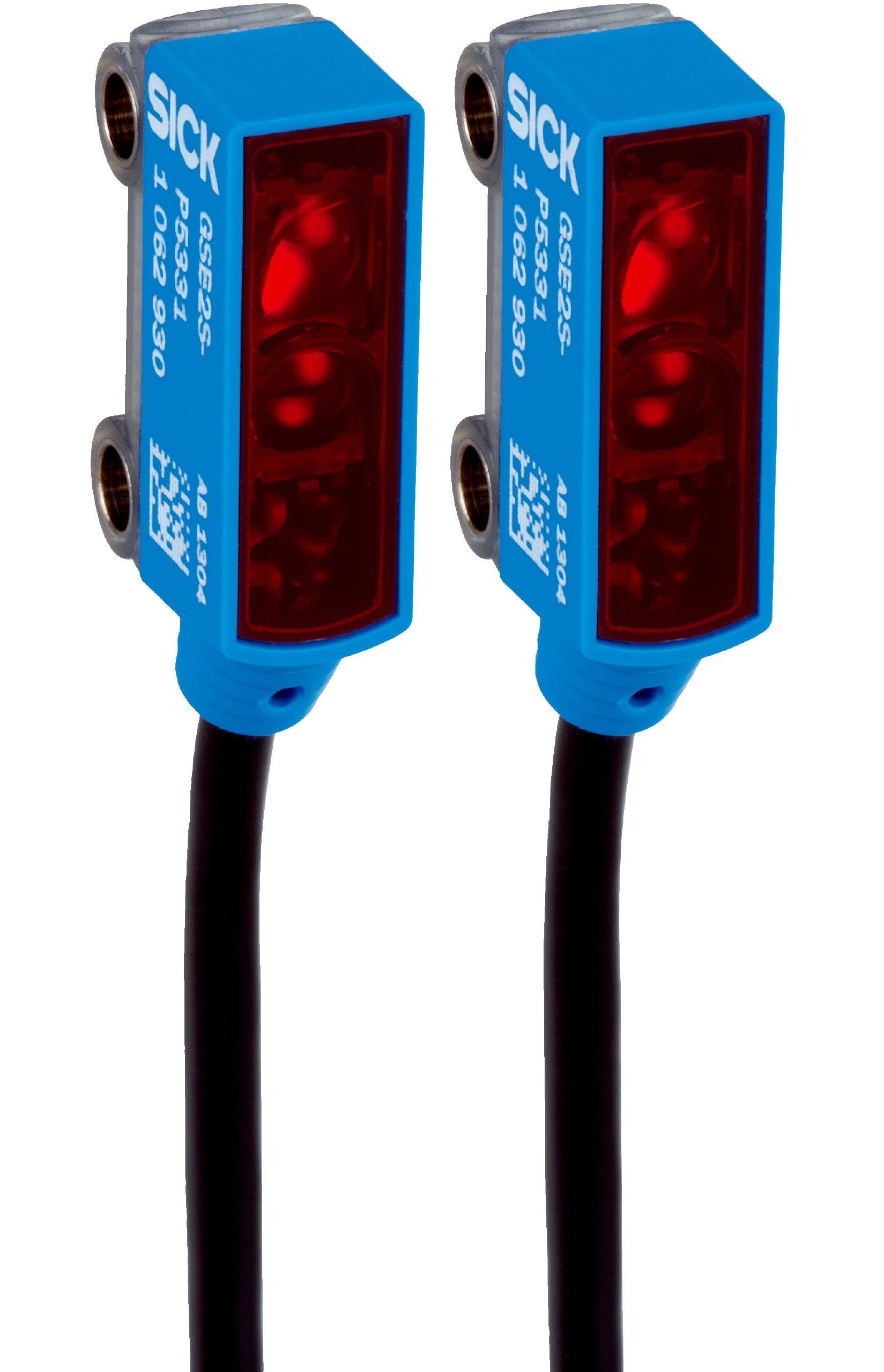

Through-beam Photoelectric Sensor GSE2S-E5311 | IP67 Rated | 800 Hz Switching Frequency | Compact Design | by SICK
The GSE2S-E5311 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 1.5 meters and a high switching frequency of 800 Hz. With its robust IP67 rated enclosure, this sensor ensures reliable performance in dust and water-prone environments, making it ideal for manufacturing process control and safety monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: NPN, dark switching
- Maximum output current: ≤ 50 mA
- Response time: < 0.6 ms
- Switching frequency: 800 Hz
- Light source: PinPoint LED, 640 nm wavelength
- Light spot size: Ø 23 mm at 500 mm distance
- Connection: Cable with M8 3-pin connector, 200 mm length
- Cable material: Plastic PVC, diameter 3 mm
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Weight: 39.7 g
- Dimensions (H x L x W): 22mm x 14mm x 8mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Compact rectangular housing design
- Sensing range up to 1.5 meters
- PinPoint LED light source with 640 nm wavelength
- High switching frequency of 800 Hz
- IP67 rated enclosure for dust and water protection
- Dark switching mode with NPN output
- Robust plastic ABS housing and PMMA optics
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of 20 mA reduces energy usage
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK GSE2S-E5311 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
