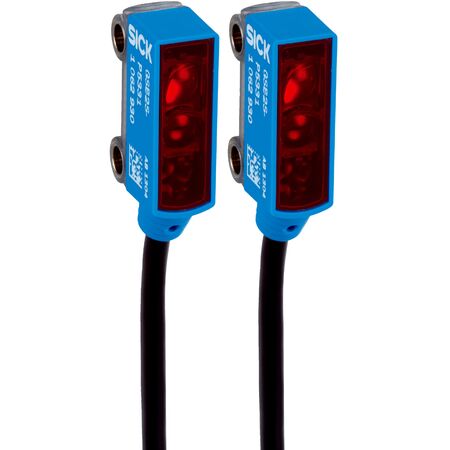

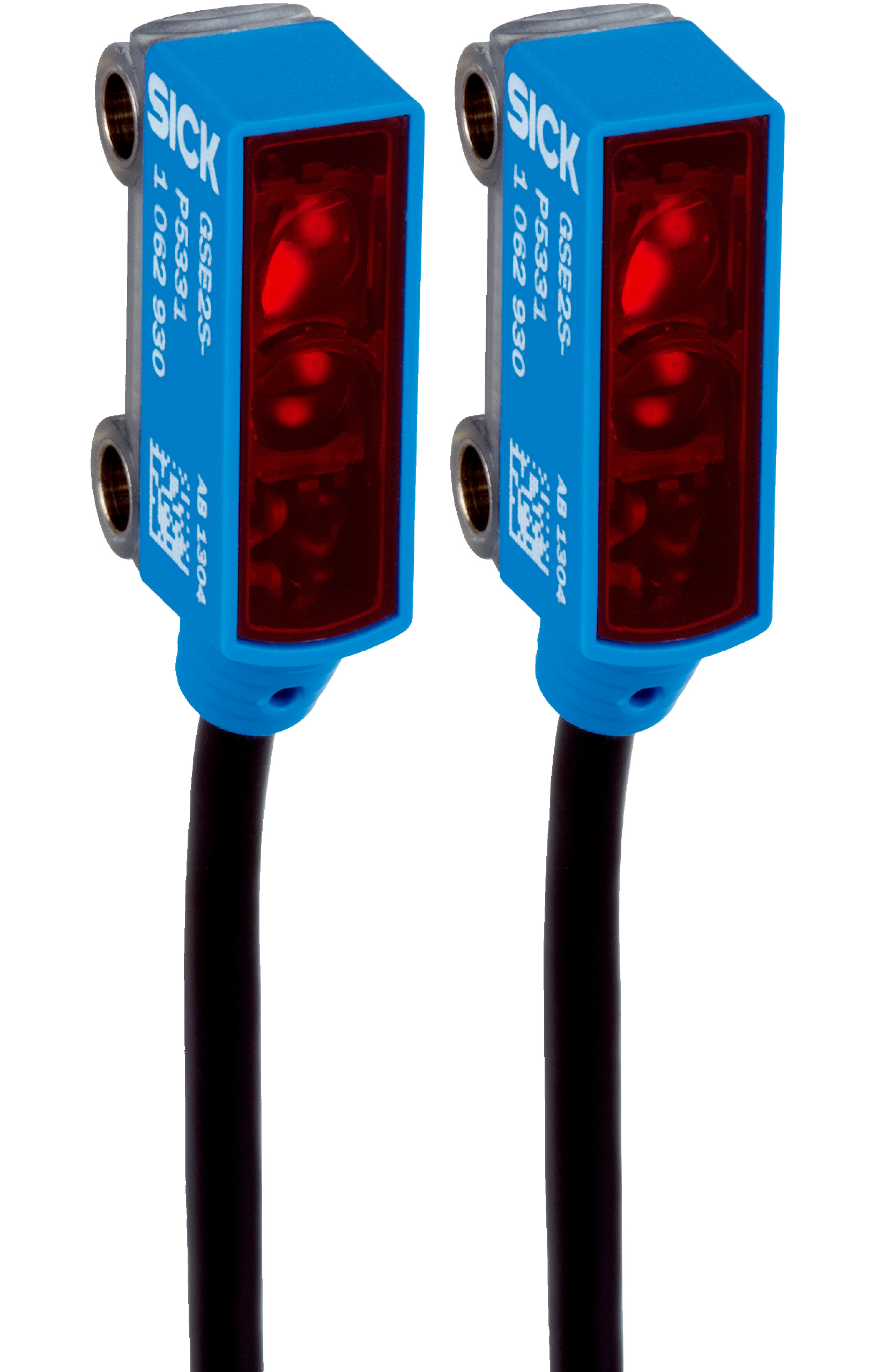

Through-beam Photoelectric Sensor GSE2S-F5311 | IP67 Rated | Fast Response Time | PNP Output | by SICK
The GSE2S-F5311 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 1.5 meters and a fast response time of under 0.6 ms. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, dark switching
- Output current max: ≤ 50 mA
- Response time: < 0.6 ms
- Switching frequency: 800 Hz
- Light source: PinPoint LED, 640 nm wavelength
- Light spot size: Ø 23 mm at 500 mm distance
- Connection: Cable with M8, 3-pin connector, 200 mm length
- Cable material: Plastic, PVC
- Enclosure rating: IP67
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Dimensions (H x L x W): 22mm x 14mm x 8mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Rectangular housing design with visible red light
- Sensing range up to 1.5 meters
- PinPoint LED light source with 640 nm wavelength
- Fast response time under 0.6 ms
- High switching frequency of 800 Hz
- IP67 rated enclosure for dust and water protection
- Dark switching mode with PNP output
- Cable with M8 3-pin connector included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable ABS and PMMA plastic housing extends product life
- IP67 rating ensures long-term reliability reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK GSE2S-F5311 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
