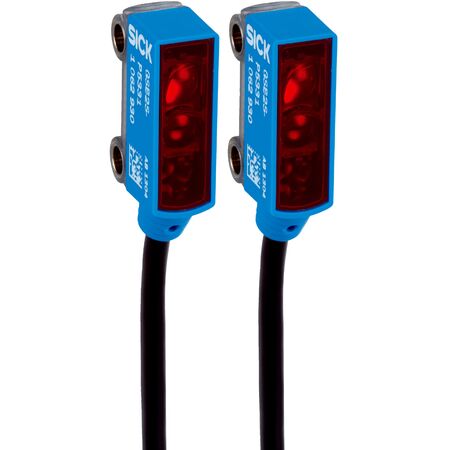

Through-beam Photoelectric Sensor GSE2S-N1311 | IP67 Rated | Fast Response Time | 1.5m Sensing Range | by SICK
The GSE2S-N1311 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 1.5 meters and a fast response time of under 0.6 ms. With its robust IP67-rated housing, this sensor is perfect for object detection and safety monitoring in manufacturing processes, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: NPN, max output current ≤ 50 mA
- Response time: < 0.6 ms
- Switching frequency: 800 Hz
- Light source: PinPoint LED, 640 nm wavelength
- Light spot size: Ø 23 mm at 500 mm distance
- Enclosure rating: IP67
- Operating temperature range: -25 °C to +50 °C
- Storage temperature range: -40 °C to +75 °C
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Cable: 3-wire, 2 m length, PVC, Ø 3 mm
- Dimensions (H x L x W): 22mm x 14mm x 8mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 1.5 meters
- PinPoint LED light source with 640 nm wavelength
- Fast response time under 0.6 ms and switching frequency of 800 Hz
- Robust plastic ABS housing with IP67 rating for dust and water protection
- Cable connection with 3-wire, 2 m PVC cable
- Circuit protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GSE2S-N1311 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
