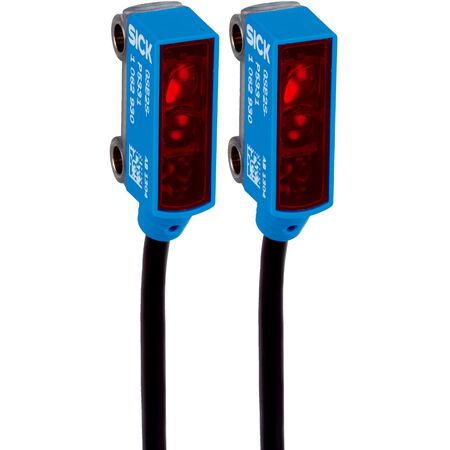

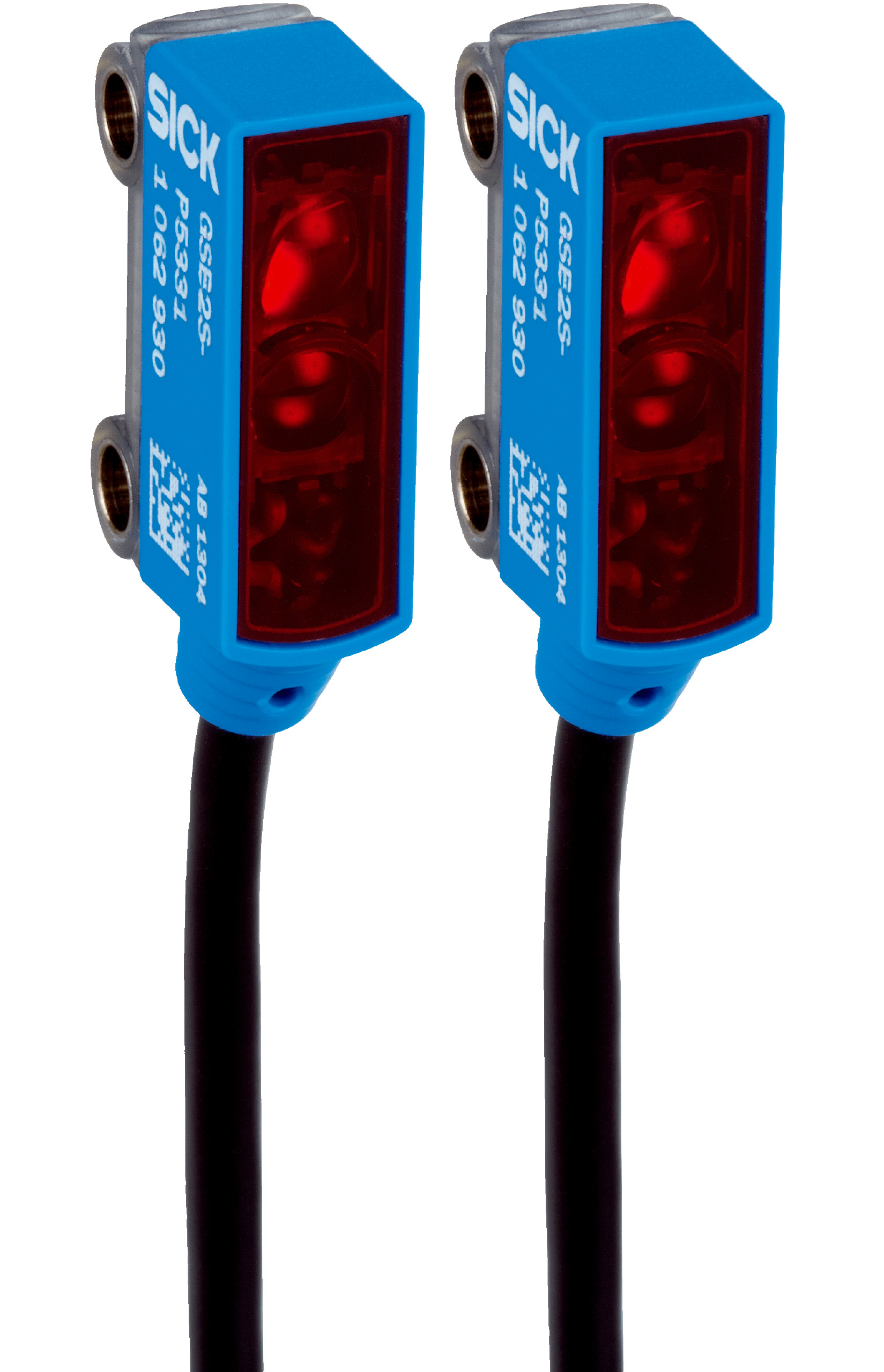

Through-Beam Photoelectric Sensor GSE2S-N2311 | IP67 Rated | Fast Response Time | 1.5m Sensing Range | by SICK
The GSE2S-N2311 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 1.5 meters and a fast response time of under 0.6 ms. With its durable IP67 rated housing and PinPoint LED light source, this sensor is perfect for object detection and manufacturing process control, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 1.5 m
- Light source: PinPoint LED, 640 nm wavelength
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: NPN, light/dark switching
- Output current max: ≤ 50 mA
- Response time: < 0.6 ms
- Switching frequency: 800 Hz
- Connection type: 4-wire cable, 2 m length
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Dimensions (H x L x W): 22mm x 14mm x 8mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 1.5 meters
- PinPoint LED light source with 640 nm wavelength
- Rectangular plastic ABS housing with IP67 rating
- Fast response time under 0.6 ms and switching frequency of 800 Hz
- NPN switching output with light/dark switching mode
- Cable connection with 4-wire, 2 m PVC cable
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 rated housing reduces waste from damage
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK GSE2S-N2311 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control.
