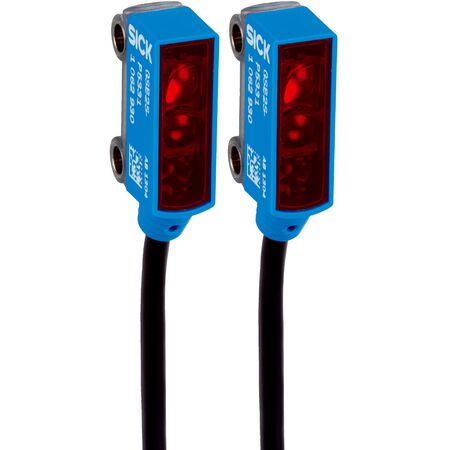

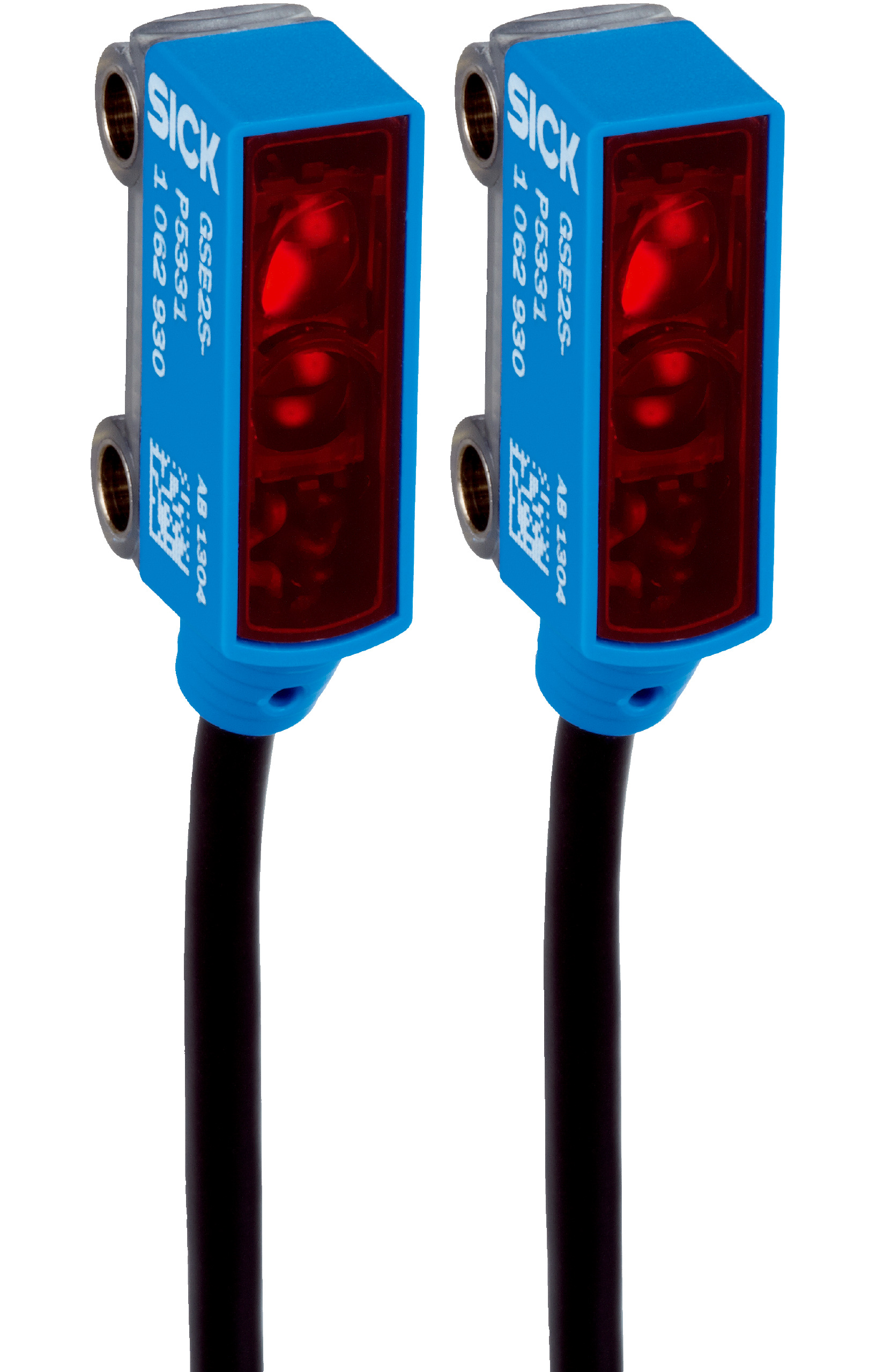

Through-Beam Photoelectric Sensor GSE2S-P1311 | IP67 Rated | Fast Response Time | 1.5m Sensing Range | by SICK
The GSE2S-P1311 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 1.5 meters and a fast response time of under 0.6 ms. With its robust IP67 rated housing, this sensor ensures reliable performance in harsh environments, making it ideal for safety and monitoring applications in manufacturing and material handling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, max output current ≤ 50 mA
- Response time: < 0.6 ms
- Switching frequency: 800 Hz
- Light source: PinPoint LED, wavelength 640 nm
- Light spot size: Ø 23 mm at 500 mm distance
- Enclosure rating: IP67
- Operating temperature: -25°C to +50°C
- Cable: 3-wire, 2 m length, PVC material
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Dimensions (H x L x W): 22mm x 14mm x 8mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 1.5 meters
- PinPoint LED light source with 640 nm wavelength
- Fast response time under 0.6 ms and switching frequency of 800 Hz
- Robust plastic ABS housing with IP67 rating for dust and water protection
- Cable connection with 3-wire, 2 m PVC cable
- Operating temperature range from -25°C to +50°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of 20 mA reduces energy usage
- Durable IP67 rated housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GSE2S-P1311 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
