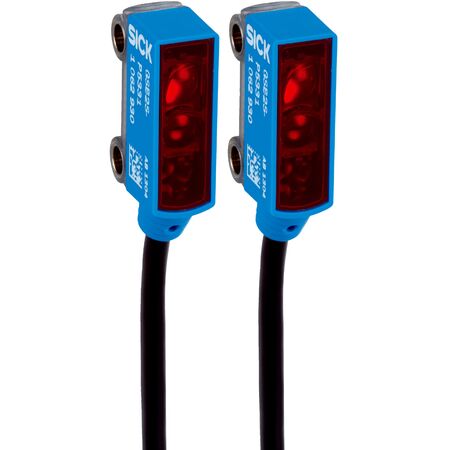

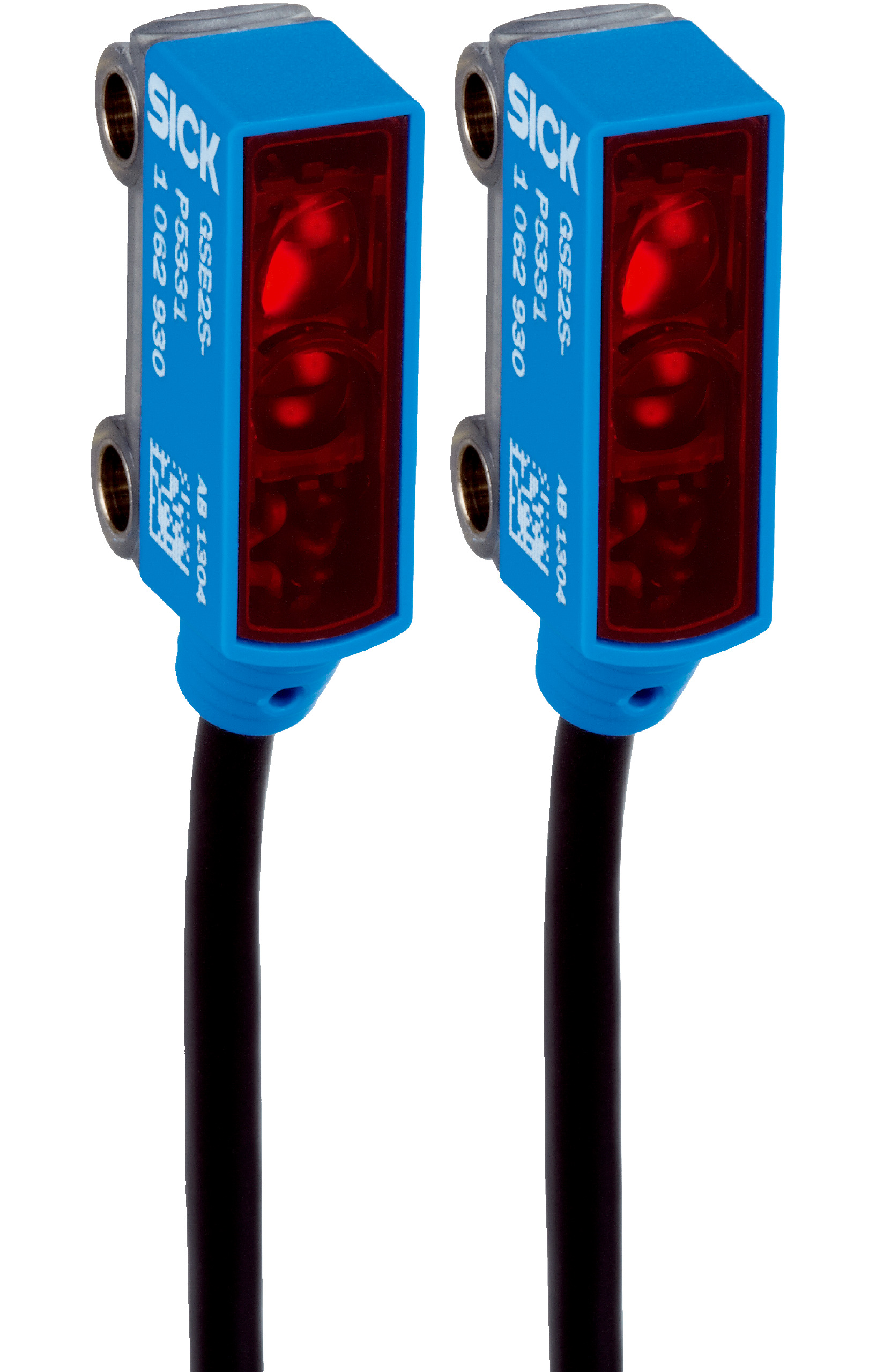

Through-Beam Photoelectric Sensor GSE2S-P2311 | IP67 Rated | 1.5m Sensing Range | Fast Response Time | by SICK
The GSE2S-P2311 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 1.5 meters and a fast response time of under 0.6 ms. With a robust IP67 rated housing and a visible red light PinPoint LED, this sensor is perfect for manufacturing process control and safety systems, ensuring reliable object detection in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 2 m
- Sensing range: 0 m to 1.5 m
- Type of light: Visible red light
- Light source: PinPoint LED
- Light spot size at 500 mm: Ø 23 mm
- Wavelength: 640 nm
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Current consumption: 20 mA
- Switching output: PNP
- Switching mode: Light/dark switching
- Output current max: ≤ 50 mA
- Response time: < 0.6 ms
- Switching frequency: 800 Hz
- Connection type: Cable, 4-wire, 2 m
- Cable material: Plastic, PVC
- Cable diameter: Ø 3 mm
- Circuit protection: A, C, D
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Ambient operating temperature: –25 °C to +50 °C
- Ambient storage temperature: –40 °C to +75 °C
- Dimensions (H x L x W): 22mm x 14mm x 8mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 1.5 meters
- PinPoint LED light source with 640 nm wavelength
- Rectangular housing design with IP67 enclosure rating
- Fast response time under 0.6 ms and switching frequency of 800 Hz
- PNP switching output with light/dark switching mode
- Robust plastic ABS housing and PMMA optics material
- Wide ambient operating temperature range from -25°C to +50°C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of 20 mA reduces energy usage
- Durable IP67 rated housing ensures long product life and reduces waste
- Compliant with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK GSE2S-P2311 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
