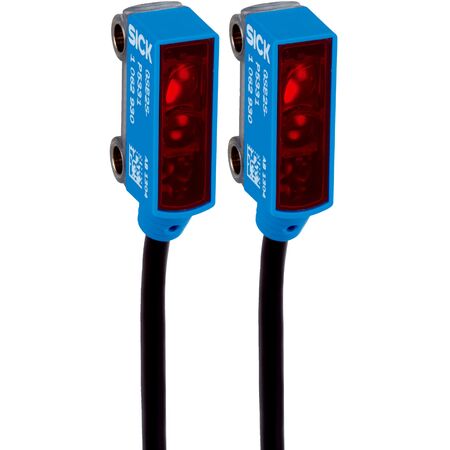

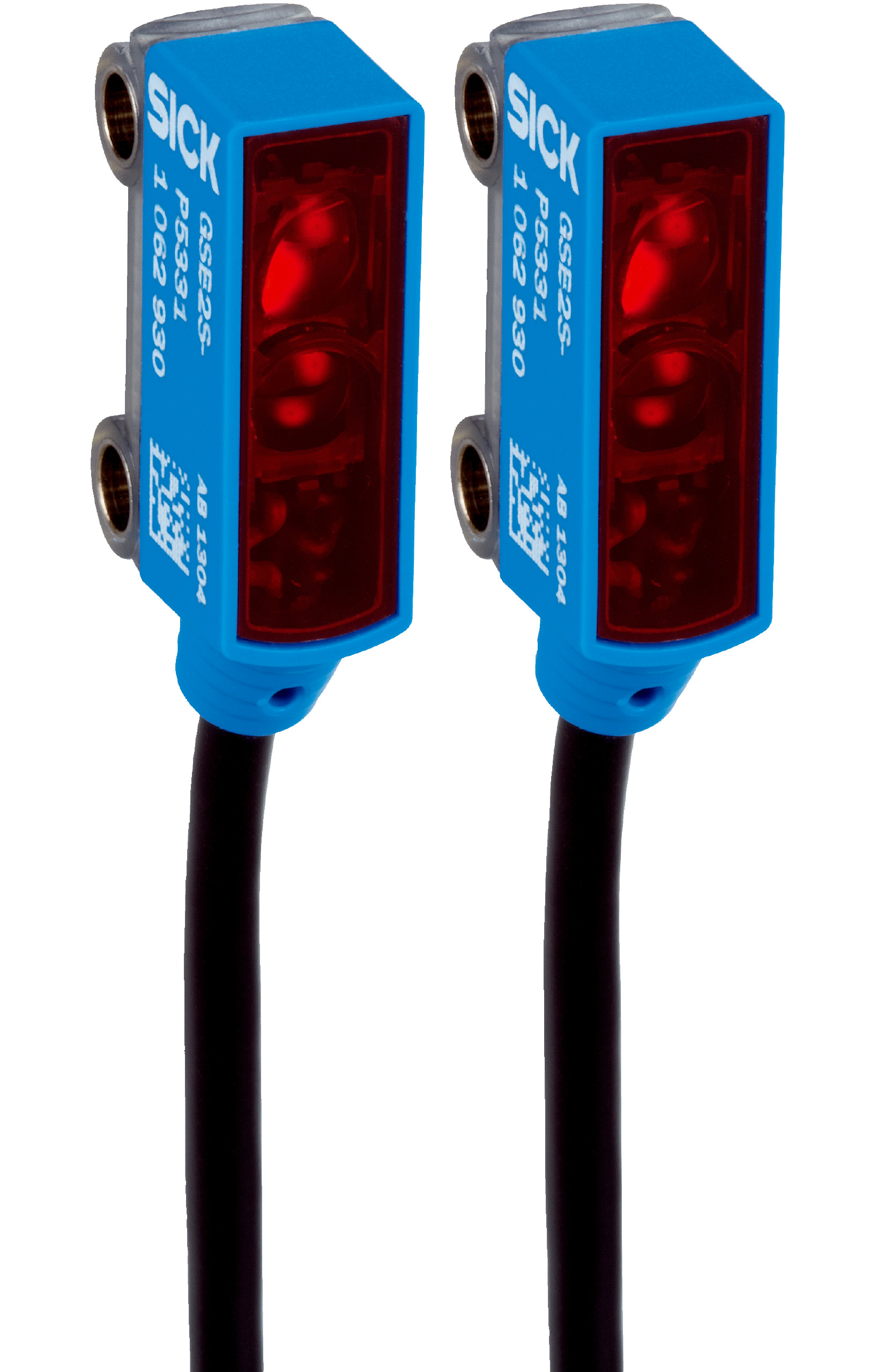

Through-beam Photoelectric Sensor GSE2S-P5311 | IP67 Rated | Fast Response Time | 1.5m Sensing Range | by SICK
The GSE2S-P5311 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a fast response time of under 0.6 ms and a sensing range of up to 1.5 meters. With an IP67 rating for dust and water protection, this robust sensor is perfect for manufacturing process control and safety monitoring in production lines, ensuring reliable object detection in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, max output current ≤ 50 mA
- Response time: < 0.6 ms
- Switching frequency: 800 Hz
- Light source: PinPoint LED, 640 nm wavelength
- Light spot size: Ø 23 mm at 500 mm distance
- Connection: Cable with M8, 3-pin, 200 mm length
- Cable material: Plastic, PVC, diameter Ø 3 mm
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Dimensions (H x L x W): 22mm x 14mm x 8mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Rectangular housing design with visible red light
- Sensing range up to 1.5 meters
- PinPoint LED light source with 640 nm wavelength
- Fast response time under 0.6 ms
- High switching frequency of 800 Hz
- IP67 rated for dust and water protection
- Cable with M8 3-pin connector for easy installation
- Robust plastic ABS housing and PMMA optics
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of 20 mA reduces energy usage
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK GSE2S-P5311 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
