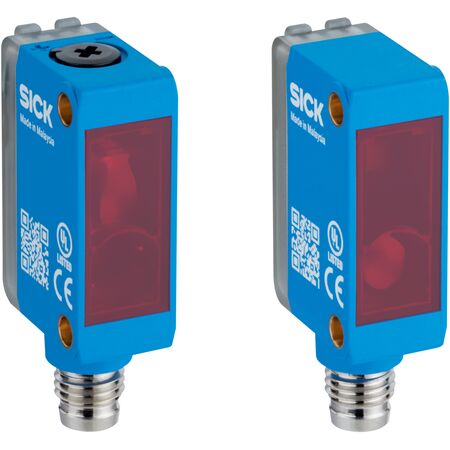

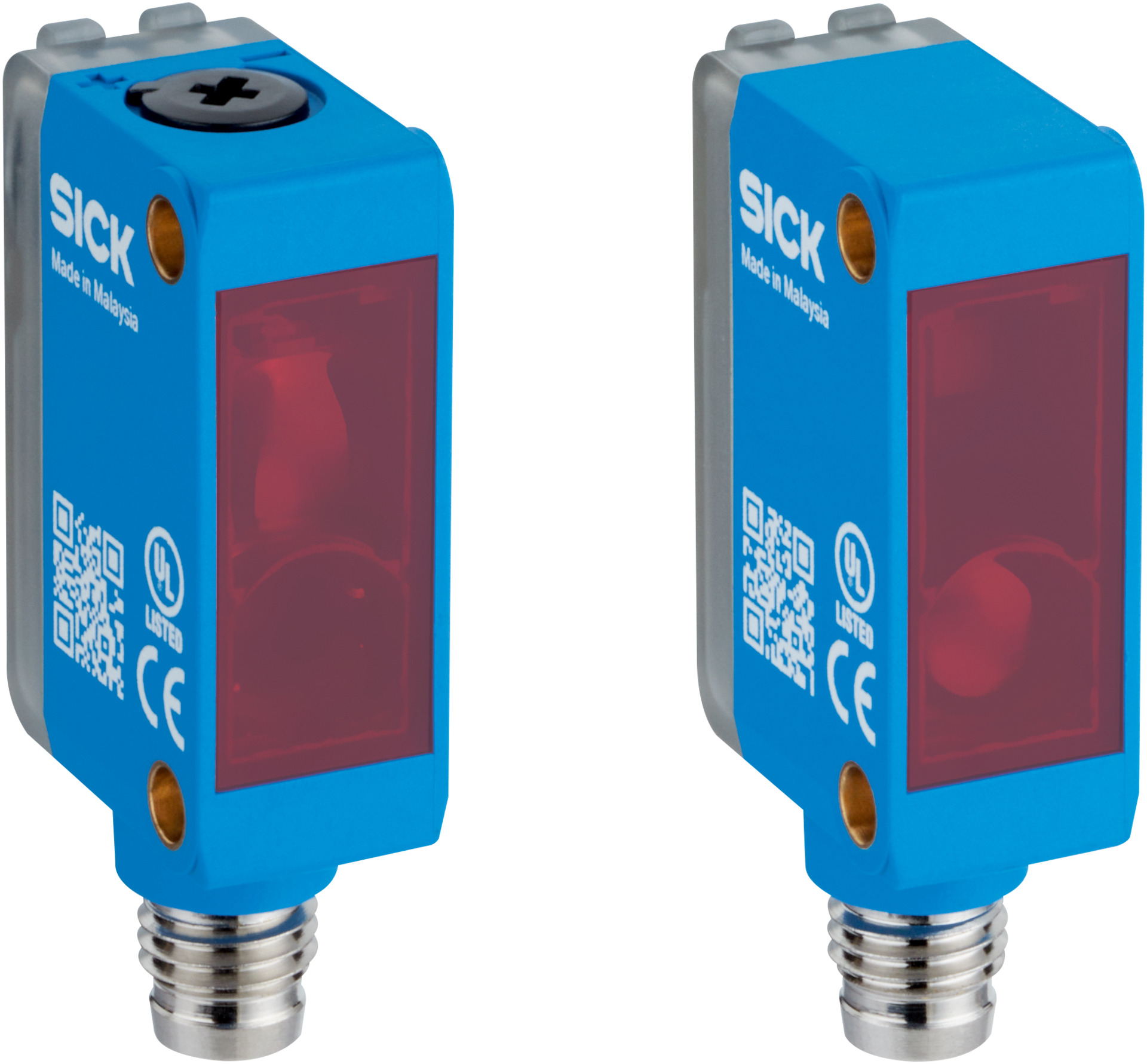

Through-Beam Photoelectric Sensor GSE6SP-22A1217EZZZ | IP67 Rated | 20m Sensing Range | Fast Response Time | by SICK
The Through-Beam Photoelectric Sensor GSE6SP-22A1217EZZZ is designed for industrial automation, featuring a sensing range of up to 20 meters and a fast response time of ≤ 625 µs. With robust IP67 protection and a PinPoint LED light source, it ensures reliable object detection and safety in manufacturing lines and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA without load at 24 V
- Output type: 1 PNP digital output, light switching
- Output current max: ≤ 100 mA
- Response time: ≤ 625 µs
- Switching frequency: 1000 Hz
- Protection: Reverse polarity, overcurrent, short-circuit
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Enclosure rating: IP67
- Housing material: Plastic ABS
- Front screen material: Plastic PMMA
- Connector: Male M8, 4-pin
- MTTFD: 1,724 years
- Mission time: 20 years
- Dimensions (H x L x W): 31.6mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 20 m, recommended 0 to 17 m
- PinPoint LED light source with visible red light at 640 nm wavelength
- Point-shaped light spot with diameter 473.8 mm at 10 m
- LED indicators for power and object detection status
- Adjustable sensing range via 270° potentiometer
- Operating mode switch for light/dark switching inversion
- High switching frequency of 1000 Hz and fast response time ≤ 625 µs
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- Robust IP67 rated plastic ABS housing with PMMA front screen
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Safety and presence detection in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Long service life of 100,000 hours reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GSE6SP-22A1217EZZZ Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
