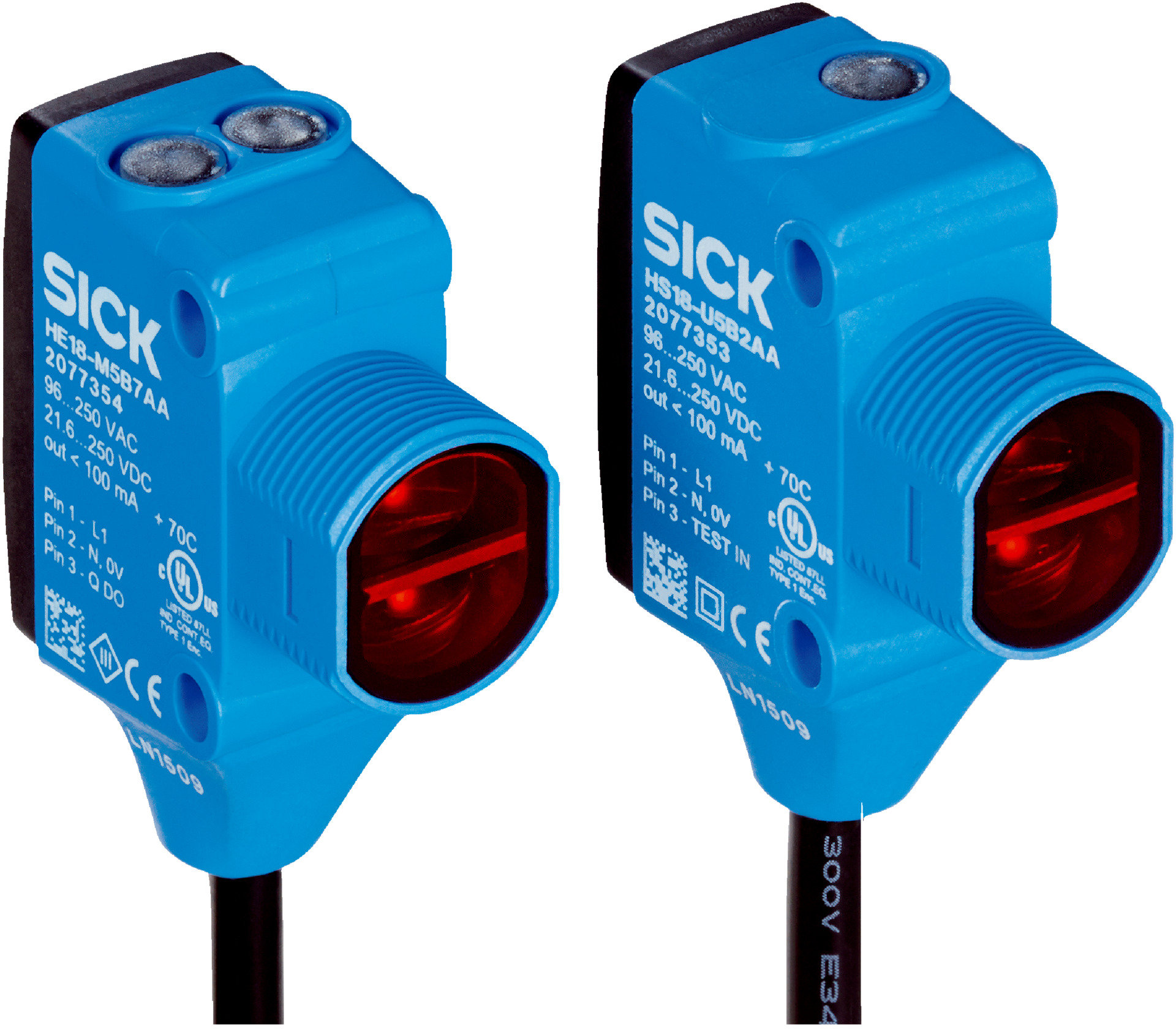

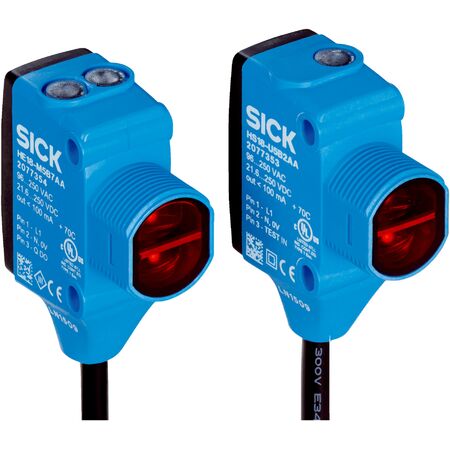

Through-Beam Photoelectric Sensor HSE18-L5B2AA | IP67 & IP69K Rated | 20m Sensing Range | by SICK
The HSE18-L5B2AA Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 20 meters and a high switching frequency of 1,000 Hz. With its durable IP67 and IP69K ratings, this sensor is perfect for harsh environments, ensuring reliable object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 21.6 V DC to 250 V DC, 96 V AC to 250 V AC
- Current consumption: ≤ 10 mA
- Switching output: MOSFET, light switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: Cable with male micro connector, 4-pin, 150 mm
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Protection class: II
- Enclosure rating: IP67, IP69K
- Operating temperature: -40°C to +70°C
- Storage temperature: -40°C to +75°C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 46mm x 34mm x 16mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Visible red light with PinPoint LED
- Sensing range up to 20 meters
- Compact M18 housing with hybrid light emission design
- High switching frequency of 1,000 Hz
- IP67 and IP69K rated for harsh environments
- Wide operating temperature range from -40°C to +70°C
- MOSFET switching output with light switching mode
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67/IP69K housing reduces waste by extending product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK HSE18-L5B2AA Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
