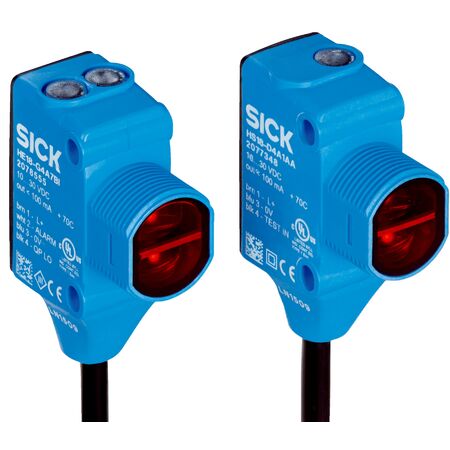

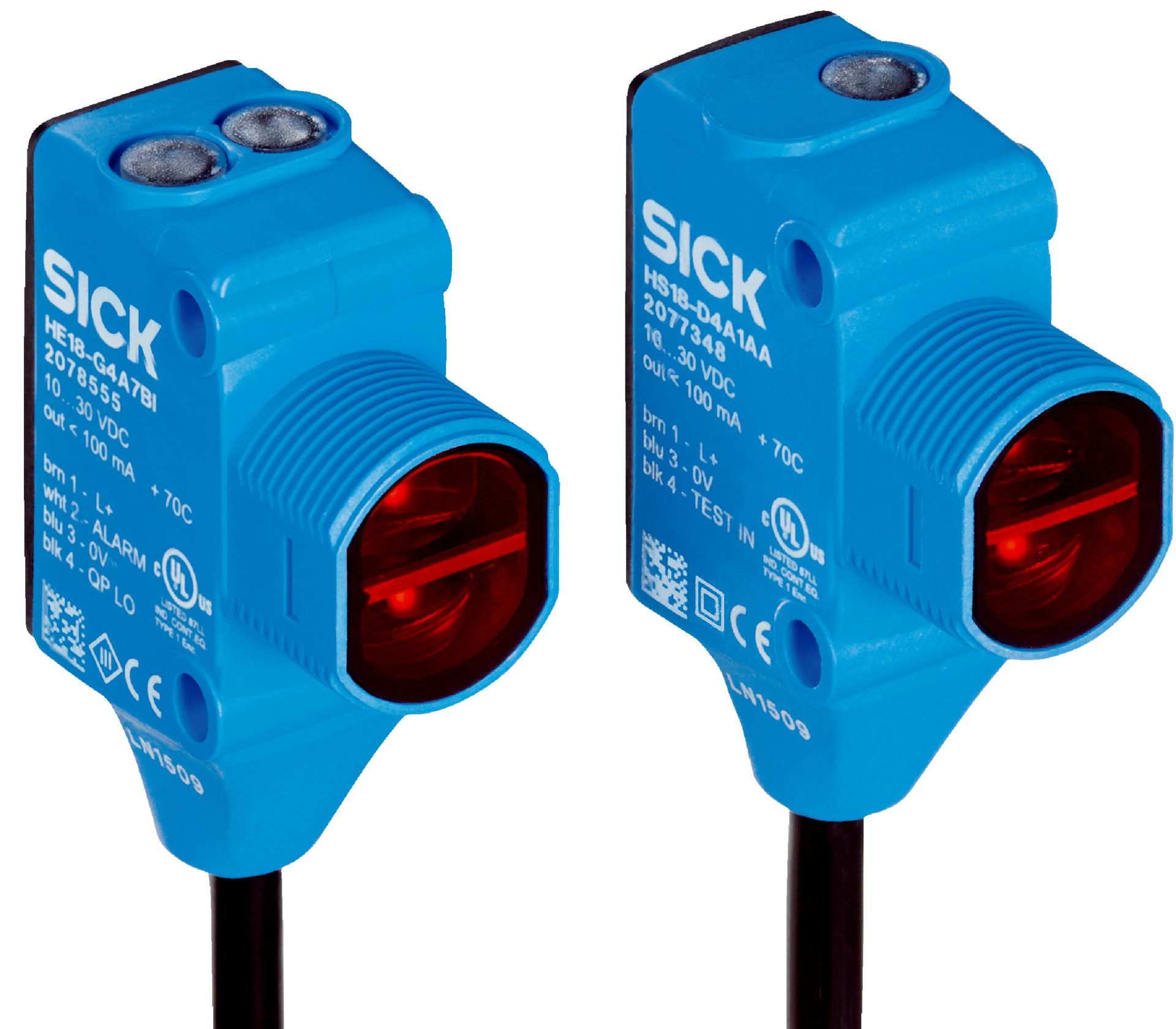

Through-Beam Photoelectric Sensor HSE18-P4C2BA | IP67 & IP69K Rated | 20m Sensing Range | 1000 Hz Switching Frequency | by SICK
The HSE18-P4C2BA Through-Beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 20 meters and a high switching frequency of 1,000 Hz. With an IP67 and IP69K rating, it excels in harsh environments, making it ideal for manufacturing process control and safety monitoring in production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA
- Switching output: PNP complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: Cable with M12 male connector, 4-pin, 300 mm
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP67, IP69K
- Operating temperature: -40 °C to +70 °C
- Wave length: 631 nm
- Light source: PinPoint LED
- Signal strength light bar included
- Dimensions (H x L x W): 46mm x 32mm x 16mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 20 meters
- Hybrid housing design with M18 thread diameter
- Signal strength light bar for easy adjustment
- High switching frequency of 1,000 Hz
- IP67 and IP69K rated for harsh environments
- Operating temperature range from -40°C to +70°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67/IP69K housing reduces waste by extending product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK HSE18-P4C2BA Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
