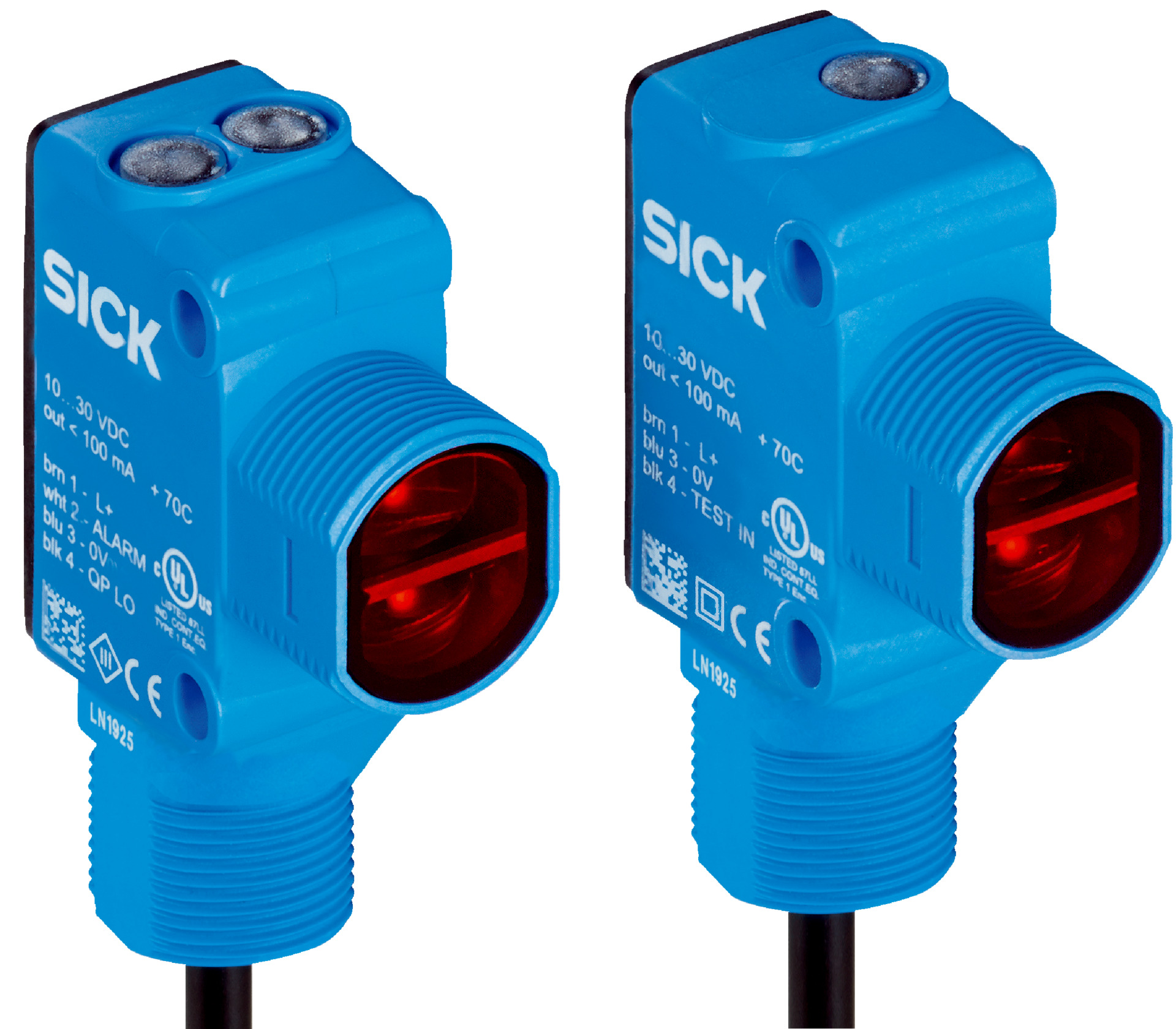

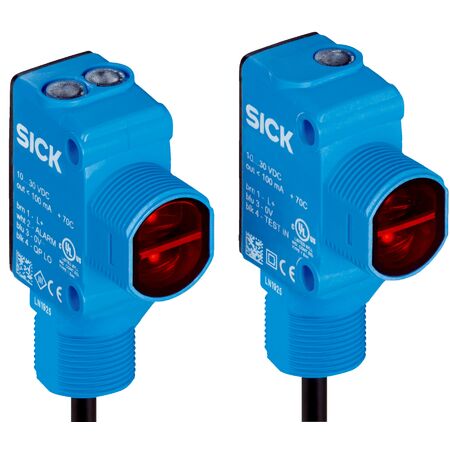

Through-beam Photoelectric Sensor HSE18B-F4B2BH | IP67 & IP69K Rated | 20m Sensing Range | by SICK
The HSE18B-F4B2BH Through-beam Photoelectric Sensor is designed for industrial automation, featuring a robust IP67 and IP69K rated housing for reliable performance in harsh environments. With a sensing range of up to 20 meters and a high switching frequency of 1,000 Hz, it ensures precise object detection and monitoring in manufacturing processes. Ideal for safety applications, this sensor is built to withstand extreme temperatures from -40°C to +70°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA
- Switching output: Push-pull PNP/NPN complementary
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Light source wavelength: 631 nm
- Light spot size at 10 m: 400 mm x 200 mm
- Connection: Cable with M12 male connector, 4-pin, 150 mm
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Protection class: III
- Enclosure rating: IP67, IP69K
- Operating temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 50mm x 31mm x 16mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Visible red light with PinPoint LED
- Sensing range up to 20 meters
- Hybrid housing design with M18 thread diameter
- Signal strength light bar for easy adjustment
- Light/dark switching with potentiometer adjustment
- Push-pull PNP/NPN complementary switching outputs
- High switching frequency of 1,000 Hz
- Robust plastic housing with IP67 and IP69K protection
- Wide ambient operating temperature range from -40°C to +70°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67/IP69K rated housing reduces waste from replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK HSE18B-F4B2BH Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
