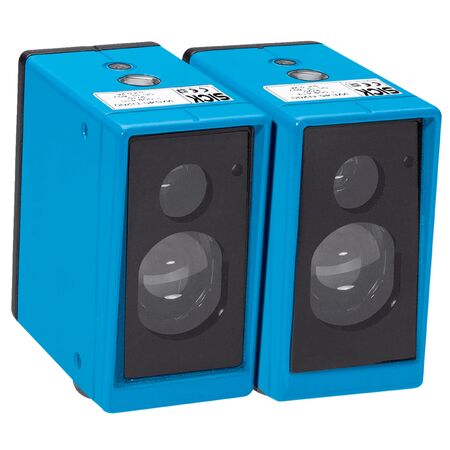

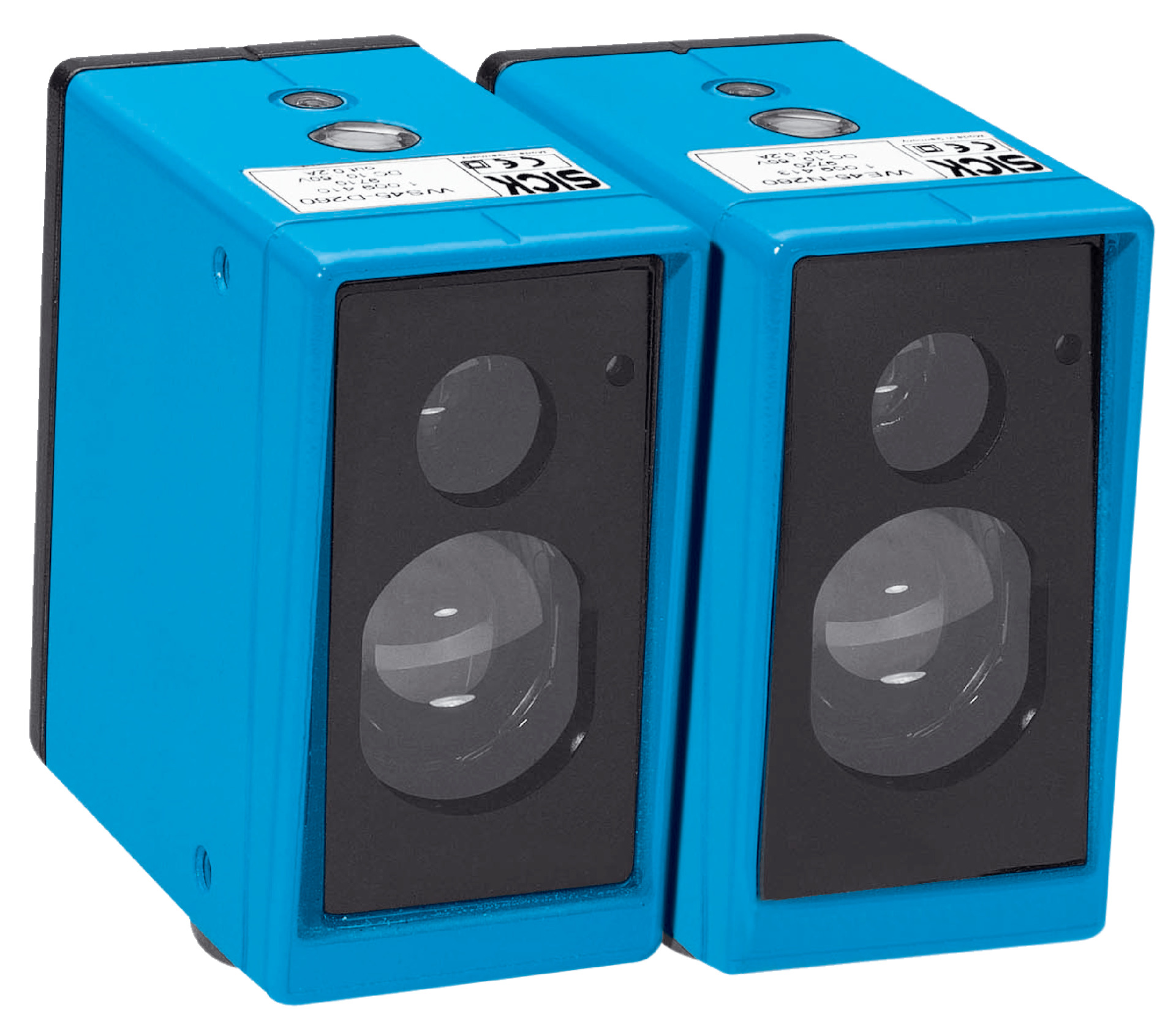

Through-Beam Photoelectric Sensor WS/WE45-N250 | Infrared Light | 300m Sensing Range | IP67 Rated | by SICK
The WS/WE45-N250 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 300 meters and an infrared light source. With a robust IP67-rated metal housing and adjustable sensitivity settings, it ensures reliable performance in harsh environments, making it ideal for safety monitoring and object detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through-Beam Photoelectric Sensor WS/WE45-N250 | Infrared Light | 300m Sensing Range | IP67 Rated | by SICK
Brand: SICK
SKU: 1010982
Alternatively Known As: Through-beam photoelectric sensor, Infrared photoelectric sensor, Long-range photoelectric sensor, WS45-N250 sensor, WE45-N250 sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 350 m
- Sensing range: 0 m to 300 m
- Type of light: Infrared light
- Light spot size at 300 m: Ø 4.5 m
- Angle of dispersion: Approx. 0.9°
- Supply voltage: 10 V DC to 60 V DC
- Power consumption sender and receiver: 250 mA each
- Switching output: NPN complementary
- Output current max: ≤ 200 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Time functions: Switch-on delay, Off delay, ON and OFF delay
- Delay time adjustable from 0.015 s to 12 s
- Connection type: Terminal connection with PG13.5, 6-pin
- Circuit protection: Types A, C, D
- Protection class: I
- Front screen heating included
- Alarm output: 100 mA
- Housing material: Metal
- Enclosure rating: IP67
- Ambient operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 105mm x 105mm x 60mm
- Weight: 1.6 kg
Key Features
- Through-beam photoelectric sensor with infrared LED light source
- Rectangular metal housing with IP67 enclosure rating
- Sensing range up to 300 meters with a focus of approximately 0.9°
- Adjustable potentiometer for sensitivity and delay time settings
- Switching output: NPN complementary with light/dark switching mode
- Response time ≤ 500 µs and switching frequency up to 1,000 Hz
- Front screen heating for reliable operation in harsh environments
- Wide ambient operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Long-range sensing applications up to 300 meters
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WS/WE45-N250 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
