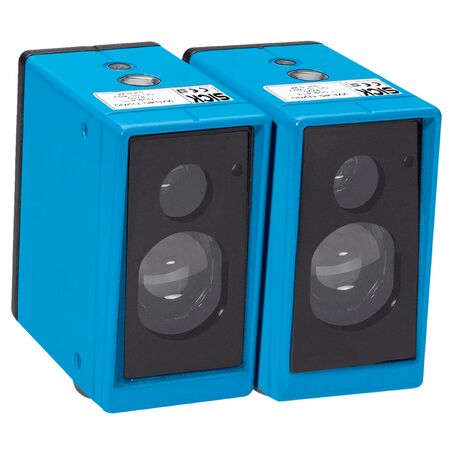

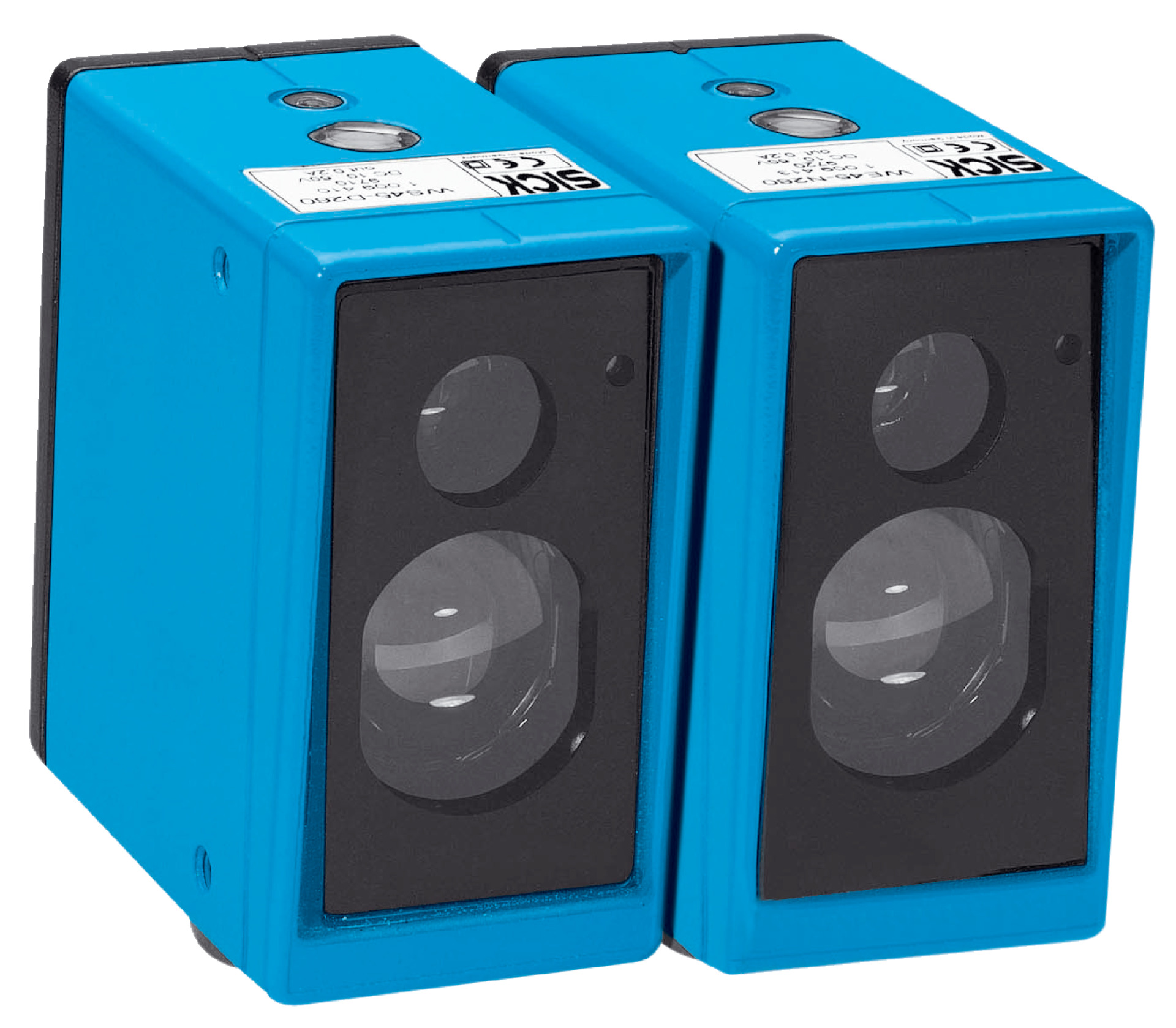

Through-Beam Photoelectric Sensor WS/WE45-P660 | Infrared LED Light | IP65 Rated | 300m Sensing Range | by SICK
The WS/WE45-P660 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 300 meters and an infrared LED light source. With an IP65 enclosure rating and adjustable potentiometer for sensitivity, this sensor is perfect for object detection and safety monitoring in manufacturing processes, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through-Beam Photoelectric Sensor WS/WE45-P660 | Infrared LED Light | IP65 Rated | 300m Sensing Range | by SICK
Brand: SICK
SKU: 1010989
Alternatively Known As: Through-beam photoelectric sensor, Infrared photoelectric sensor, Long-range sensor WS/WE45-P660
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 350 m
- Sensing range: 0 m to 300 m
- Focus: Approx. 0.9°
- Type of light: Infrared light
- Light source: LED
- Light spot size at 300 m: Ø 4.5 m
- Angle of dispersion: Approx. 0.9°
- Adjustment: Potentiometer
- Supply voltage UB: 10 V DC to 60 V DC
- Ripple: < 5 V pp
- Power consumption sender: 50 mA
- Power consumption receiver: 50 mA
- Switching output: PNP
- Output function: Complementary
- Switching mode: Light/dark switching
- Output current Imax.: ≤ 200 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Time functions: Switch-on delay, Off delay, ON and OFF delay
- Delay time: Adjustable 0.015 s to 12 s
- Connection type: Connector Hirschmann, 6-pin
- Circuit protection: A, C, D
- Protection class: I
- Alarm output: 100 mA
- Housing material: Metal
- Enclosure rating: IP65
- Ambient operating temperature: -25 °C to +55 °C
- Ambient temperature storage: -40 °C to +70 °C
- Dimensions (H x L x W): 105mm x 105mm x 60mm
- Weight: 1.6 kg
Key Features
- Through-beam photoelectric sensor with infrared LED light source
- Rectangular metal housing with IP65 enclosure rating
- Sensing range up to 300 meters with a focus of approximately 0.9°
- Adjustable potentiometer for sensitivity and delay time settings
- Switching output: PNP with complementary output function
- High switching frequency of 1,000 Hz and response time ≤ 500 µs
- Connector Hirschmann 6-pin connection type
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Long-range sensing applications up to 300 meters
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WS/WE45-P660 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and long-range sensing applications.
