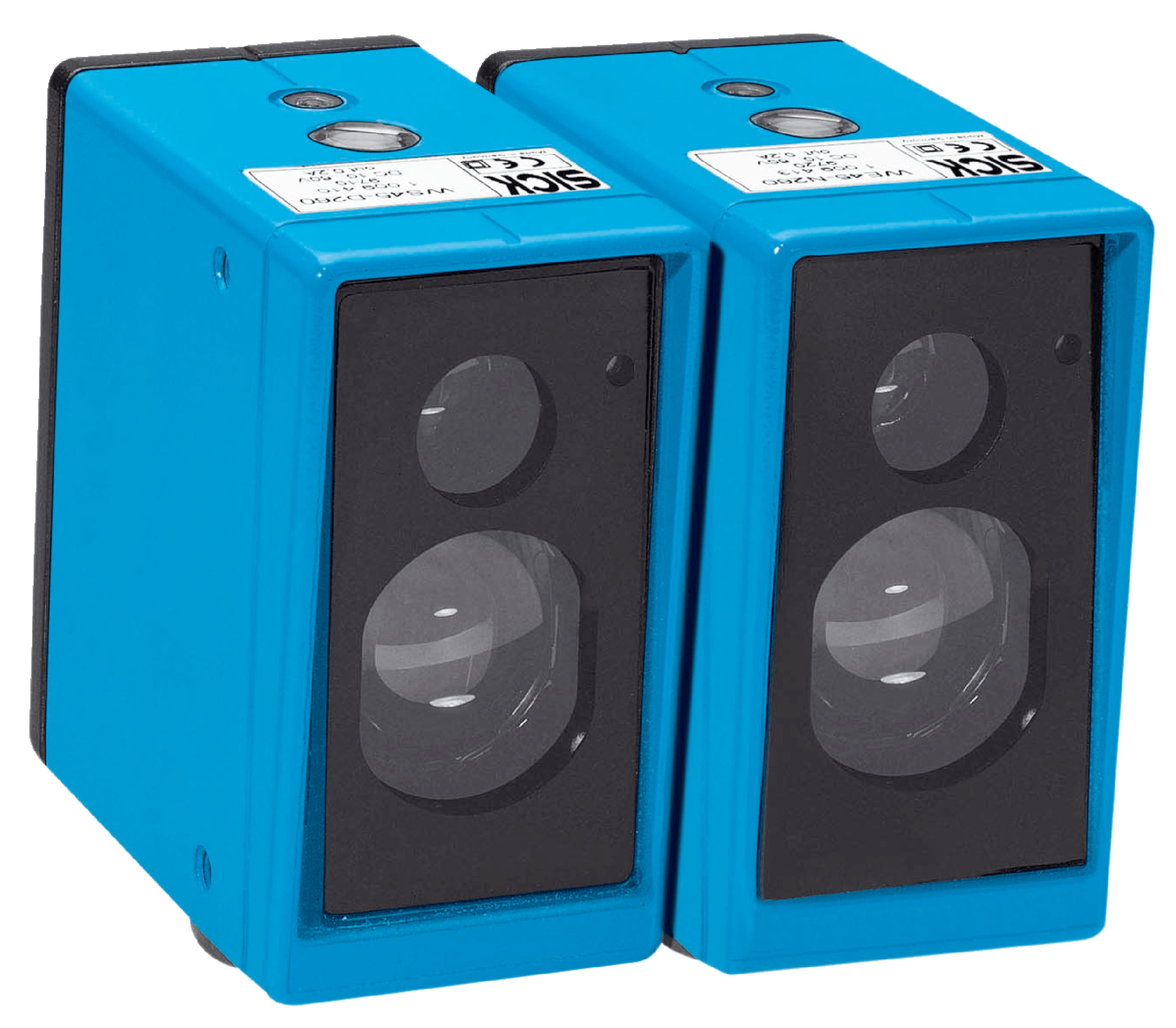

Through-Beam Photoelectric Sensor WS/WE45-P250 | Infrared LED | IP67 Rated | 300m Sensing Range | by SICK
The Through-Beam Photoelectric Sensor WS/WE45-P250 is designed for industrial automation, featuring a sensing range of up to 300 meters and an infrared LED light source. With an IP67 enclosure rating and adjustable sensitivity settings, this sensor ensures reliable object detection and monitoring in various manufacturing processes, making it ideal for safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through-Beam Photoelectric Sensor WS/WE45-P250 | Infrared LED | IP67 Rated | 300m Sensing Range | by SICK
Brand: SICK
SKU: 1010983
Alternatively Known As: Through-beam photoelectric sensor, Infrared photoelectric sensor, Long-range sensor WS/WE45-P250
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 350 m
- Sensing range: 0 m to 300 m
- Type of light: Infrared light
- Light source: LED
- Light spot size at 300 m: Ø 4.5 m
- Angle of dispersion: Approx. 0.9°
- Supply voltage: 10 V DC to 60 V DC
- Power consumption sender and receiver: 250 mA each
- Switching output: PNP, complementary function
- Output current max: ≤ 200 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Time functions: Switch-on delay, off delay, ON and OFF delay
- Delay time adjustable from 0.015 s to 12 s
- Connection type: Terminal connection with PG13.5, 6-pin
- Circuit protection: Types A, C, D
- Protection class: I
- Enclosure rating: IP67
- Ambient operating temperature: -25 °C to +55 °C
- Ambient storage temperature: -40 °C to +70 °C
- Front screen heating included
- Dimensions (H x L x W): 105mm x 105mm x 60mm
- Weight: 1.6 kg
Key Features
- Through-beam photoelectric sensor with infrared LED light source
- Rectangular metal housing with IP67 enclosure rating
- Sensing range up to 300 meters with a focus of approximately 0.9°
- Adjustable potentiometer for sensitivity and delay time settings
- Switching output: PNP with complementary output function
- Switching frequency up to 1,000 Hz and response time ≤ 500 µs
- Front screen heating for reliable operation in cold environments
- Protection class I and circuit protection types A, C, D
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Long-range sensing applications up to 300 meters
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WS/WE45-P250 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and long-range sensing applications.
