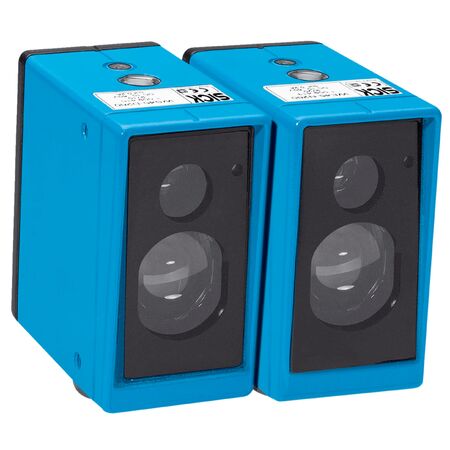

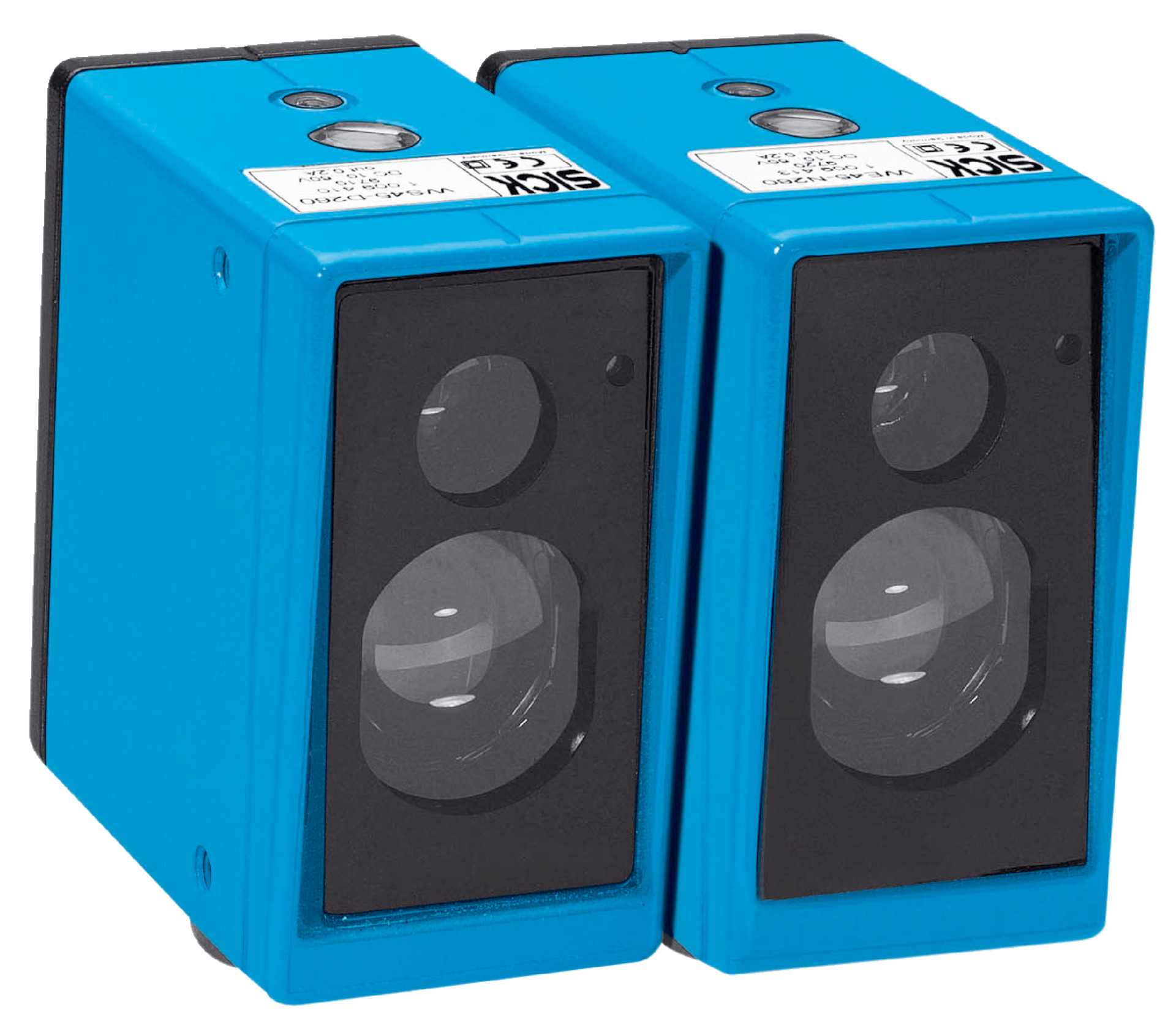

Through-Beam Photoelectric Sensor WS/WE45-N260 | Infrared LED | IP67 Rated | 300m Sensing Range | by SICK
The WS/WE45-N260 Through-beam photoelectric sensor is designed for industrial automation, featuring a sensing range of up to 300 meters and an infrared LED light source. With a robust IP67-rated metal housing, it ensures reliable performance in harsh environments, making it ideal for object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through-Beam Photoelectric Sensor WS/WE45-N260 | Infrared LED | IP67 Rated | 300m Sensing Range | by SICK
Brand: SICK
SKU: 1010984
Alternatively Known As: Through-beam photoelectric sensor, Infrared photoelectric sensor, Long-range sensor WS/WE45-N260
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 350 m
- Sensing range: 0 m to 300 m
- Focus: Approx. 0.9°
- Type of light: Infrared light
- Light source: LED
- Light spot size at 300 m: Ø 4.5 m
- Angle of dispersion: Approx. 0.9°
- Adjustment: Potentiometer
- Supply voltage UB: 10 V DC to 60 V DC
- Ripple: < 5 V pp
- Power consumption sender: 50 mA
- Power consumption receiver: 50 mA
- Switching output: NPN
- Output function: Complementary
- Switching mode: Light/dark switching
- Output current Imax: ≤ 200 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Time functions: Switch-on delay, Off delay, ON and OFF delay
- Delay time: Adjustable 0.015 s to 12 s
- Connection type: Terminal connection with PG13.5, 6-pin
- Circuit protection: Types A, C, D
- Protection class: I
- Alarm output: 100 mA
- Housing material: Metal
- Enclosure rating: IP67
- Ambient operating temperature: -25 °C to +55 °C
- Ambient temperature storage: -40 °C to +70 °C
- Dimensions (H x L x W): 105mm x 105mm x 60mm
- Weight: 1.6 kg
Key Features
- Through-beam photoelectric sensor with infrared LED light source
- Rectangular metal housing with IP67 enclosure rating
- Sensing range up to 300 meters with a focus angle of approximately 0.9°
- Adjustable potentiometer for sensitivity and delay time settings
- Switching output: NPN complementary with light/dark switching mode
- High switching frequency of 1,000 Hz and response time ≤ 500 µs
- Robust design suitable for ambient temperatures from -25°C to +55°C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Long-range sensing applications up to 300 meters
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
Warranty Information
Warranty details available upon request from the manufacturer or authorized distributor.
Available Now
The SICK WS/WE45-N260 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and long-range sensing applications.
