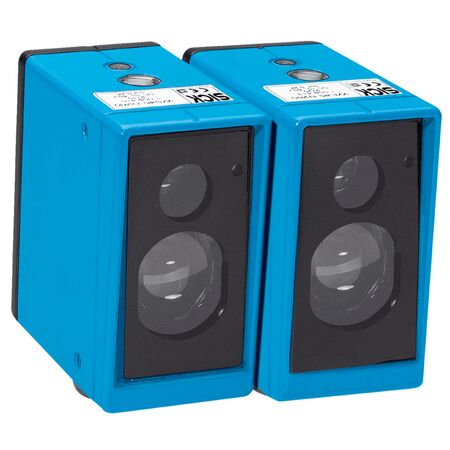

Through-Beam Photoelectric Sensor WS/WE45-P260 | Infrared LED | IP67 Rated | 350m Sensing Range | by SICK
The WS/WE45-P260 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a long sensing range of up to 350 meters with a precise focus of approximately 0.9°. With an IP67 enclosure rating and durable metal housing, it ensures reliable performance in harsh environments. Ideal for object detection and safety monitoring in manufacturing processes, this sensor operates efficiently with low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through-Beam Photoelectric Sensor WS/WE45-P260 | Infrared LED | IP67 Rated | 350m Sensing Range | by SICK
Brand: SICK
SKU: 1010985
Alternatively Known As: Through-beam photoelectric sensor, Infrared photoelectric sensor, Long-range sensor WS/WE45-P260
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 350 m
- Type of light: Infrared light
- Light source: LED
- Light spot size at 300 m: Ø 4.5 m
- Angle of dispersion: Approx. 0.9°
- Supply voltage: 10 V DC to 60 V DC
- Power consumption sender: 50 mA
- Power consumption receiver: 50 mA
- Switching output: PNP, complementary
- Output current max: ≤ 200 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Time functions: Switch-on delay, Off delay, ON and OFF delay
- Connection type: Terminal connection with PG13.5, 6-pin
- Protection class: I
- Enclosure rating: IP67
- Ambient operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Weight: 1,600 g
- Housing material: Metal
- Dimensions (H x L x W): 105mm x 105mm x 60mm
- Weight: 1.6 kg
Key Features
- Through-beam photoelectric sensor with infrared LED light source
- Rectangular metal housing with IP67 enclosure rating
- Sensing range up to 300 meters with a focus of approximately 0.9°
- Adjustable delay time via time delay selector switch
- Switching output: PNP with complementary output function
- High switching frequency of 1,000 Hz and response time ≤ 500 µs
- Protection class I and circuit protection options A, C, D
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Long-range sensing applications up to 300 meters
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 50 mA for sender and receiver each
- Durable metal housing reduces waste through extended product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WS/WE45-P260 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and long-range sensing applications.
