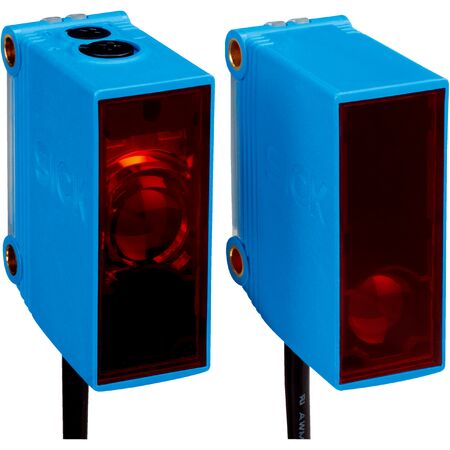

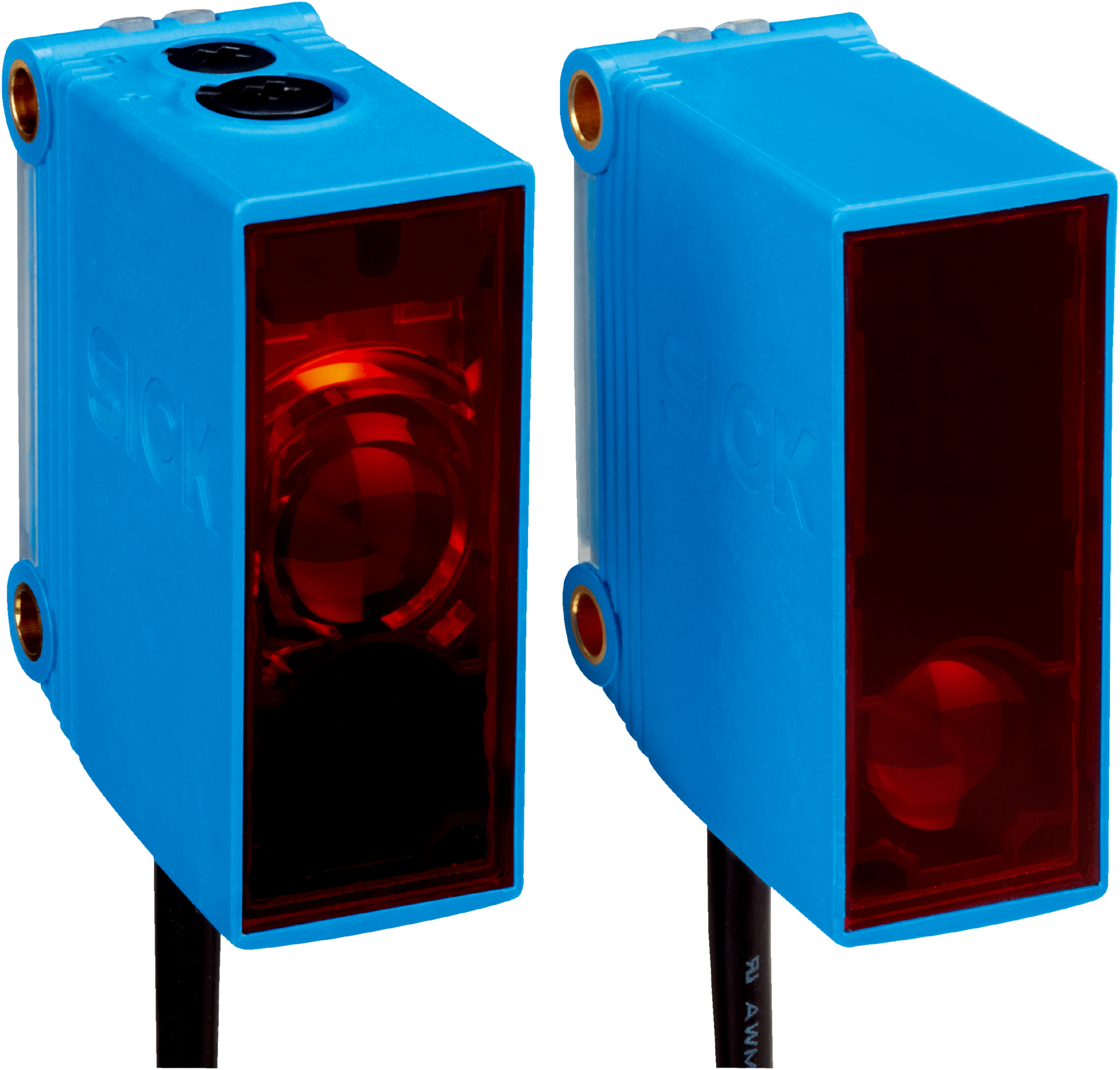

Through-beam Photoelectric Sensor GSE10-N1222 | Infrared Light | IP67 Rated | 35m Sensing Range | by SICK
The GSE10-N1222 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 35 meters and an infrared light source. With an IP67 enclosure rating and a fast response time of ≤ 500 µs, this sensor is perfect for safety monitoring and object detection in manufacturing processes, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 35 m (max 40 m)
- Type of light: Infrared light, wavelength 850 nm
- Light spot size at 15 m: Ø 433 mm
- Supply voltage: 10 V DC to 30 V DC
- Power consumption sender: ≤ 15 mA, receiver: ≤ 20 mA
- Switching output: NPN, max output current ≤ 100 mA
- Switching mode: Light/dark switching selectable
- Response time: ≤ 500 µs, switching frequency: 1000 Hz
- Connection: 3-wire cable, 2 m length, PVC material
- Protection class: III, Enclosure rating: IP67
- Housing material: Plastic ABS/PMMA
- Operating temperature: -30°C to +60°C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.18 kg
Key Features
- Through-beam photoelectric sensor with infrared LED light source
- Sensing range up to 35 meters, max 40 meters
- Rectangular housing design with IP67 enclosure rating
- Adjustable potentiometer with 270° rotation
- NPN switching output with selectable light/dark switching mode
- High switching frequency of 1000 Hz and fast response time ≤ 500 µs
- Robust plastic ABS/PMMA housing material
- Cable connection with 3-wire, 2 meter PVC cable
- Wide ambient operating temperature range from -30°C to +60°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GSE10-N1222 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
