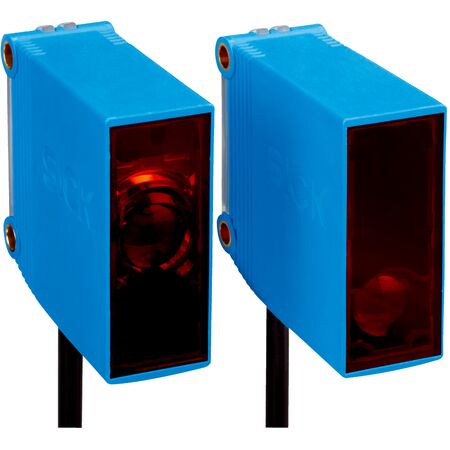

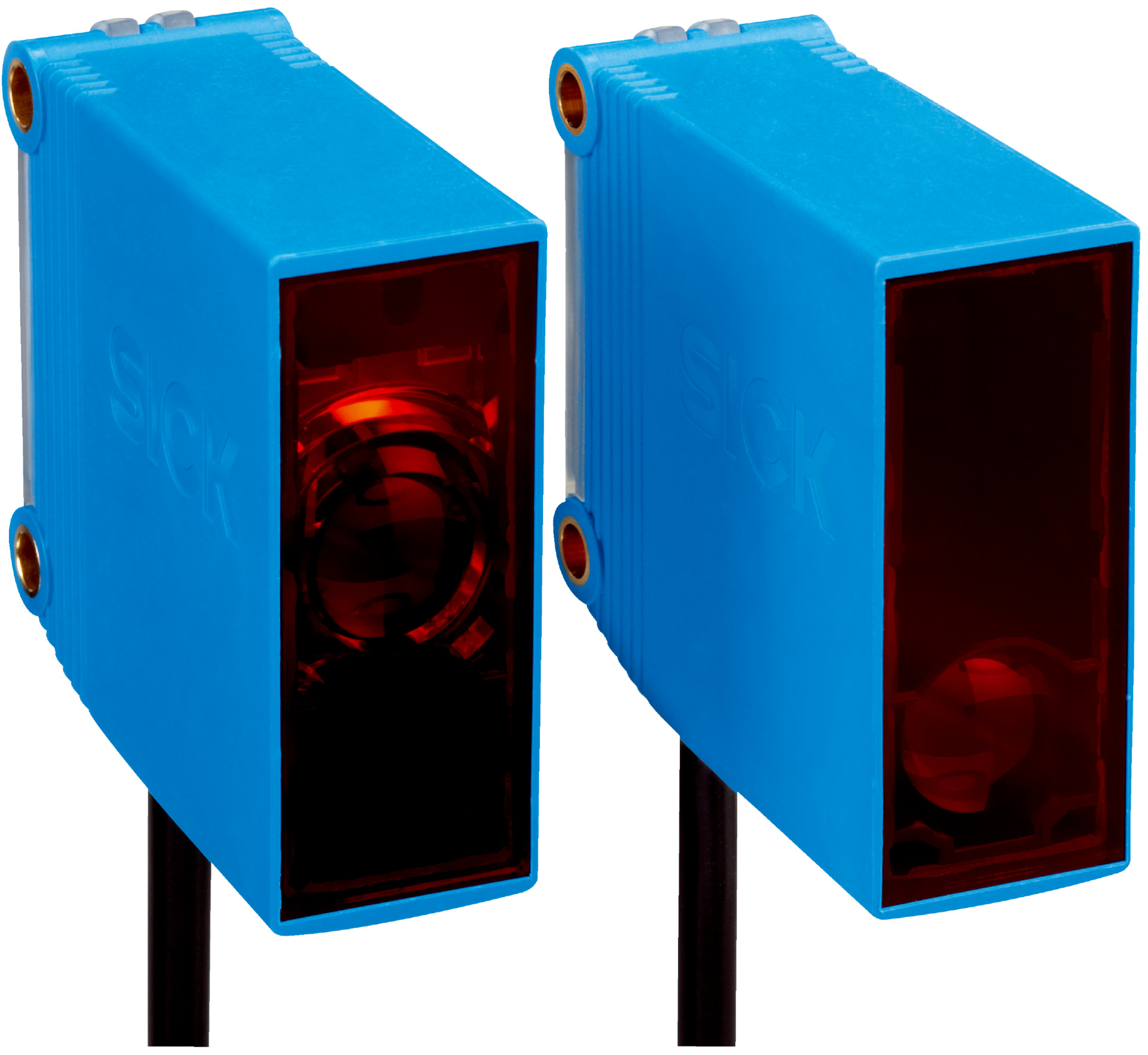

Through-beam Photoelectric Sensor GSE10-R3722 | Infrared Light | IP67 Enclosure | Fast Response Time | by SICK
The GSE10-R3722 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 40 meters and an infrared light source. With a robust IP67 enclosure and a fast response time of ≤ 10 ms, it's perfect for object detection and safety monitoring in harsh environments, ensuring reliable performance in manufacturing and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 40 m
- Type of light: Infrared light, wavelength 850 nm
- Light spot size at 15 m: Ø 433 mm
- Supply voltage: 24 V AC/DC to 240 V AC/DC
- Power consumption sender: ≤ 2 VA, receiver: ≤ 2.5 VA
- Switching output: Relay, SPDT, electrically isolated
- Switching load max.: 0.11 A (250 V DC), 3 A (30 V DC), 3 A (250 V AC)
- Response time: ≤ 10 ms
- Switching frequency: 20 Hz
- Connection type: 5-wire cable, 2 m, PVC
- Protection class: II
- Enclosure rating: IP67
- Housing material: Plastic ABS/PMMA
- Ambient operating temperature: –30 °C to +60 °C
- Relay switching cycles min.: 100,000 cycles (3 A)
- Dimensions (H x L x W): 50mm x 52mm x 20mm
- Weight: 0.23 kg
Key Features
- Through-beam photoelectric sensor with infrared LED light source
- Sensing range up to 35 meters
- Rectangular housing design with IP67 enclosure rating
- Relay, SPDT electrically isolated switching output
- Fast response time of ≤ 10 ms and switching frequency of 20 Hz
- Wide supply voltage range from 24 V AC/DC to 240 V AC/DC
- Robust plastic ABS/PMMA housing with mounting brackets included
- Suitable for harsh environments with ambient operating temperature from –30 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GSE10-R3722 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
