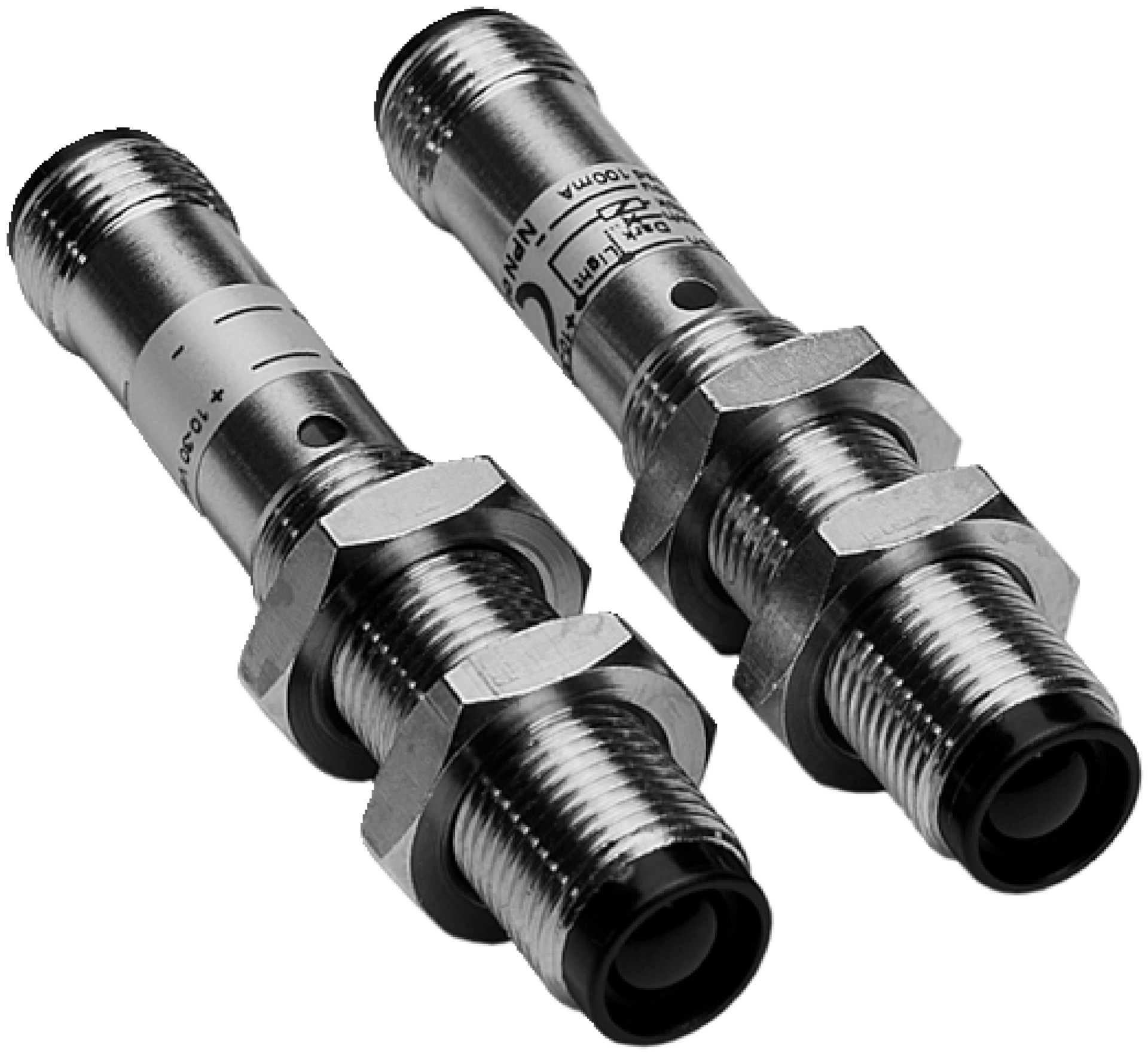

Through-beam Photoelectric Sensor | Infrared Light Source | IP67 Rated | Fast Response Time | by SICK
The Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 5 meters and an infrared light source. With a robust IP67 rated enclosure, it ensures reliable performance in harsh environments. Ideal for object detection and manufacturing process control, this sensor offers a fast response time of ≤ 2 ms and selectable light/dark switching mode for versatile applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 5 m
- Focus angle: Approx. 1.4°
- Type of light: Infrared light (880 nm wavelength)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: NPN
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 2 ms
- Switching frequency: 250 Hz
- Connection type: Male connector M12, 4-pin
- Circuit protection: A, B, C, D types
- Protection class: III
- Housing material: Metal, Nickel-plated brass/PA
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: -25°C to +70°C
- Storage temperature: -25°C to +70°C
- Dimensions (H x L x W): 12mm x 66.3mm x 12mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with infrared LED light source
- Sensing range up to 5 meters
- Cylindrical metal housing with nickel-plated brass and PA
- IP67 rated enclosure for dust and water protection
- Selectable light/dark switching mode via control cable
- Fast response time of ≤ 2 ms and switching frequency of 250 Hz
- Male M12, 4-pin connector for easy installation
- Wide operating temperature range from -25°C to +70°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable metal housing extends product life reducing waste
- IP67 rating ensures protection against environmental contaminants
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

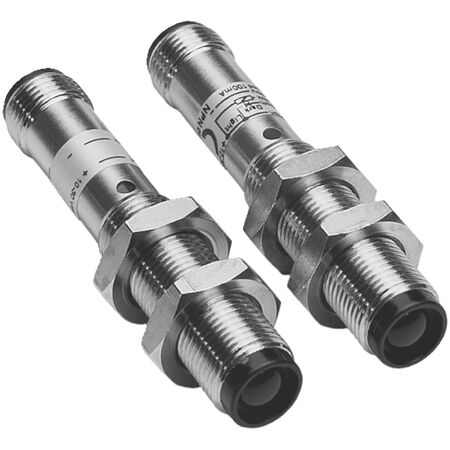

The SICK VS/VE12-2N430 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
