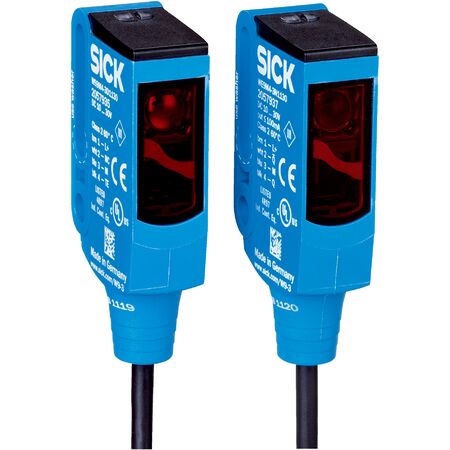

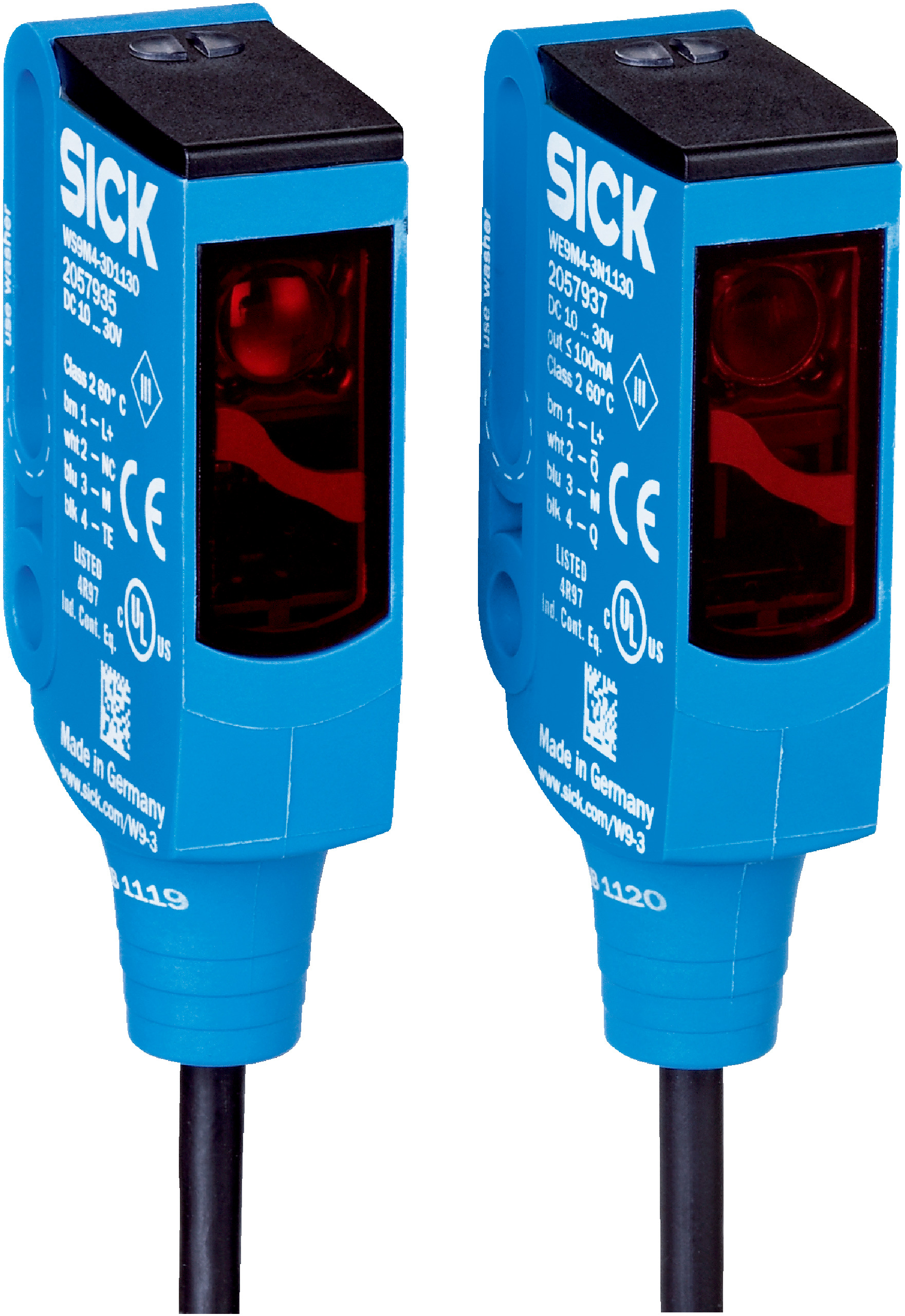

Through-Beam Photoelectric Sensor | Infrared LED | 10m Sensing Range | IP66/IP67/IP69K Rated | by SICK
The Through-Beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 10 meters and a high switching frequency of 500 Hz. With an infrared LED light source and robust IP66/IP67/IP69K protection, it ensures reliable object detection and safety monitoring in various applications, from manufacturing to material handling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 10 m (max 13 m)
- Type of light: Infrared light, wavelength 850 nm
- Light spot size at 1 m: Ø 140 mm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 1 ms
- Switching frequency: 500 Hz
- Connection type: Cable with M12 male connector, 4-pin, 120 mm
- Cable material: Plastic, PVC
- Conductor cross section: 0.14 mm²
- Circuit protection: A, B, C
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with infrared LED light source
- Rectangular housing design with M4 mounting hole
- Sensing range up to 10 meters, max 13 meters
- High switching frequency of 500 Hz and response time under 1 ms
- IP66, IP67, and IP69K rated for robust protection
- Operating temperature range from -40°C to +60°C
- Complementary PNP output with light/dark switching mode
- Cable with M12 male connector, 4-pin, 120 mm length
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable housing materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WSE9M4-3P3410S02 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
