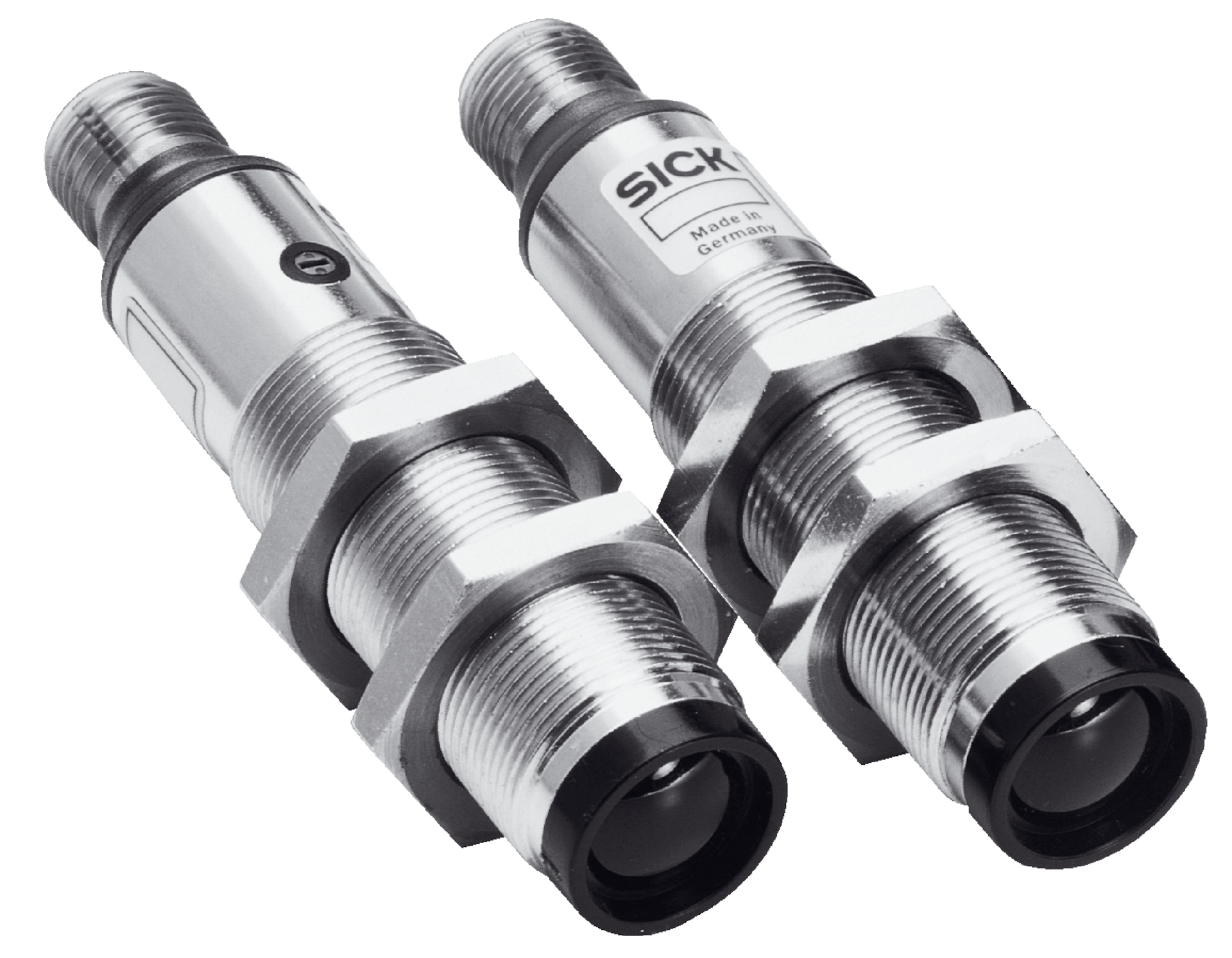

Through-beam Photoelectric Sensor | Infrared LED | 14m Sensing Range | IP67 Rated | by SICK
The Through-beam Photoelectric Sensor is designed for industrial automation, featuring an infrared LED light source and a sensing range of up to 14 meters. With a durable cylindrical metal housing and IP67 rating, it ensures reliable performance in harsh environments. Ideal for object detection in material handling, safety systems, and manufacturing processes, this sensor offers fast response times and selectable light/dark switching modes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Through-beam sensor, Infrared sensor, Industrial sensor, Object detection sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Housing design: Cylindrical, metal nickel-plated brass
- Sensing range: 0 m to 14 m (max 20 m)
- Light source: Infrared LED
- Light spot size at 14 m: Ø 700 mm
- Angle of dispersion: Approx. 2.8°
- Adjustment: Potentiometer, 270° sensitivity
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP
- Switching mode: Light/dark selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 2 ms
- Switching frequency: 250 Hz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: –25 °C to +70 °C
- Dimensions (H x L x W): 18mm x 78mm x 18mm
- Weight: 0.24 kg
Key Features
- Through-beam photoelectric sensor with infrared LED light source
- Sensing range up to 14 meters, max 20 meters
- Cylindrical metal housing with nickel-plated brass
- IP67 rated enclosure for dust and water protection
- Selectable light/dark switching mode via control cable
- Fast response time of ≤ 2 ms and switching frequency of 250 Hz
- Potentiometer adjustment with 270° sensitivity control
- M12, 4-pin male connector for easy connection
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and security systems
- Packaging and manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 10 V DC to 30 V DC supply voltage
- Durable metal housing extends product life reducing waste
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK VS/VE18-4P3240 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
