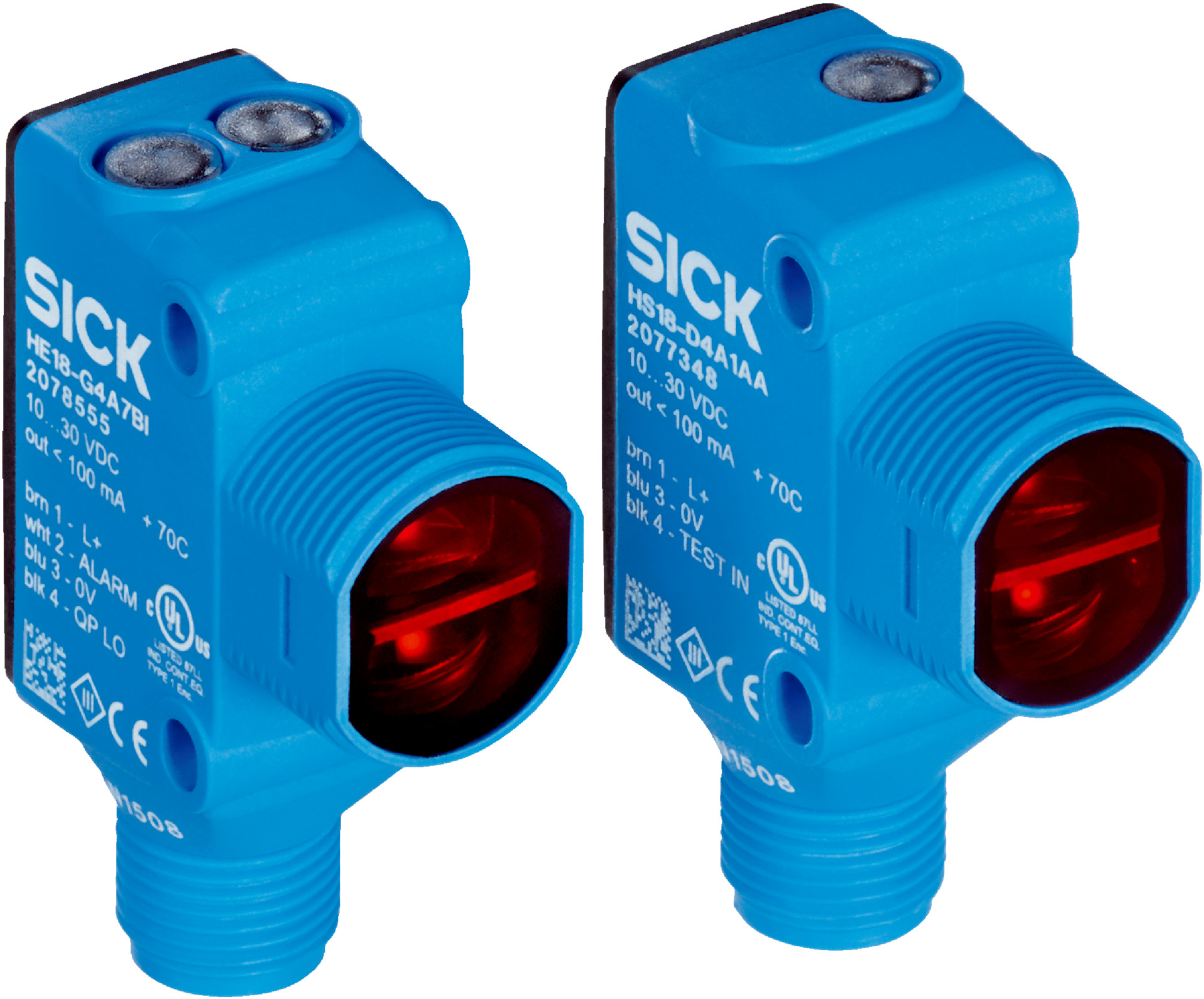

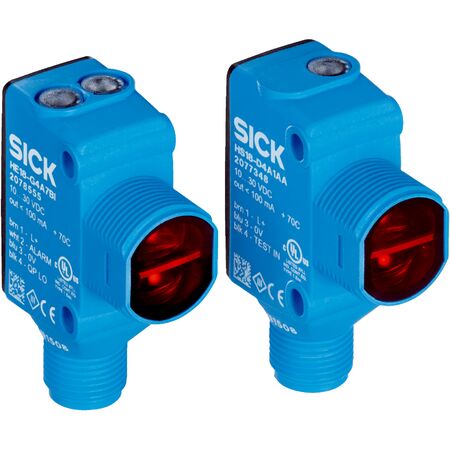

Through-beam Photoelectric Sensor HSE18-F4A1BLA00 | Infrared LED | 15m Sensing Range | IP67/IP69K Rated | by SICK
The HSE18-F4A1BLA00 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 15 meters and an infrared LED light source. With a robust hybrid housing and IP67/IP69K protection, it ensures reliable performance in harsh environments, making it ideal for manufacturing process control and safety monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 15 m (max 20 m)
- Light source: Infrared LED, wavelength 850 nm
- Housing design: Hybrid with M18 thread diameter
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA
- Switching output: Push-pull PNP/NPN complementary
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Enclosure rating: IP67, IP69K
- Ambient operating temperature: -40 °C to +70 °C
- EMC compliance: EN 60947-5-2
- IO-Link: Version 1.1, 38.4 kbit/s data rate, 2.3 ms cycle time
- Dimensions (H x L x W): 49mm x 32mm x 16mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with infrared LED light source
- Sensing range up to 15 meters, max 20 meters
- Hybrid housing design with M18 thread diameter
- Signal strength light bar for easy adjustment
- Push-pull PNP/NPN complementary switching outputs with light/dark switching modes
- Fast response time ≤ 0.5 ms and switching frequency up to 1000 Hz
- Male M12 4-pin connector for connection
- Robust plastic VISTAL® housing with IP67 and IP69K protection ratings
- Wide ambient operating temperature range from -40 °C to +70 °C
- EMC compliant with EN 60947-5-2 industrial radio safety standards
- Equipped with IO-Link V1.1 for digital communication
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67/IP69K rated housing reduces waste by extending product life
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK HSE18-F4A1BLA00 Through-beam Photoelectric Sensor is available for immediate purchase. Ideal for industrial automation and manufacturing process control applications.
