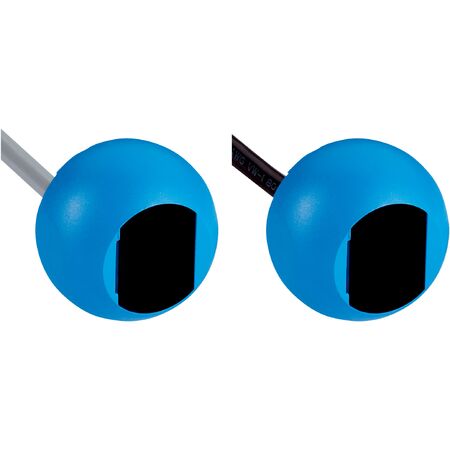

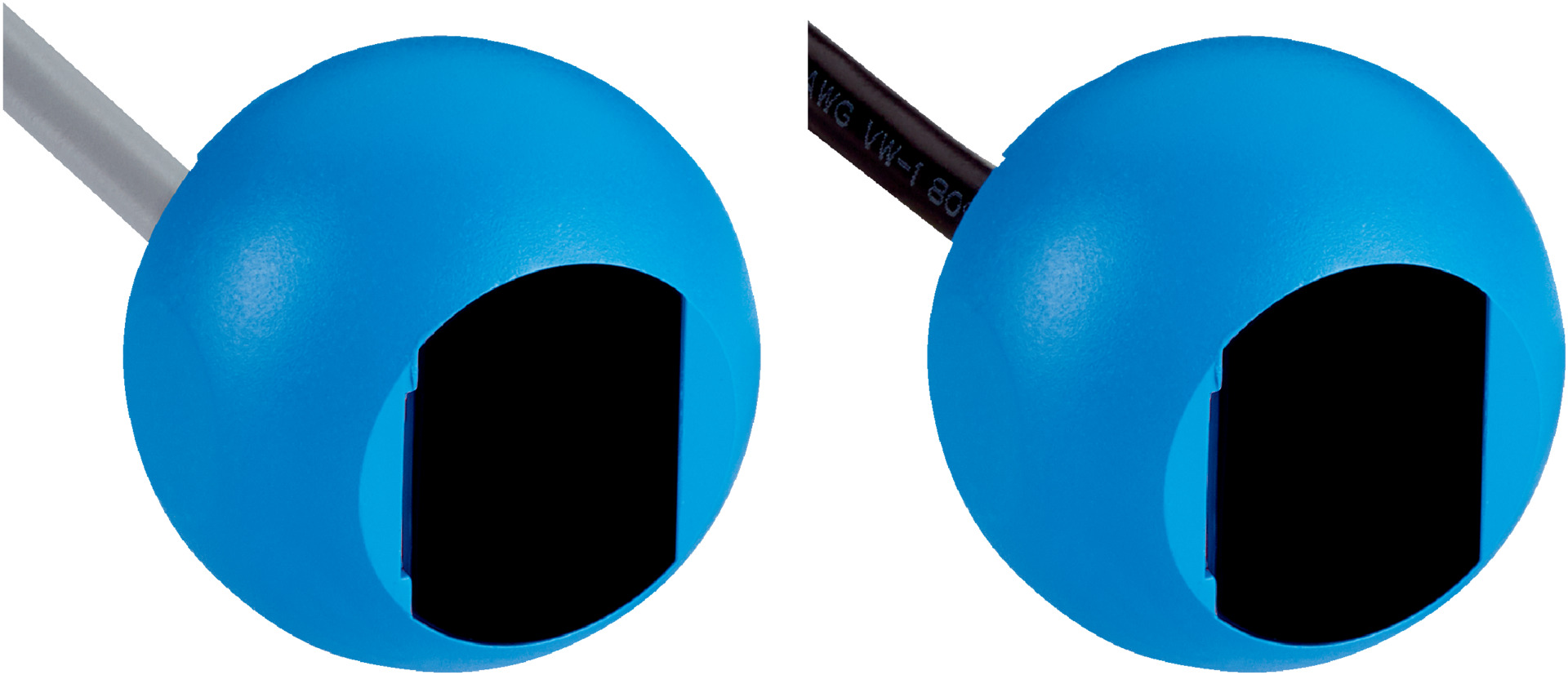

Through-Beam Photoelectric Sensor ZSE18-8AB4B3 | Infrared LED | 15m Sensing Range | IP67 Rated | by SICK
The ZSE18-8AB4B3 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 15 meters and an infrared LED light source. With a high switching frequency of 1,000 kHz and an IP67 rated enclosure, it ensures reliable performance in demanding environments, making it ideal for object detection and manufacturing process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 15 m
- Light source: Infrared LED, wavelength 850 nm
- Switching output: Push-pull PNP/NPN, light and dark switching
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection: Cable with M12 male connector, 4-pin, 150 mm
- Housing material: Plastic ABS, optics material: Plastic PMMA
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 24mm x 26mm x 23mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with infrared LED light source
- Sensing range up to 15 meters
- Hybrid housing design in blue color
- Push-pull PNP/NPN switching output with light and dark switching modes
- High switching frequency of 1,000 kHz and fast response time ≤ 500 µs
- IP67 rated enclosure for dust and water protection
- Wide operating temperature range from -40°C to +55°C
- Cable with M12 male connector, 4-pin, 150 mm length
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ZSE18-8AB4B3 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
