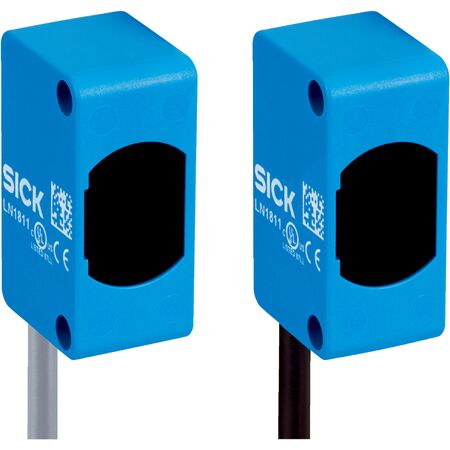

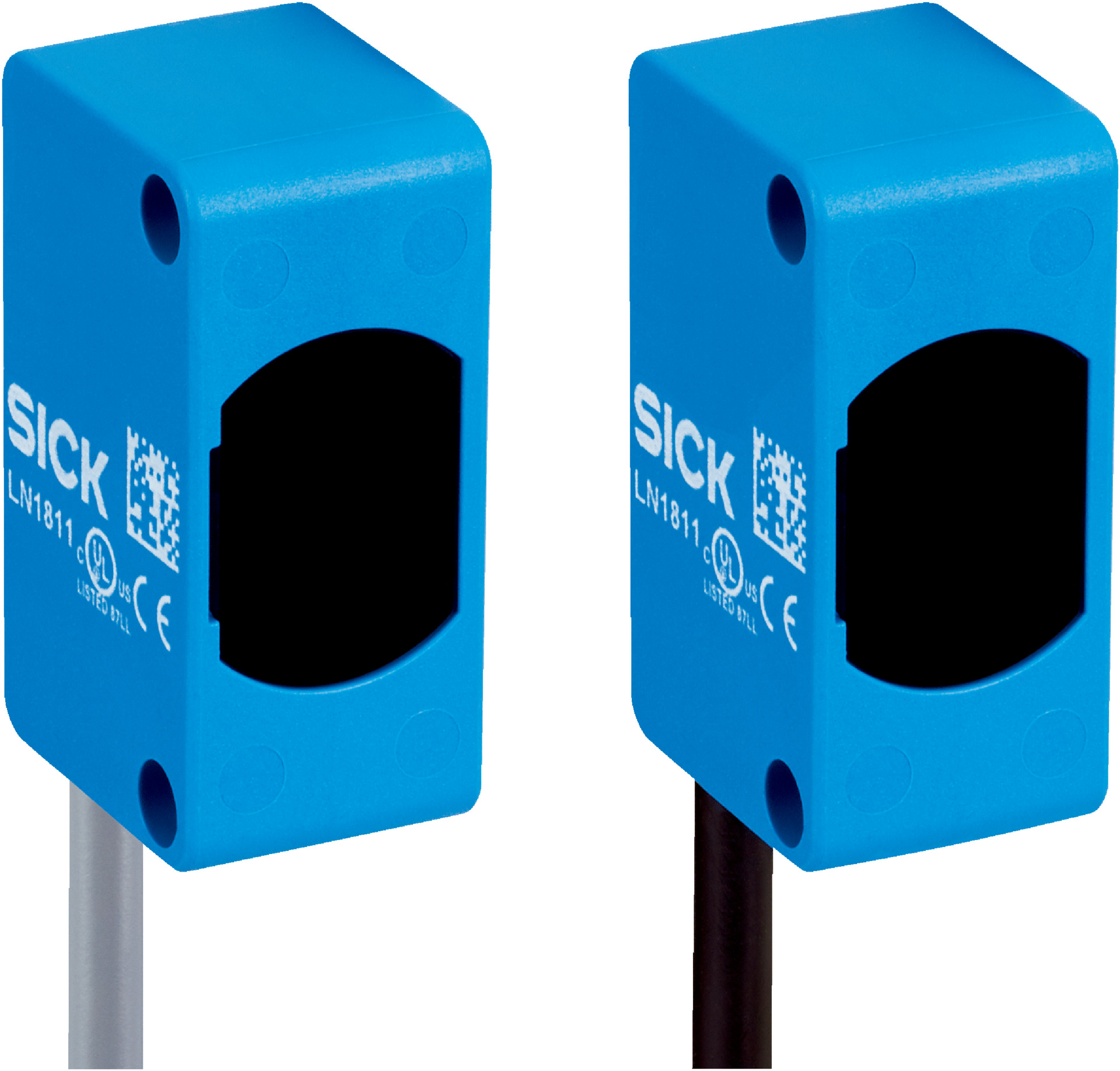

Through-beam Photoelectric Sensor ZSE18-7GZ1G3 | Infrared LED Light | 15m Sensing Range | IP67 Rated | by SICK
The ZSE18-7GZ1G3 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 15 meters and an infrared LED light source. With a high switching frequency of 1,000 kHz and an IP67 rated enclosure, it ensures reliable performance in demanding environments, making it ideal for manufacturing process control and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 17 m
- Sensing range: 0 m to 15 m
- Type of light: Infrared light
- Light source: LED
- Light spot size (distance): Ø 20 mm at 500 mm
- Wave length: 850 nm
- Supply voltage UB: 10 V DC to 30 V DC
- Ripple: < 10%
- Current consumption: ≤ 15 mA
- Switching output: NPN, Light switching
- Output current Imax.: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection type: Cable open end, 4-wire, 2 m
- Cable material: Plastic, PVC
- Conductor cross section: 0.13 mm²
- Circuit protection: A, B, D
- Protection class: III
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Ambient operating temperature: –40 °C to +55 °C
- Ambient temperature, storage: –40 °C to +70 °C
- Dimensions (H x L x W): 31mm x 22.4mm x 13.6mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with infrared LED light source
- Sensing range up to 15 meters
- Compact hybrid housing design in blue color
- High switching frequency of 1,000 kHz
- IP67 rated enclosure for dust and water protection
- Wide operating temperature range from -40°C to +55°C
- NPN light switching output with max output current of 100 mA
- Cable open end, 4-wire, 2 meter length with PVC insulation
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ZSE18-7GZ1G3 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
