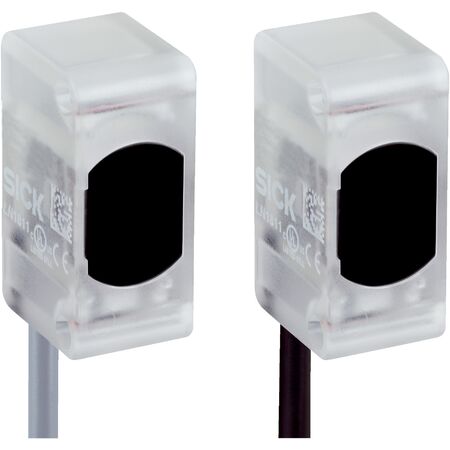

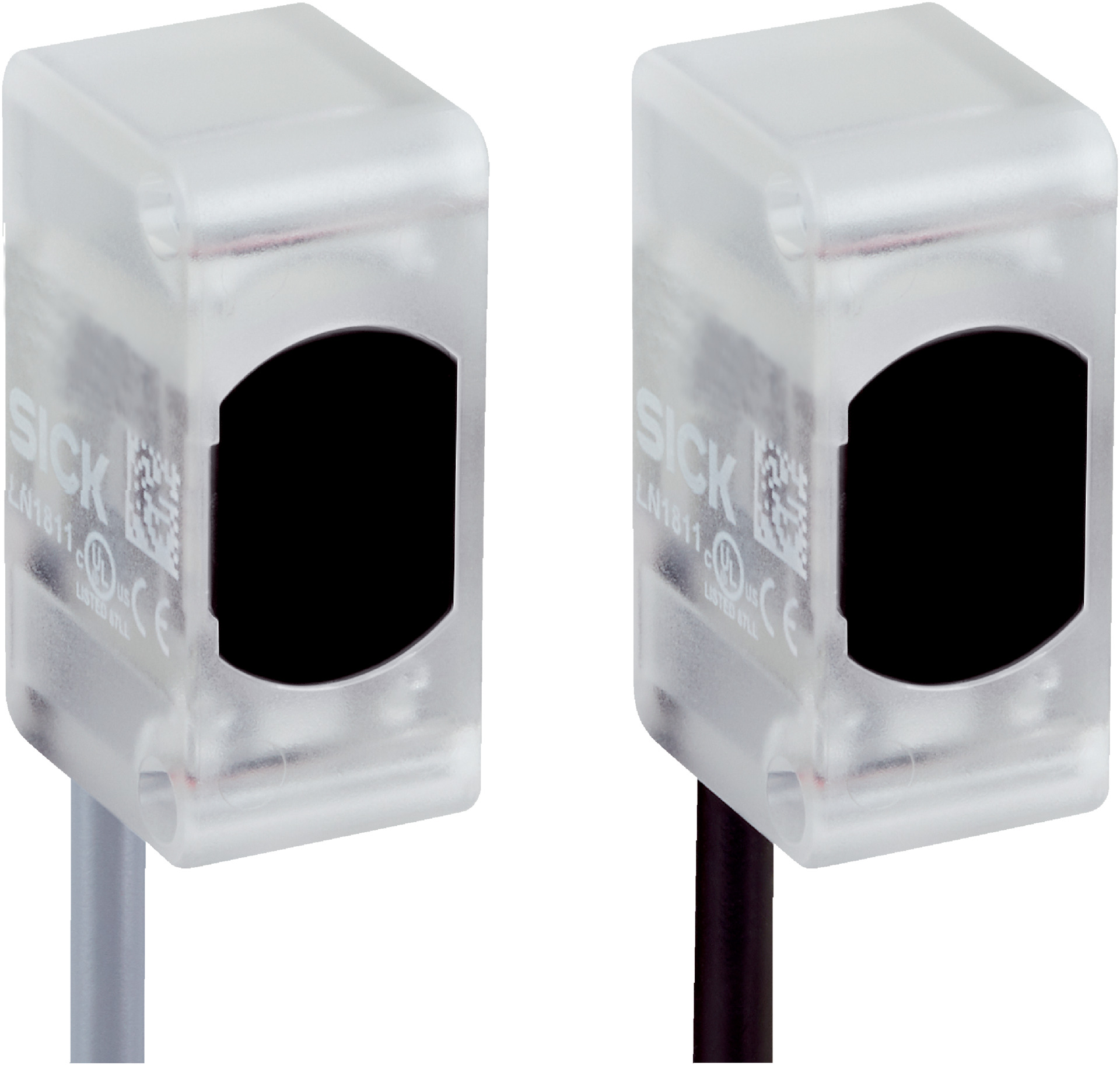

Through-beam Photoelectric Sensor | Infrared LED Light Source | 15m Sensing Range | High Switching Frequency | IP67 Rated | by SICK
The Through-beam Photoelectric Sensor ZSE18-GJZ1G3 features an infrared LED light source and a sensing range of up to 15 meters, making it ideal for industrial automation and safety monitoring applications. With a high switching frequency of 1,000 kHz and an IP67 rated enclosure, this sensor ensures reliable performance in challenging environments, perfect for material handling and packaging systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 17 m
- Sensing range: 0 m to 15 m
- Type of light: Infrared light
- Light source: LED
- Light spot size at 500 mm: Ø 20 mm
- Wavelength: 850 nm
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 10%
- Current consumption: ≤ 15 mA
- Switching output: NPN, Dark switching
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection type: Cable open end, 4-wire, 2 m
- Cable material: Plastic, PVC
- Conductor cross section: 0.13 mm²
- Circuit protection: A, B, D
- Protection class: III
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: -40°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 31mm x 22mm x 14mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with infrared LED light source
- Sensing range up to 15 meters
- Hybrid housing design with transparent color
- Side mounting system for easy installation
- High switching frequency of 1,000 kHz
- IP67 rated enclosure for dust and water protection
- Wide operating temperature range from -40°C to +55°C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Safety and monitoring in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 rated housing reduces waste from replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ZSE18-GJZ1G3 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
