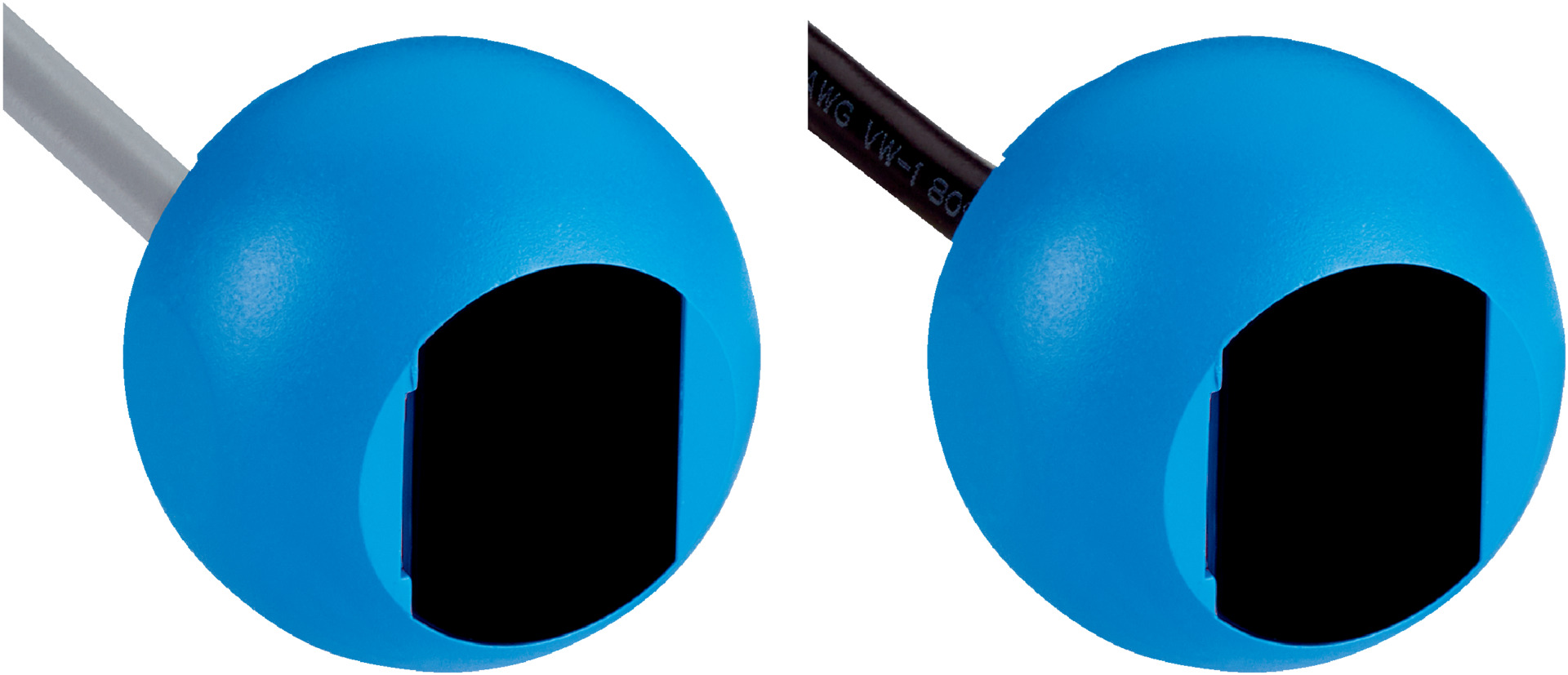

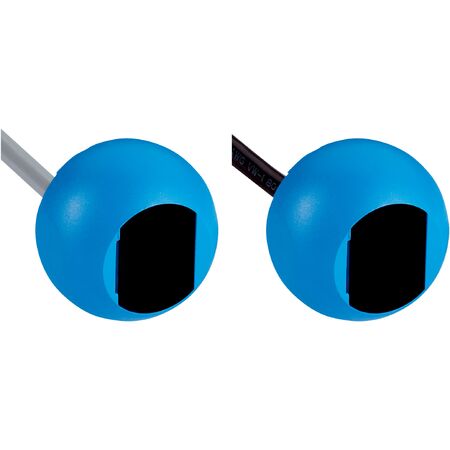

Through-beam Photoelectric Sensor | Infrared LED | 15m Sensing Range | IP67 Rated | by SICK
The Through-beam Photoelectric Sensor ZSE18-8AB5B3 features an infrared LED light source with a sensing range of up to 15 meters, making it ideal for industrial automation and object detection applications. With a high switching frequency of 1,000 kHz and an IP67 rated enclosure, this sensor ensures reliable performance in challenging environments, perfect for manufacturing process control and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 17 m
- Sensing range typical: 0 m to 15 m
- Type of light: Infrared light, wavelength 850 nm
- Light spot size at 500 mm: Ø 20 mm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: Push-pull PNP/NPN, light and dark switching modes
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection type: Cable with male M8, 4-pin connector, 150 mm
- Cable material: Plastic, PVC
- Protection class: III
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 24mm x 26mm x 23mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with infrared LED light source
- Sensing range up to 15 meters
- Hybrid housing design in blue color
- Push-pull switching output with PNP/NPN options
- High switching frequency of 1,000 kHz
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -40°C to +55°C
- Cable with male M8 4-pin connector, 150 mm length
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ZSE18-8AB5B3 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
