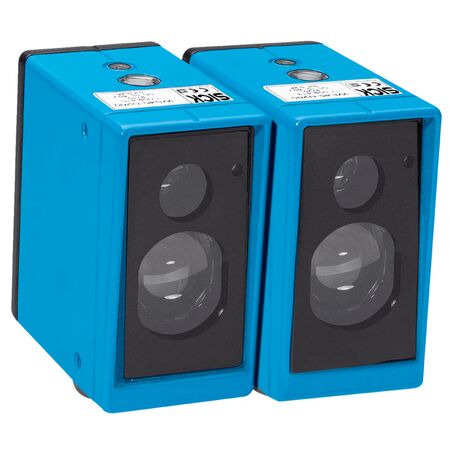

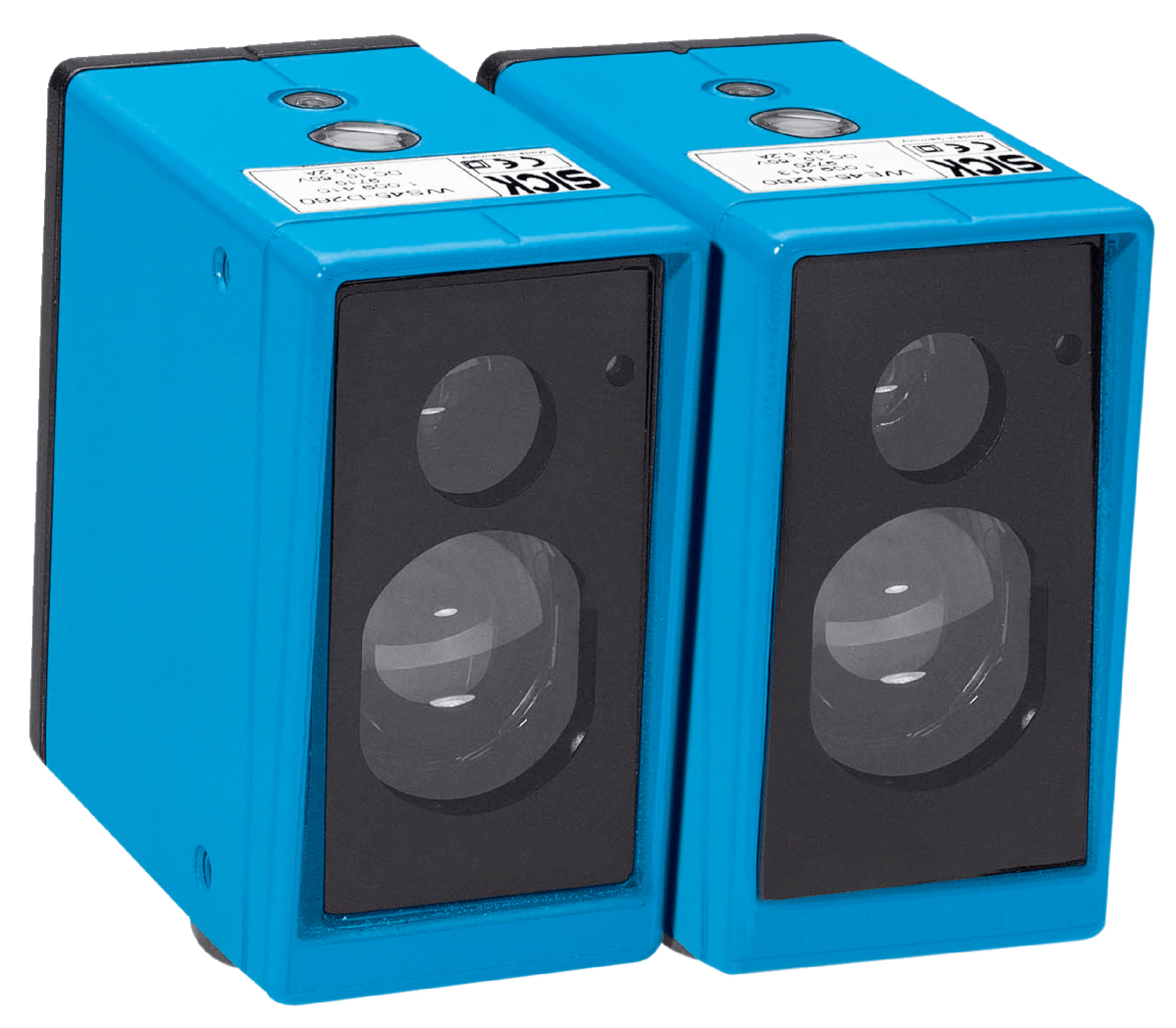

Through-Beam Photoelectric Sensor WS/WE45-R650 | Infrared LED | 300m Sensing Range | IP65 Enclosure | by SICK
The WS/WE45-R650 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 300 m and an infrared LED light source. With an IP65 enclosure rating and adjustable sensitivity, it ensures reliable operation in harsh environments, making it ideal for safety and monitoring applications in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through-Beam Photoelectric Sensor WS/WE45-R650 | Infrared LED | 300m Sensing Range | IP65 Enclosure | by SICK
Brand: SICK
SKU: 1010996
Alternatively Known As: Through-beam sensor, photoelectric sensor, infrared sensor, long-range sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 300 m (max 350 m)
- Light source: Infrared LED
- Light spot size at 300 m: Ø 4.5 m
- Angle of dispersion: Approx. 0.9°
- Adjustment: Potentiometer for sensitivity and time delay
- Supply voltage: 20 V AC/DC to 250 V AC/DC
- Power consumption sender and receiver: ≤ 6 VA each
- Switching output: Relay, electrically isolated, change-over contacts
- Switching mode: Light/dark switching selectable via time delay selector switch
- Switching current: 4 A @ 250 V AC, 4 A @ 24 V DC
- Response time: ≤ 10 ms
- Switching frequency: 10 Hz
- Time functions: Switch-on delay, off delay, ON and OFF delay
- Connection type: Hirschmann 6-pin connector
- Protection class: I
- Enclosure rating: IP65
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Metal
- Front screen heating: Included
- Dimensions (H x L x W): 105mm x 105mm x 60mm
- Weight: 1.6 kg
Key Features
- Through-beam photoelectric sensor with infrared LED light source
- Sensing range up to 300 m, maximum 350 m
- Rectangular metal housing with IP65 enclosure rating
- Adjustable potentiometer for sensitivity and time delay
- Relay output with change-over contacts and selectable light/dark switching
- Front screen heating for reliable operation in cold environments
- Response time ≤ 10 ms and switching frequency up to 10 Hz
- Wide supply voltage range from 20 V AC/DC to 250 V AC/DC
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Long-range sensing in harsh environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WS/WE45-R650 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
