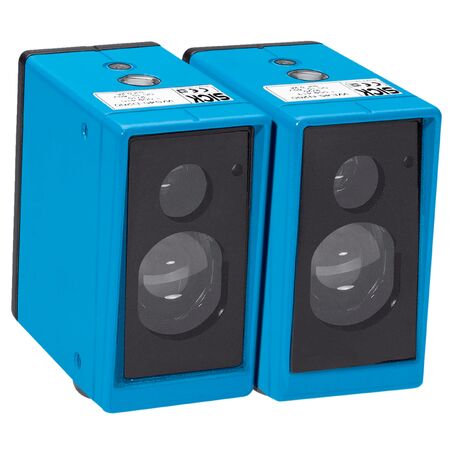

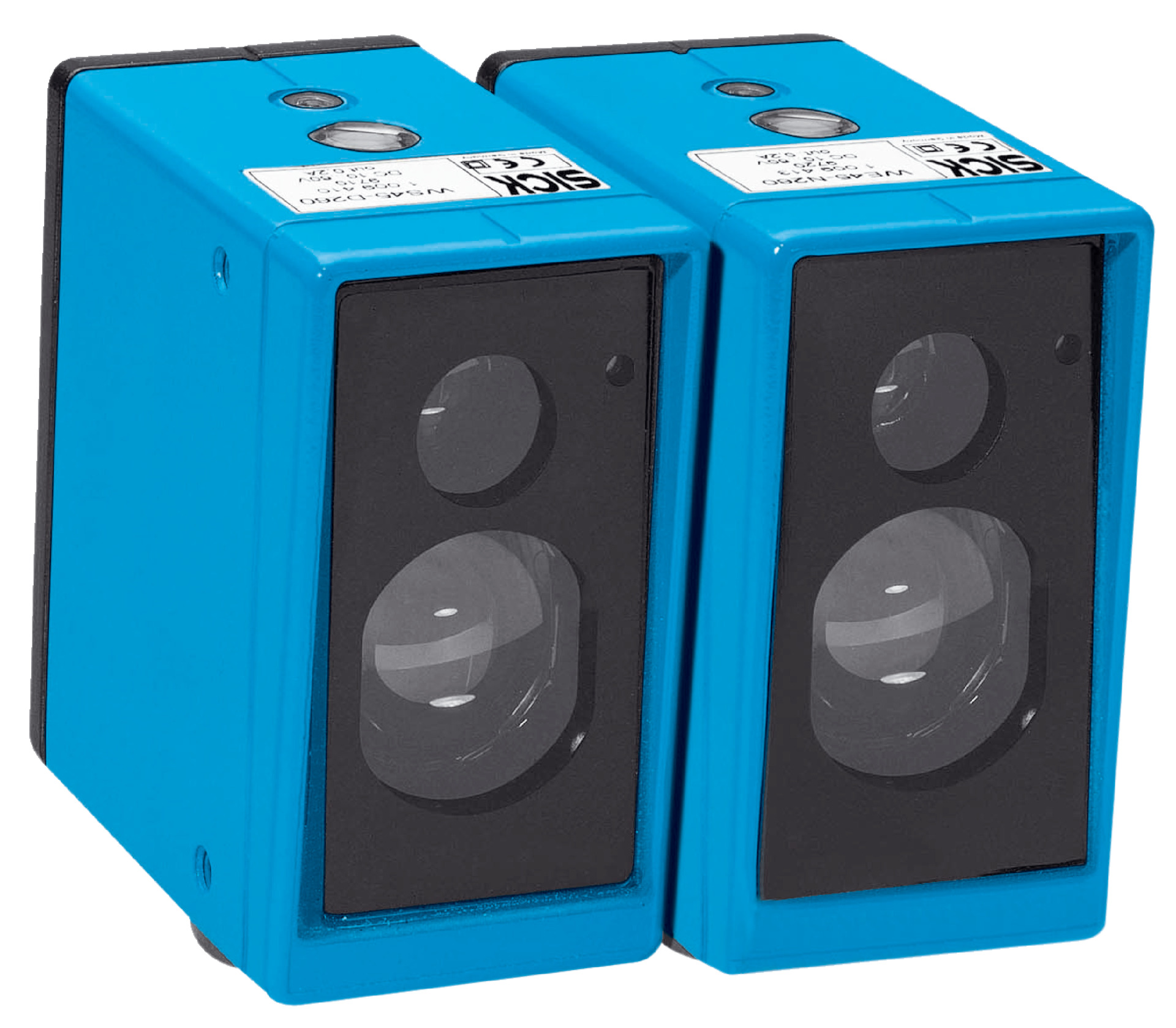

Through-Beam Photoelectric Sensor WS/WE45-N250S02 | Infrared LED | 300m Sensing Range | IP67 Rated | by SICK
The Through-Beam Photoelectric Sensor WS/WE45-N250S02 is designed for industrial automation, featuring a sensing range of up to 300 meters and an infrared LED light source. With an IP67 rating and durable metal housing, it ensures reliable performance in harsh environments, making it ideal for both indoor and outdoor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through-Beam Photoelectric Sensor WS/WE45-N250S02 | Infrared LED | 300m Sensing Range | IP67 Rated | by SICK
Brand: SICK
SKU: 1016799
Alternatively Known As: Through-beam photoelectric sensor, Infrared photoelectric sensor, Long-range photoelectric sensor, WS45-N250S02 sensor, WE45-N250S02 sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 300 m (max 350 m)
- Light source: Infrared LED
- Light spot size at 300 m: Ø 4.5 m
- Angle of dispersion: Approx. 0.9°
- Adjustment: Potentiometer for sensitivity and delay time
- Supply voltage: 10 V DC to 60 V DC
- Power consumption sender and receiver: 250 mA each
- Switching output: NPN complementary
- Output current max: ≤ 200 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Time functions: Switch-on delay, off delay, ON and OFF delay adjustable
- Connection type: Terminal connection with PG13.5, 6-pin
- Circuit protection: Types A, C, D
- Protection class: I
- Enclosure rating: IP67
- Ambient operating temperature: –25 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Housing material: Metal
- Front screen heating: Yes
- Alarm output: 100 mA
- Dimensions (H x L x W): 105mm x 105mm x 60mm
- Weight: 1.6 kg
Key Features
- Through-beam photoelectric sensor with infrared LED light source
- Sensing range up to 300 m with max range 350 m
- Rectangular metal housing with permanent front screen heating
- Adjustable potentiometer for sensitivity and delay time
- Light/dark switching mode with complementary NPN output
- High switching frequency of 1,000 Hz and fast response time ≤ 500 µs
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature from –25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper alignment, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection over long distances
- Outdoor and indoor sensing applications requiring reliable detection
- Harsh environments needing IP67 rated sensors with front screen heating
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable metal housing and IP67 rating reduce replacement frequency and electronic waste
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WS/WE45-N250S02 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and long-range sensing applications.
