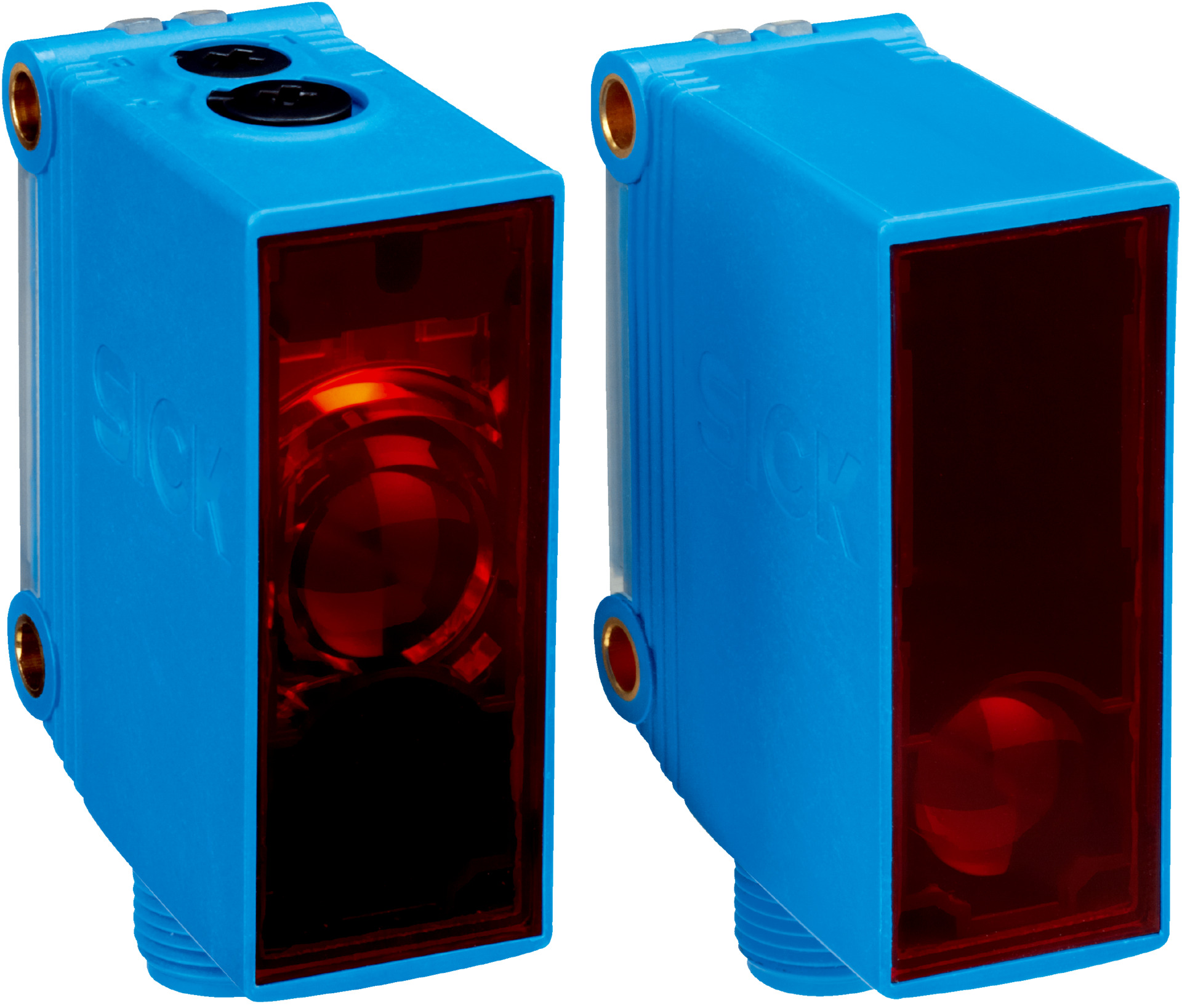

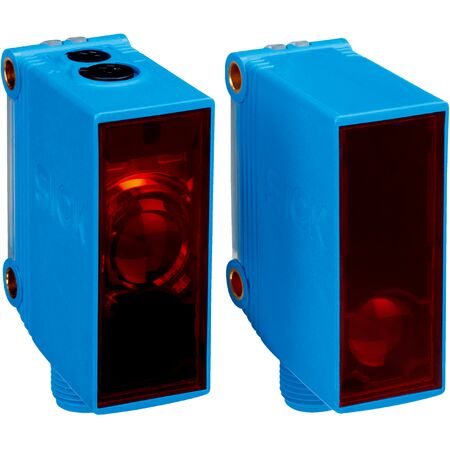

Through-beam Photoelectric Sensor GSE10-P4221 | Infrared LED | 35m Sensing Range | IP67 Enclosure | by SICK
The GSE10-P4221 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 35 meters and an infrared LED light source. With a fast response time of ≤ 500 µs and selectable light/dark switching mode, it's perfect for safety monitoring and object detection in manufacturing processes. Built with a robust IP67-rated housing, this sensor ensures reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 35 m
- Type of light: Infrared light, wavelength 850 nm
- Light source: LED
- Light spot size at 15 m: Ø 433 mm
- Adjustment: Potentiometer, 270°
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Power consumption sender: ≤ 15 mA
- Power consumption receiver: ≤ 20 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Connection type: Male connector M12, 4-pin
- Circuit protection: A, B, C, D
- Protection class: III
- Housing material: Plastic ABS/PMMA
- Enclosure rating: IP67
- EMC standard: EN 60947-5-2
- Operating temperature: –30 °C to +60 °C
- Storage temperature: –40 °C to +70 °C
- UL File No.: NRKH.E348498 & NRKH7.E348498
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with infrared LED light source
- Sensing range up to 35 meters, max 40 meters
- Rectangular housing design with IP67 enclosure rating
- Selectable light/dark switching mode with potentiometer adjustment
- Fast response time of ≤ 500 µs and switching frequency of 1,000 Hz
- Robust plastic ABS/PMMA housing material
- Male connector M12, 4-pin connection type
- Wide ambient operating temperature range from –30 °C to +60 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with ≤ 15 mA sender and ≤ 20 mA receiver
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GSE10-P4221 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
