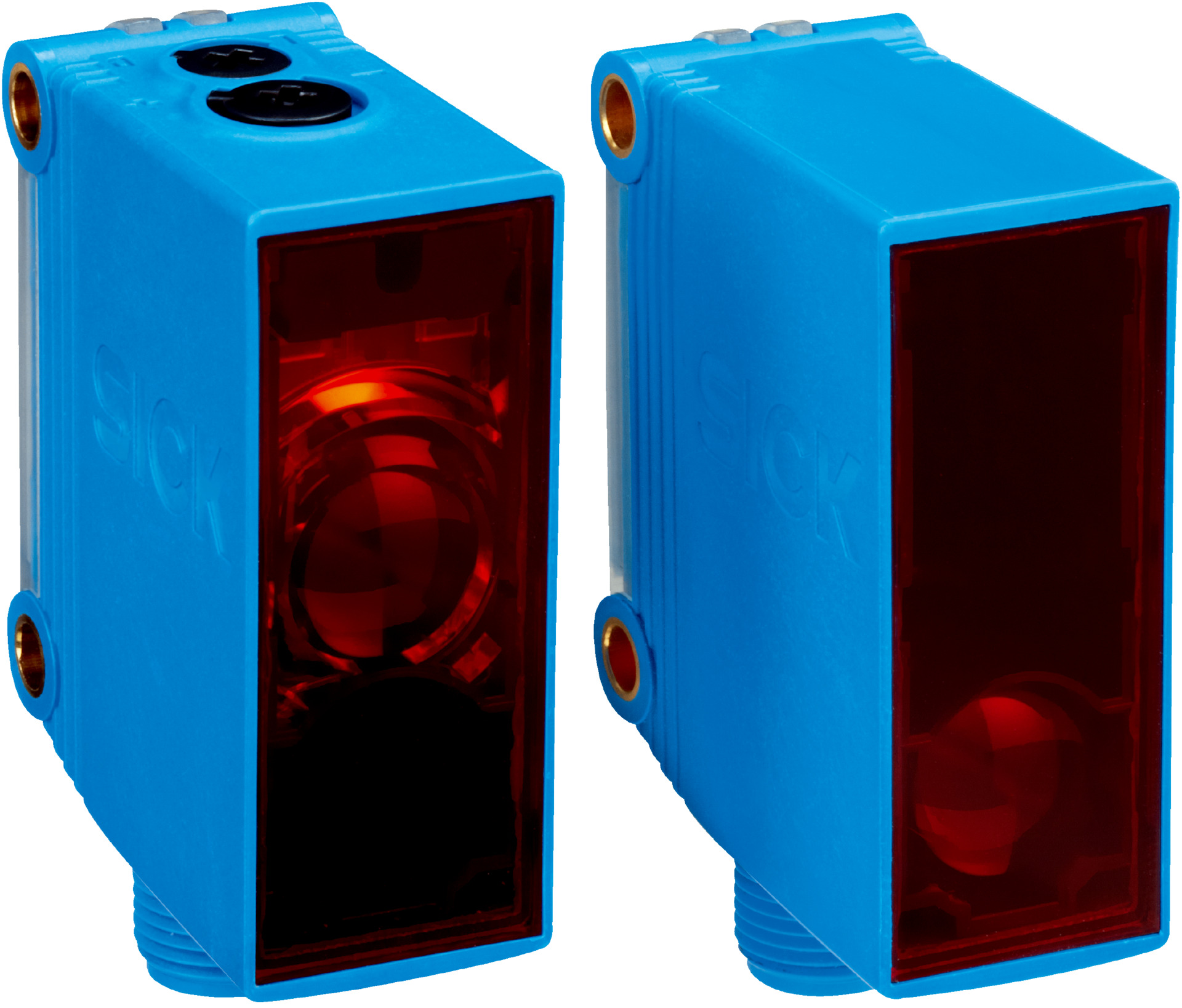

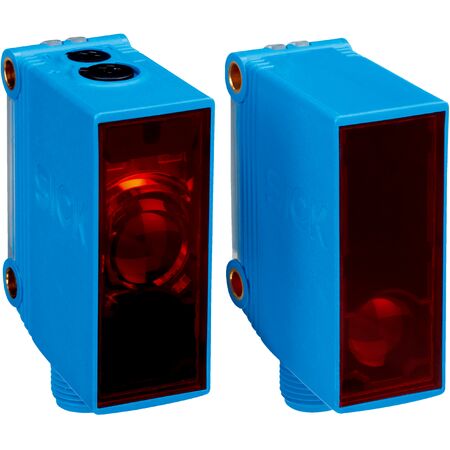

Through-beam Photoelectric Sensor GSE10-P4222 | Infrared LED | 35m Sensing Range | IP67 Rated | by SICK
The GSE10-P4222 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 35 meters and an infrared LED light source. With a fast response time of ≤ 500 µs and selectable light/dark switching mode, it's perfect for object detection and safety monitoring in manufacturing processes. Its robust IP67-rated housing ensures durability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 35 m (max 40 m)
- Type of light: Infrared light, wavelength 850 nm
- Light source: LED
- Light spot size at 15 m: Ø 433 mm
- Adjustment: Potentiometer, 270°
- Supply voltage: 10 V DC to 30 V DC
- Power consumption sender: ≤ 15 mA, receiver: ≤ 20 mA
- Switching output: PNP, max output current ≤ 100 mA
- Switching mode: Light/dark switching selectable
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Connection type: Male connector M12, 4-pin
- Circuit protection: Types A, B, C, D
- Protection class: III
- Housing material: Plastic ABS/PMMA
- Enclosure rating: IP67
- Ambient operating temperature: –30 °C to +60 °C
- Ambient storage temperature: –40 °C to +70 °C
- EMC standard: EN 60947-5-2
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with infrared LED light source
- Sensing range up to 35 meters, maximum 40 meters
- Rectangular housing design with IP67 enclosure rating
- Selectable light/dark switching mode with potentiometer adjustment
- Fast response time of ≤ 500 µs and switching frequency of 1,000 Hz
- Robust plastic housing made of ABS/PMMA
- Male M12 4-pin connector for easy connection
- Wide ambient operating temperature range from –30 °C to +60 °C
- Includes mounting brackets for easy installation
- Certified for electromagnetic compatibility (EN 60947-5-2) and multiple international standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GSE10-P4222 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
