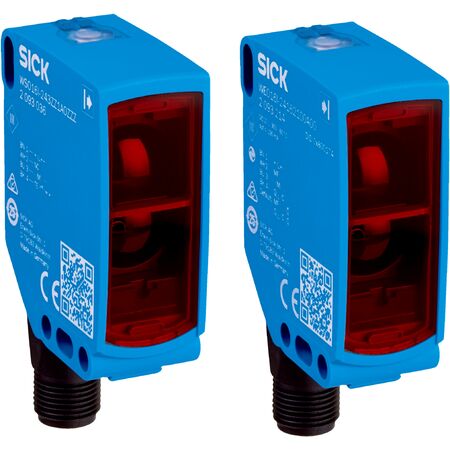

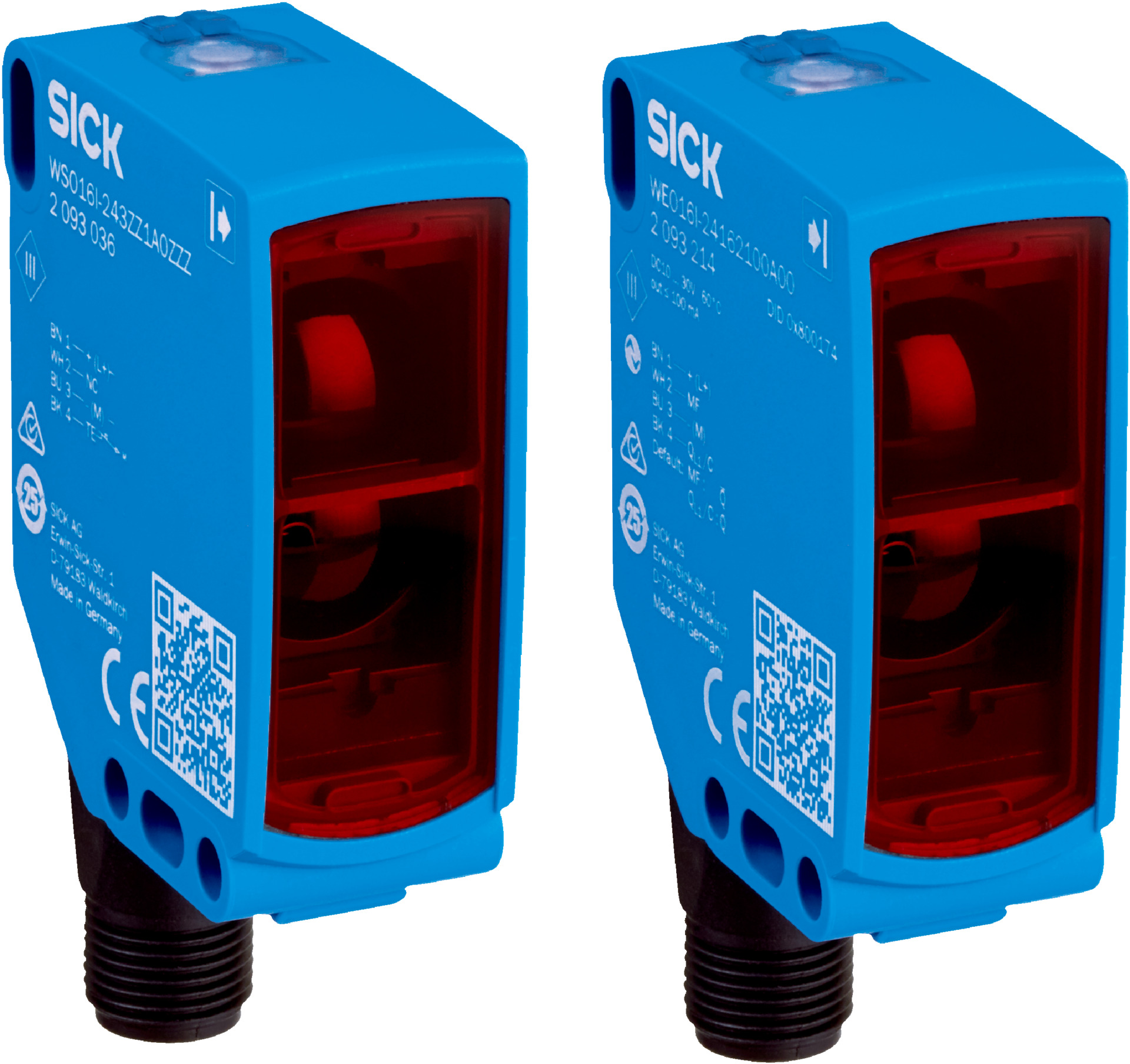

Through-Beam Photoelectric Sensor | Infrared LED | 45m Sensing Range | IP66/IP67/IP69 Rated | by SICK
The Through-Beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 45 meters and an infrared LED light source. With a fast response time of ≤ 500 µs and robust IP66/IP67/IP69 protection, it's perfect for object detection and safety monitoring in manufacturing processes. Ideal for material handling and conveyor systems, this sensor ensures reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 0 to 45 m (max), recommended 0 to 30 m
- Light source: Infrared LED, wavelength 850 nm
- Light spot size: Ø 110 mm at 8 m
- Response time: ≤ 500 µs
- Switching frequency: up to 1,000 Hz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA without load
- Output type: 2 complementary push-pull outputs (PNP/NPN)
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40°C to +60°C
- Connection: Male M12, 4-pin connector
- Communication: IO-Link V1.1, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 56mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 45 meters with recommended range 0 to 30 meters
- Infrared LED light source with point-shaped light spot
- High LED service life of 100,000 hours at 25°C
- IO-Link interface for sensor parameter configuration and Smart Task functions
- Robust plastic VISTAL® housing with IP66, IP67, and IP69 protection ratings
- Operating temperature range from -40°C to +60°C
- Fast response time of ≤ 500 µs and switching frequency up to 1,000 Hz
- Reverse polarity, overcurrent, and short-circuit protected outputs
- Multiple LED indicators for alignment, operation, and status
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring, alignment, and configuration using IO-Link.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Robust design reduces environmental impact through durability
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WSE16I-24162100A00 through-beam photoelectric sensor is available for immediate purchase, ideal for industrial automation and safety applications.
