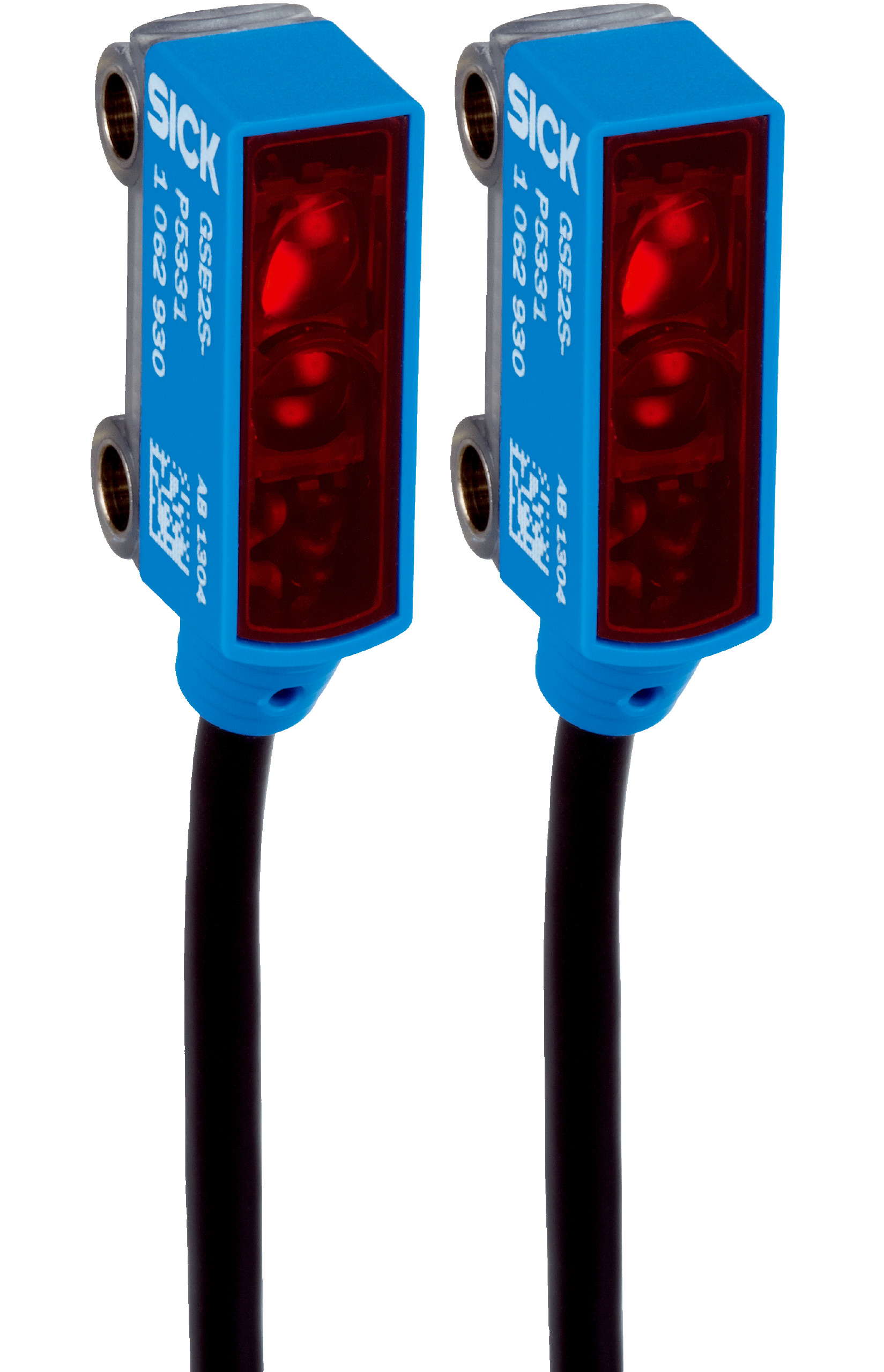

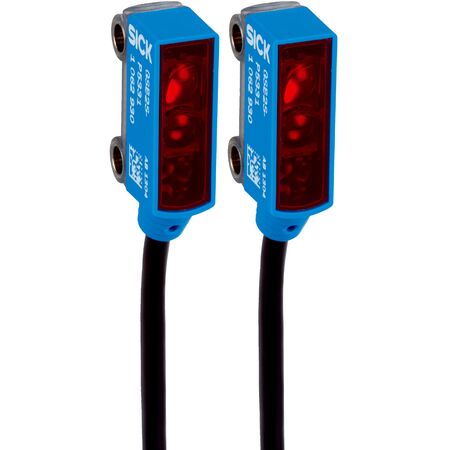

Through-Beam Photoelectric Sensor | Infrared LED Light Source | IP67 Enclosure | 3m Sensing Range | by SICK
The Through-Beam Photoelectric Sensor GSE2S-P1321S01 features an infrared LED light source and a robust IP67-rated housing, making it perfect for industrial automation and object detection. With a sensing range of up to 3 meters and a fast response time of under 0.6 ms, this sensor is designed for reliable performance in manufacturing processes and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 3 m
- Type of light: Infrared light, wavelength 880 nm
- Light source: LED
- Light spot size at 1500 mm: Ø 145 mm
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Current consumption: 20 mA
- Switching output: PNP, light switching mode
- Output current max: ≤ 50 mA
- Response time: < 0.6 ms
- Switching frequency: 800 Hz
- Connection type: Cable, 3-wire, 2 m length
- Cable material: Plastic, PVC, diameter Ø 3 mm
- Circuit protection: Types A, C, D
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: –25 °C to +50 °C
- Storage temperature: –40 °C to +75 °C
- Dimensions (H x L x W): 22mm x 14mm x 8mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with infrared LED light source
- Rectangular housing design with IP67 enclosure rating
- Sensing range up to 3 meters
- Fast response time under 0.6 ms and switching frequency of 800 Hz
- Robust plastic ABS housing and PMMA optics material
- Cable connection with 3-wire, 2 m PVC cable
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GSE2S-P1321S01 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
