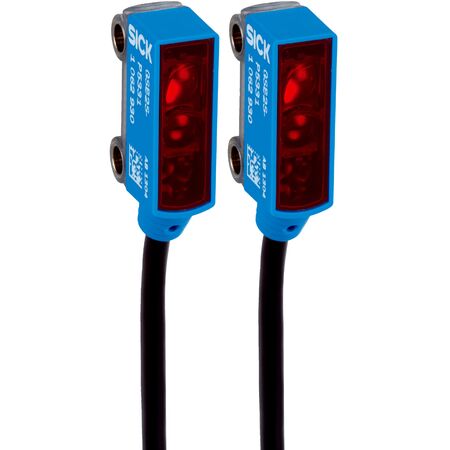

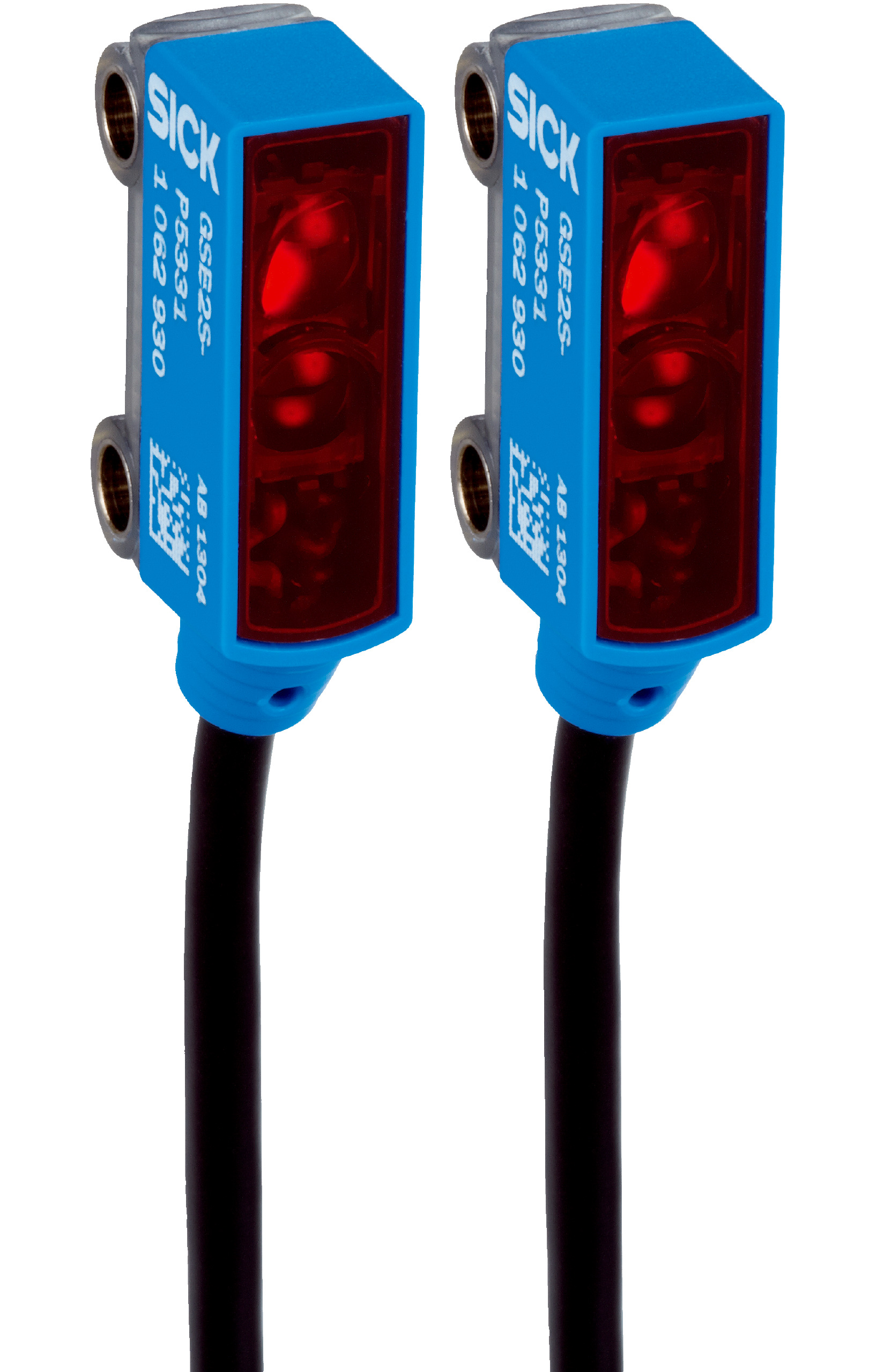

Through-Beam Photoelectric Sensor | Infrared LED Light Source | IP67 Rated | 3m Sensing Range | by SICK
The Through-Beam Photoelectric Sensor is designed for industrial automation, featuring an infrared LED light source and a sensing range of up to 3 meters. With a fast response time of under 0.6 ms and an IP67 enclosure rating, this sensor is perfect for safety monitoring and object detection in manufacturing processes, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 3 m
- Type of light: Infrared light, wavelength 850 nm
- Light source: LED
- Light spot size at 1500 mm distance: Ø 145 mm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: NPN, dark switching
- Output current max: ≤ 50 mA
- Response time: < 0.6 ms
- Switching frequency: 800 Hz
- Connection type: 3-wire cable, 2 m length, PVC material
- Cable diameter: Ø 3 mm
- Circuit protection: Types A, C, D
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25°C to +50°C
- Storage temperature: -40°C to +75°C
- Dimensions (H x L x W): 21.8mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with infrared LED light source
- Rectangular housing design with IP67 enclosure rating
- Sensing range up to 3 meters
- Fast response time under 0.6 ms and switching frequency of 800 Hz
- NPN dark switching output with max output current of 50 mA
- Cable connection with 3-wire, 2 m PVC cable
- Robust plastic ABS housing and PMMA optics material
- Wide ambient operating temperature range from -25°C to +50°C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GSE2S-E1321S03 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
