Through-Beam Photoelectric Sensor | Infrared LED 880 nm | IP67 Rated | Fast Response Time | by SICK

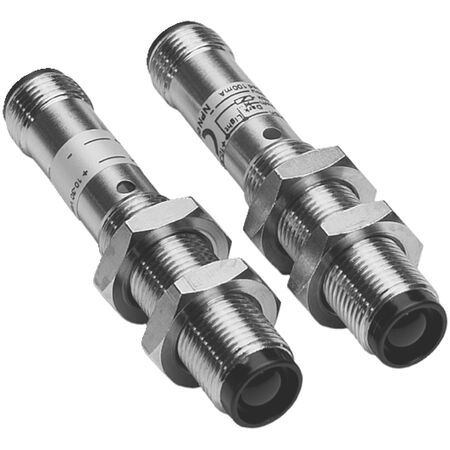

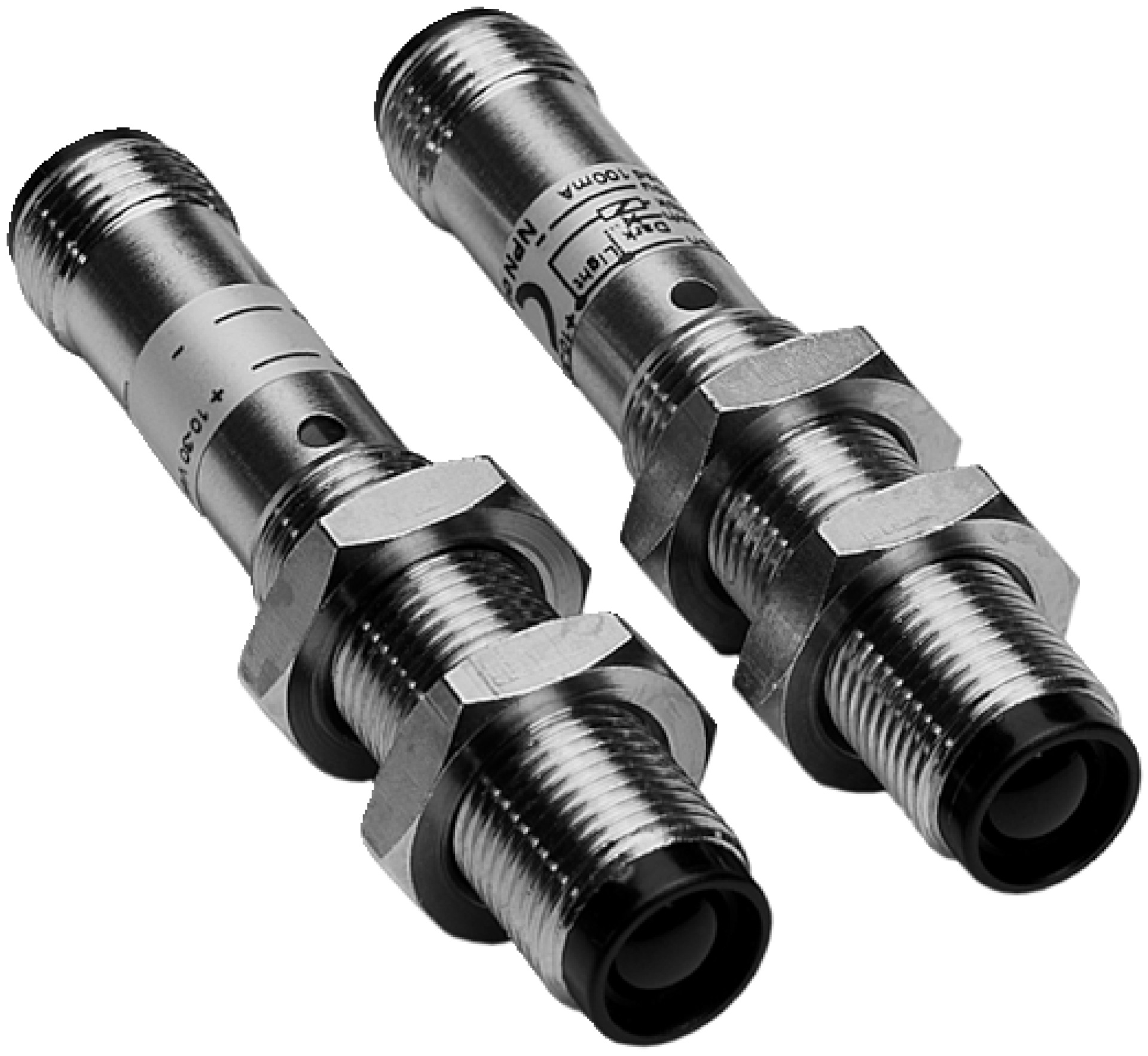

The Through-Beam Photoelectric Sensor VS/VE12-2N132 features an infrared LED light source at 880 nm, providing a sensing range of up to 5 meters. With an IP67 rating for dust and water protection, this sensor is perfect for industrial automation, safety systems, and manufacturing process control. Its fast response time of ≤ 2 ms and selectable light/dark switching mode make it a reliable choice for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: NPN transistor
- Switching mode: Light/dark selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 2 ms
- Switching frequency: 250 Hz
- Cable: 4-wire, 2 m length, PVC material
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +70 °C
- Housing material: Metal, nickel-plated brass and PA
- Optics material: Plastic, PMMA
- Light source: Infrared LED at 880 nm wavelength
- Focus angle: Approx. 1.4°
- Light spot size at 4 m: Ø 100 mm
- Dimensions (H x L x W): 12mm x 55.3mm x 12mm
- Weight: 0.108 kg
Key Features
- Through-beam photoelectric sensing principle
- Infrared LED light source with 880 nm wavelength
- Sensing range up to 5 meters
- Cylindrical metal housing with nickel-plated brass and PA
- IP67 rated for dust and water protection
- Selectable light/dark switching mode via control cable
- Fast response time of ≤ 2 ms and switching frequency of 250 Hz
- Cable connection with 4-wire, 2 m PVC cable
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Safety and security systems
- Manufacturing process control
- Material handling and packaging
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK VS/VE12-2N132 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
