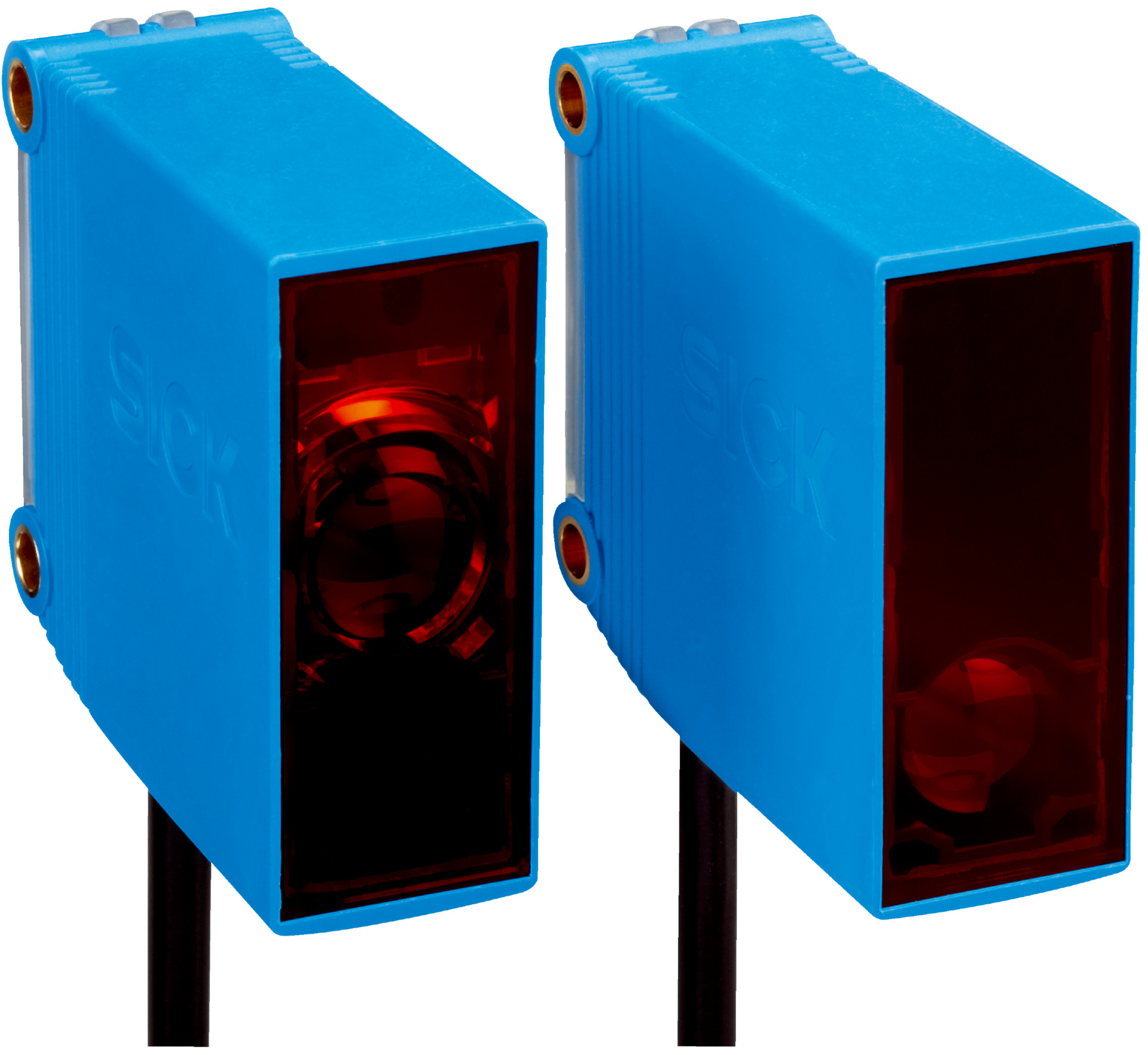

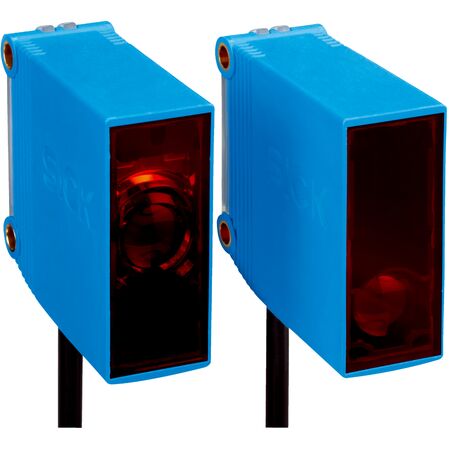

Through-Beam Photoelectric Sensor GSE10-R3721 | Infrared LED | IP67 Rated | by SICK
The GSE10-R3721 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 40 meters and a fast response time of ≤ 10 ms. With its robust IP67 rating, this sensor is perfect for harsh environments, ensuring reliable object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 40 m
- Type of light: Infrared light (850 nm wavelength)
- Light source: LED
- Light spot size at 15 m: Ø 433 mm
- Supply voltage: 24 V AC/DC to 240 V AC/DC
- Power consumption sender: ≤ 2 VA, receiver: ≤ 2.5 VA
- Switching output: Relay, SPDT, electrically isolated
- Switching mode: Light/dark switching
- Max switching load: 0.11 A (250 V DC), 3 A (30 V DC), 3 A (250 V AC)
- Response time: ≤ 10 ms
- Switching frequency: 20 Hz
- Connection: 5-wire cable, 2 m length, PVC insulation
- Protection class: II
- Housing material: Plastic ABS/PMMA
- Enclosure rating: IP67
- Operating temperature: –30 °C to +60 °C
- Storage temperature: –40 °C to +70 °C
- EMC standards: EN 60947-5-2, EN 61000-6-3
- UL File No.: NRKH.E348498 & NRKH7.E348498
- Dimensions (H x L x W): 50mm x 52mm x 20mm
- Weight: 0.23 kg
Key Features
- Through-beam photoelectric sensing principle
- Rectangular housing design with infrared LED light source
- Sensing range up to 35 meters
- Relay SPDT electrically isolated switching output
- High protection rating IP67 for harsh environments
- Fast response time of ≤ 10 ms
- Wide operating temperature range from –30 °C to +60 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with ≤ 2.5 VA power usage
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK GSE10-R3721 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
