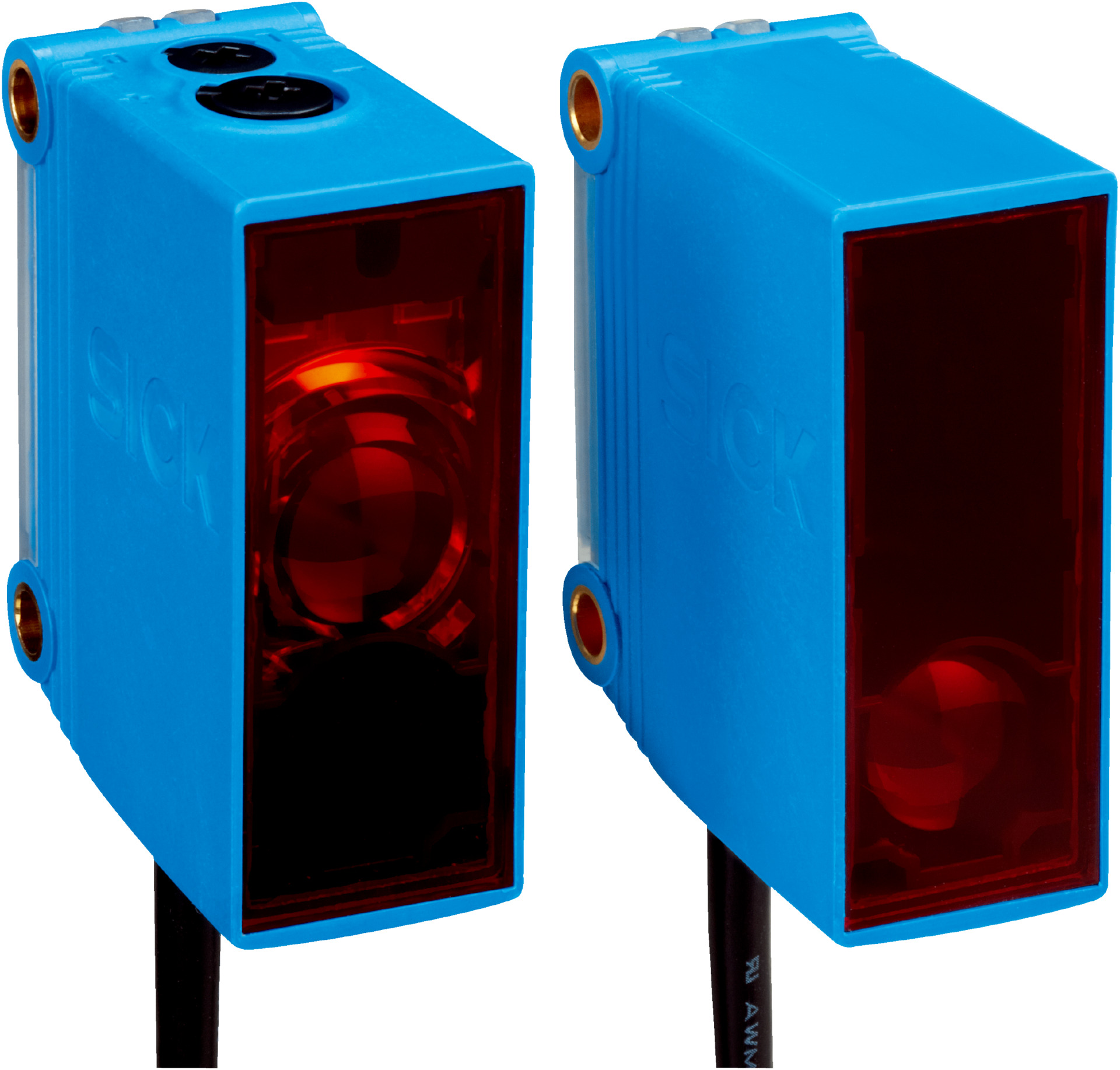

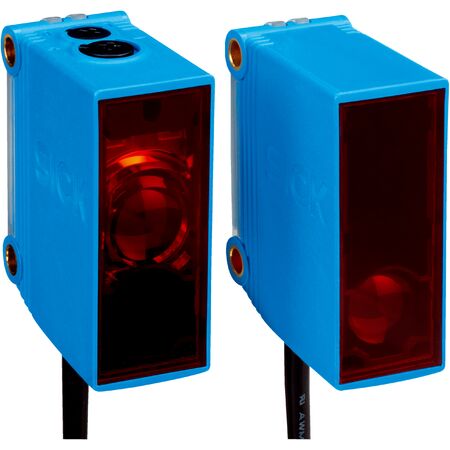

Through-beam Photoelectric Sensor GSE10-N1221 | Infrared Light Source | 35m Sensing Range | IP67 Rated | by SICK
The Through-beam Photoelectric Sensor GSE10-N1221 is designed for industrial automation, featuring a sensing range of up to 35 meters and an infrared light source. With a robust IP67 rated housing and a fast response time of ≤ 500 µs, this sensor is perfect for object detection in manufacturing and safety systems, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 35 m (max 40 m)
- Type of light: Infrared light, wavelength 850 nm
- Light source: LED
- Light spot size at 15 m: Ø 433 mm
- Adjustment: Potentiometer, 270°
- Supply voltage: 10 V DC to 30 V DC
- Power consumption sender: ≤ 15 mA
- Power consumption receiver: ≤ 20 mA
- Switching output: NPN
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Connection type: Cable, 3-wire, 2 m, PVC
- Circuit protection: A, B, C, D
- Protection class: III
- Housing material: Plastic ABS/PMMA
- Enclosure rating: IP67
- EMC standard: EN 60947-5-2
- Operating temperature: -30°C to +60°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.18 kg
Key Features
- Through-beam photoelectric sensor with infrared light source
- Sensing range up to 35 meters, max 40 meters
- Rectangular housing design with LED light source
- Adjustable potentiometer with 270° rotation
- High switching frequency of 1000 Hz and fast response time ≤ 500 µs
- NPN switching output with selectable light/dark switching mode
- Robust plastic ABS/PMMA housing with IP67 enclosure rating
- Wide ambient operating temperature range from -30°C to +60°C
- Cable connection with 3-wire, 2 meter PVC cable
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Safety and security systems
- Material handling and conveyor systems
- Manufacturing process control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GSE10-N1221 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety system applications.
