Through-Beam Photoelectric Sensor | IO-Link Communication | IP66/IP67/IP69K Rated | Fast Response Time | by SICK

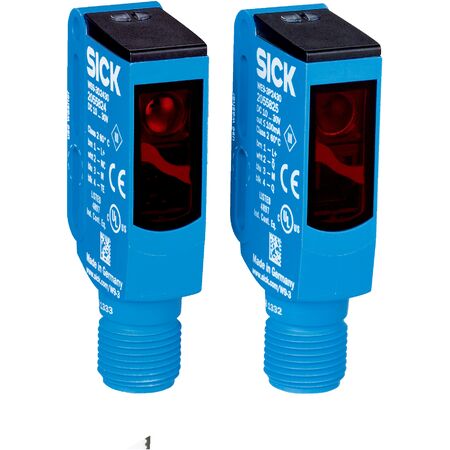

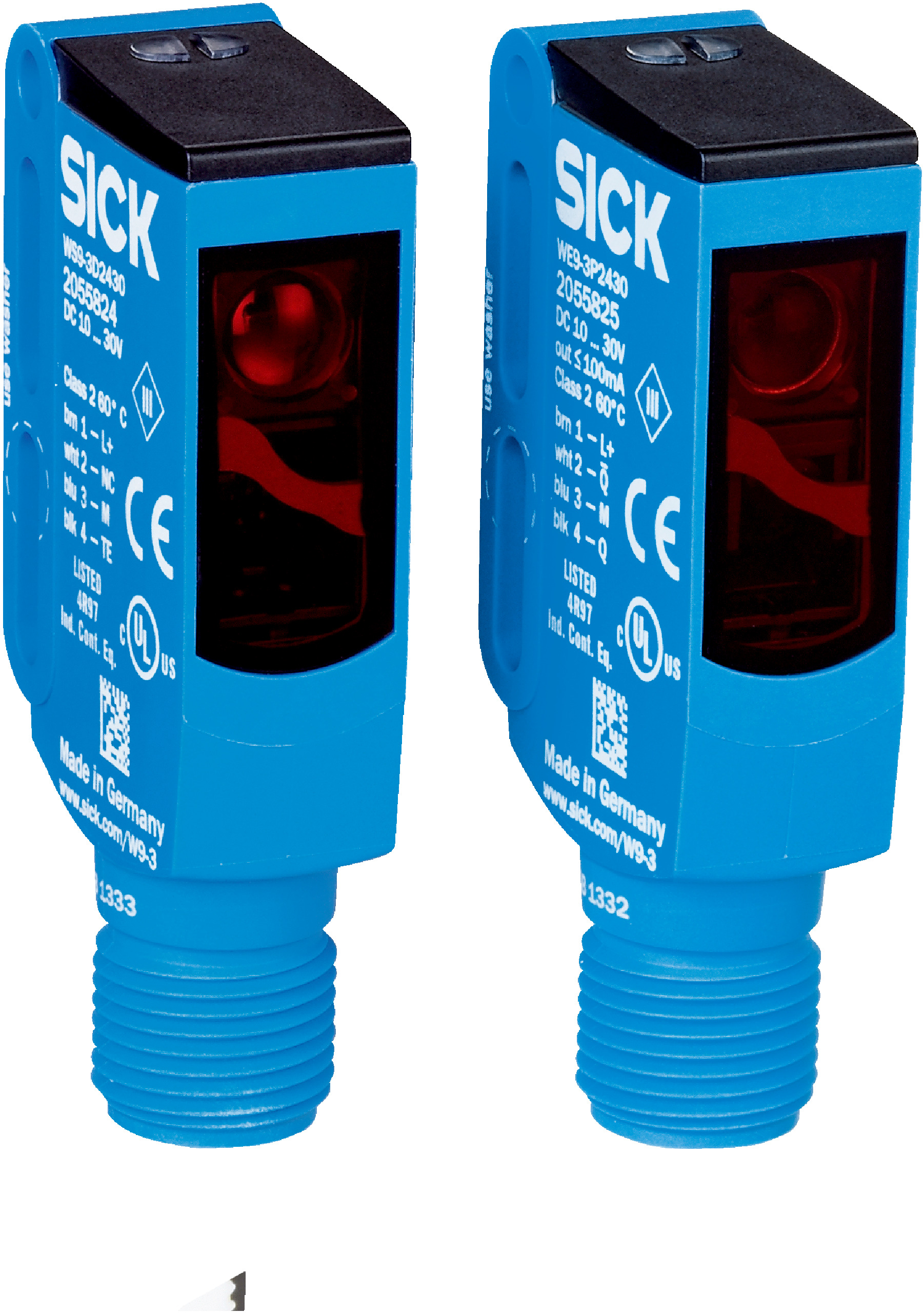

The Through-Beam Photoelectric Sensor WSE9C-3P2430A70 is designed for industrial automation, featuring IO-Link communication and a robust IP66/IP67/IP69K rated housing. With a fast response time of under 0.5 ms and a sensing range of up to 10 meters, it's perfect for object detection and manufacturing process control. Built for reliability in harsh environments, this sensor ensures efficient operation in production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, max output current ≤ 100 mA
- Switching mode: Light/dark switching
- Response time: < 0.5 ms
- Switching frequency: up to 1000 Hz
- Connection: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 2.3 ms
- Process data length: 16 Bit
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Visible red light with 650 nm wavelength
- Sensing range up to 7 meters, max 10 meters
- PinPoint LED light source with 25 mm spot size at 1 m
- IO-Link adjustable settings
- High switching frequency up to 1000 Hz
- Robust plastic VISTAL® housing with IP66, IP67, IP69K protection
- Operating temperature range from -40 °C to +60 °C
- Male M12 4-pin connector
- Light/dark switching mode with PNP output
- Fast response time under 0.5 ms
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and configuration, especially for IO-Link communication setup.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP69K housing extends product life and reduces waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WSE9C-3P2430A70 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
