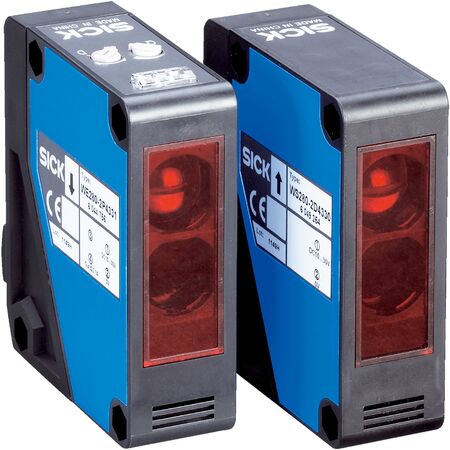

Through-Beam Photoelectric Sensor WSE280-2P4331 | IP66 & IP67 Rated | 50m Sensing Range | 1000 Hz Switching Frequency | by SICK
The WSE280-2P4331 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a robust IP66 and IP67 rated housing for reliable performance in harsh environments. With a sensing range of up to 50 meters and a high switching frequency of 1,000 Hz, it’s perfect for object detection and safety monitoring in manufacturing lines. Built for efficiency, it operates within a temperature range of -25°C to +55°C, making it ideal for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Power consumption sender: ≤ 20 mA
- Power consumption receiver: ≤ 20 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Cable gland
- Circuit protection: A, B, C, D
- Protection class: III
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67
- Ambient operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Light spot size at 20 m: Ø 0.6 m
- Sensing range max: 60 m
- Dimensions (H x L x W): 75mm x 63mm x 24mm
- Weight: 0.3 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 50 meters
- Rectangular housing design with LED light source
- Selectable light/dark switching mode via rotary switch
- High switching frequency of 1,000 Hz
- Robust housing with IP66 and IP67 protection ratings
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with ≤ 20 mA for sender and receiver
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WSE280-2P4331 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
