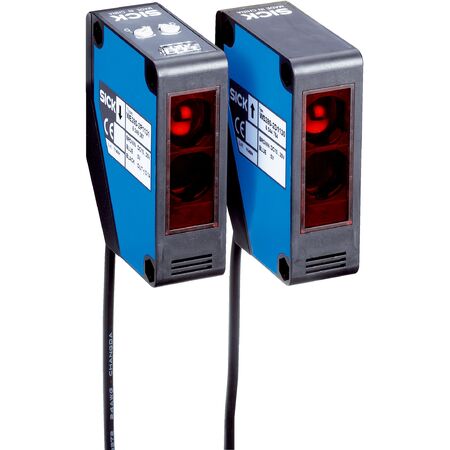

Through-beam Photoelectric Sensor WSE280-2N1131 | IP66 & IP67 Rated | 50m Sensing Range | High Switching Frequency | by SICK
The WSE280-2N1131 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a robust ABS housing with IP66 and IP67 ratings. With a sensing range of up to 50 meters and a high switching frequency of 1000 Hz, it ensures reliable object detection and safety monitoring in manufacturing processes. Ideal for material handling and packaging systems, this sensor is built for durability and low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption sender and receiver: ≤ 20 mA each
- Switching output: NPN transistor
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection: 3-wire cable, 2 m length, PVC insulation
- Protection class: III
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP66 and IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- EMC compliance: EN 60947-5-2
- Includes mounting bracket BEF-W280
- Dimensions (H x L x W): 75mm x 63mm x 24mm
- Weight: 0.3 kg
Key Features
- Through-beam photoelectric sensing principle
- Rectangular housing design with visible red LED light source
- Sensing range up to 50 meters
- Selectable light/dark switching mode via rotary switch
- High switching frequency of 1000 Hz
- Robust plastic ABS housing with IP66 and IP67 protection ratings
- Includes mounting bracket BEF-W280
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with ≤ 20 mA per sender and receiver
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WSE280-2N1131 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
