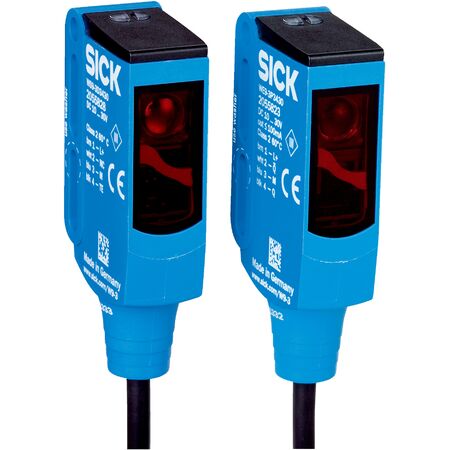

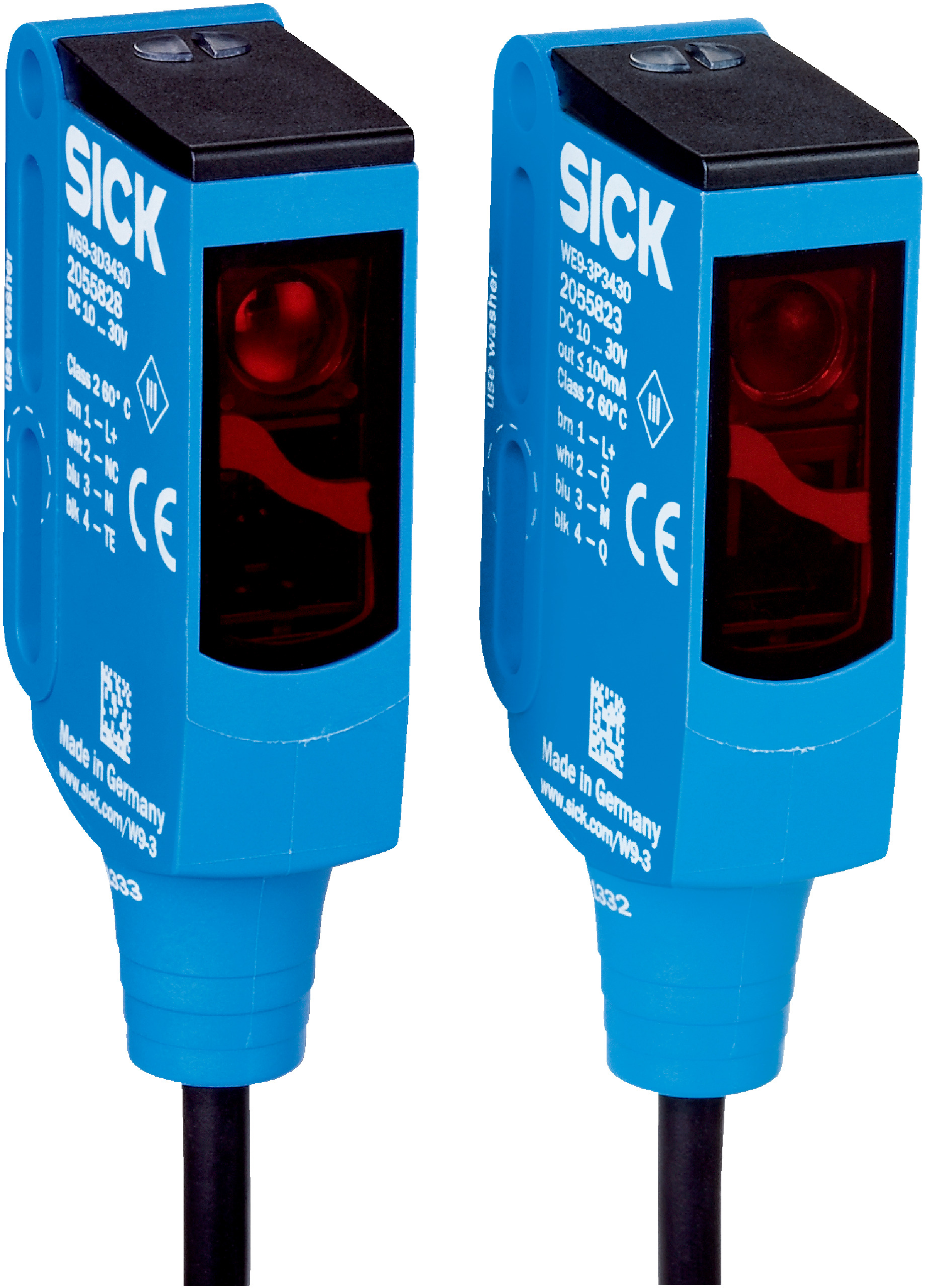

Through-Beam Photoelectric Sensor WSE9-3P3430 | IP66/IP67/IP69K Rated | 7m Sensing Range | Fast Response Time | by SICK
The WSE9-3P3430 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a robust IP66/IP67/IP69K rating and a sensing range of up to 7 meters. With a fast response time of under 0.5 ms and a complementary PNP output, it ensures reliable object detection and safety monitoring in manufacturing processes. Ideal for material handling and packaging systems, this sensor is built to withstand harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through-Beam Photoelectric Sensor WSE9-3P3430 | IP66/IP67/IP69K Rated | 7m Sensing Range | Fast Response Time | by SICK
Brand: SICK
SKU: 1049078
Alternatively Known As: Photoelectric sensor, Through-beam sensor, Industrial sensor, SICK sensor WSE9-3P3430
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Connection: Cable with M12 male connector, 4-pin, 120 mm
- Cable material: Plastic, PVC
- Conductor cross section: 0.14 mm²
- Circuit protection: Types A, B, C
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Ambient operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Weight: 80 g
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Light spot size at 1 m: Ø 25 mm
- Wave length: 650 nm
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 7 meters, max 10 meters
- Rectangular housing design with M3 mounting hole
- PinPoint LED light source with 650 nm wavelength
- Fast response time under 0.5 ms and switching frequency of 1000 Hz
- Complementary PNP output with light/dark switching mode
- Robust plastic housing (VISTAL®) and optics (PMMA)
- High protection rating IP66, IP67, IP69K for harsh environments
- Wide ambient operating temperature range from -40°C to +60°C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WSE9-3P3430 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
