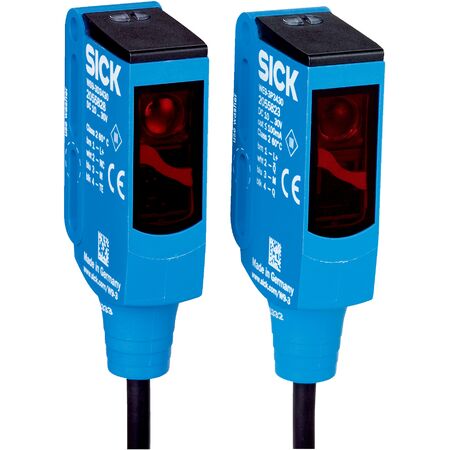

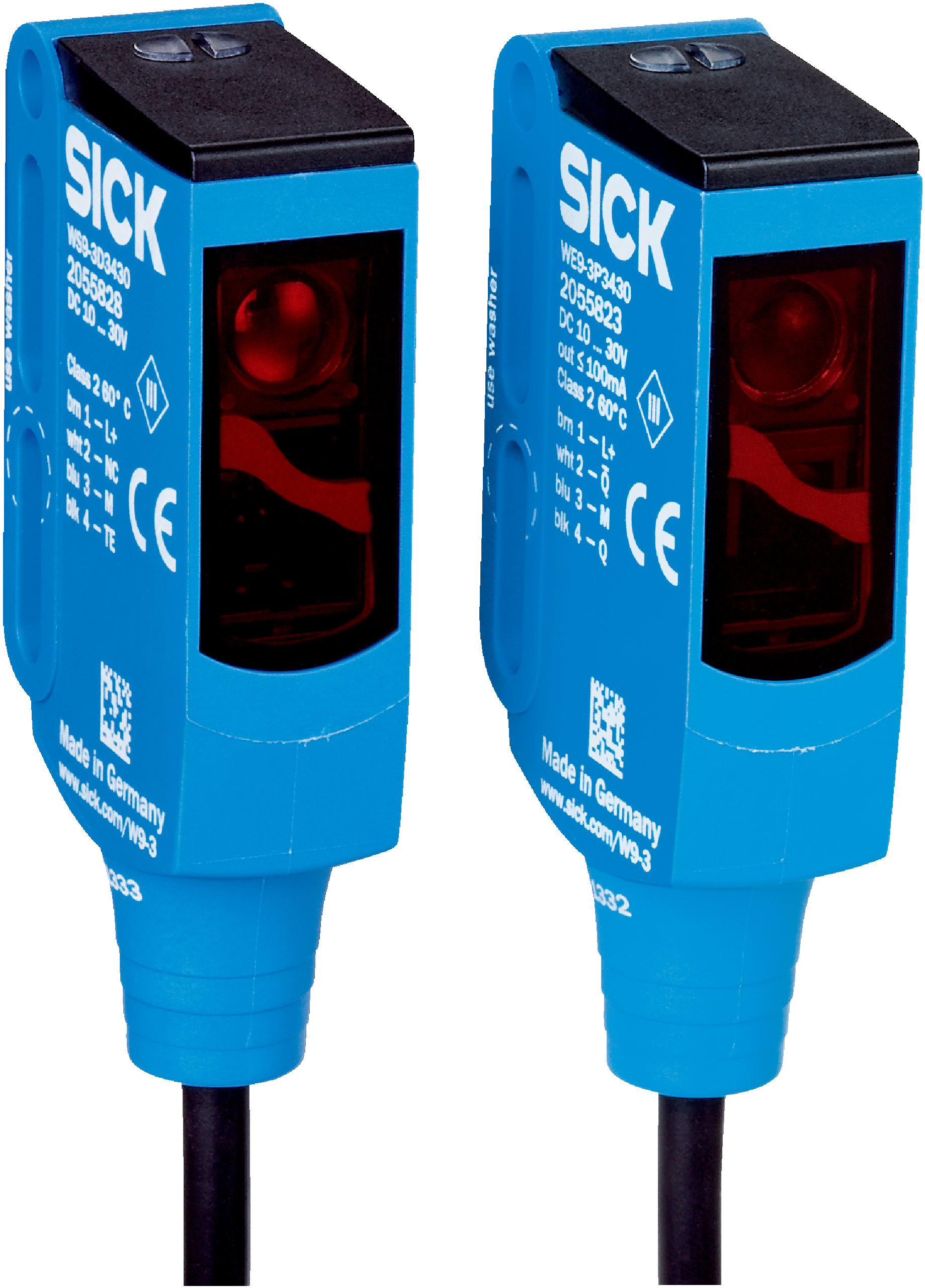

Through-Beam Photoelectric Sensor WSE9-3N1130 | IP66/IP67/IP69K Rated | 7m Sensing Range | Fast Response Time | by SICK
The WSE9-3N1130 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a robust design with IP66/IP67/IP69K ratings and a sensing range of up to 7 meters. With a fast response time of under 0.5 ms and a complementary NPN output, this sensor is perfect for object detection and safety monitoring in manufacturing processes, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through-Beam Photoelectric Sensor WSE9-3N1130 | IP66/IP67/IP69K Rated | 7m Sensing Range | Fast Response Time | by SICK
Brand: SICK
SKU: 1049079
Alternatively Known As: Photoelectric sensor, Through-beam sensor, Optical sensor, Industrial sensor, SICK sensor WSE9-3N1130
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN, complementary
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Connection: 4-wire cable, 2 m length, PVC insulation
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +75°C
- Light spot size at 1 m: Ø 25 mm
- Wave length: 650 nm
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 7 meters, max 10 meters
- Rectangular housing design with M3 mounting hole
- PinPoint LED light source with 650 nm wavelength
- Fast response time under 0.5 ms and switching frequency of 1000 Hz
- Complementary NPN output with light/dark switching mode
- Robust plastic housing (VISTAL®) and optics (PMMA)
- High protection rating IP66, IP67, IP69K for harsh environments
- Wide ambient operating temperature range from -40°C to +60°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WSE9-3N1130 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
